Hikvision DS-2XE6145G0-HS F2.8 (atspari sprogimams)

34,72€ / 60 mėn.

1.052,74€(Kaina be PVM)1.273,81€(Kaina su PVM)

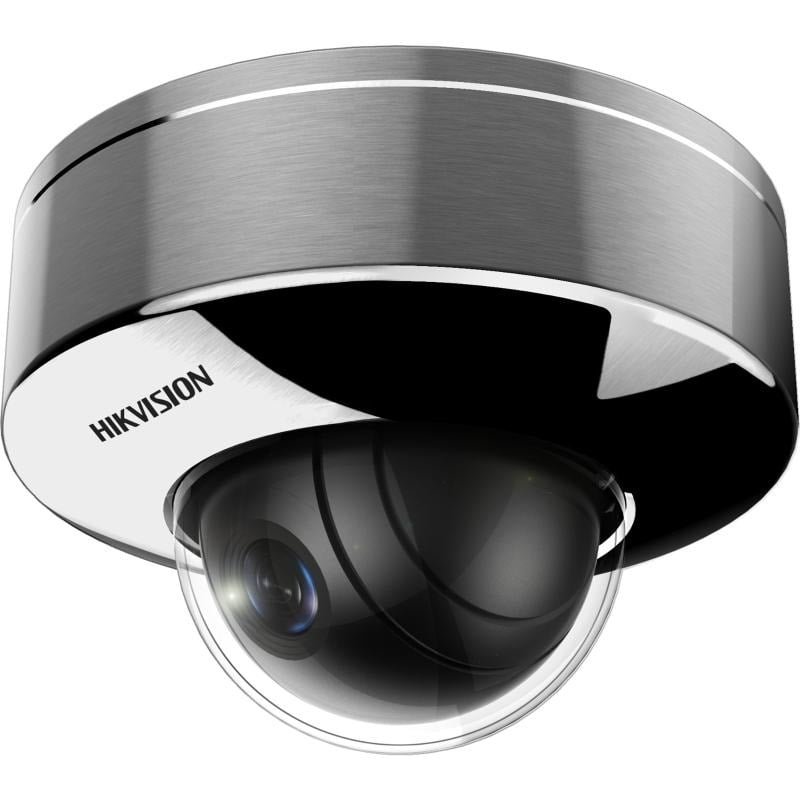

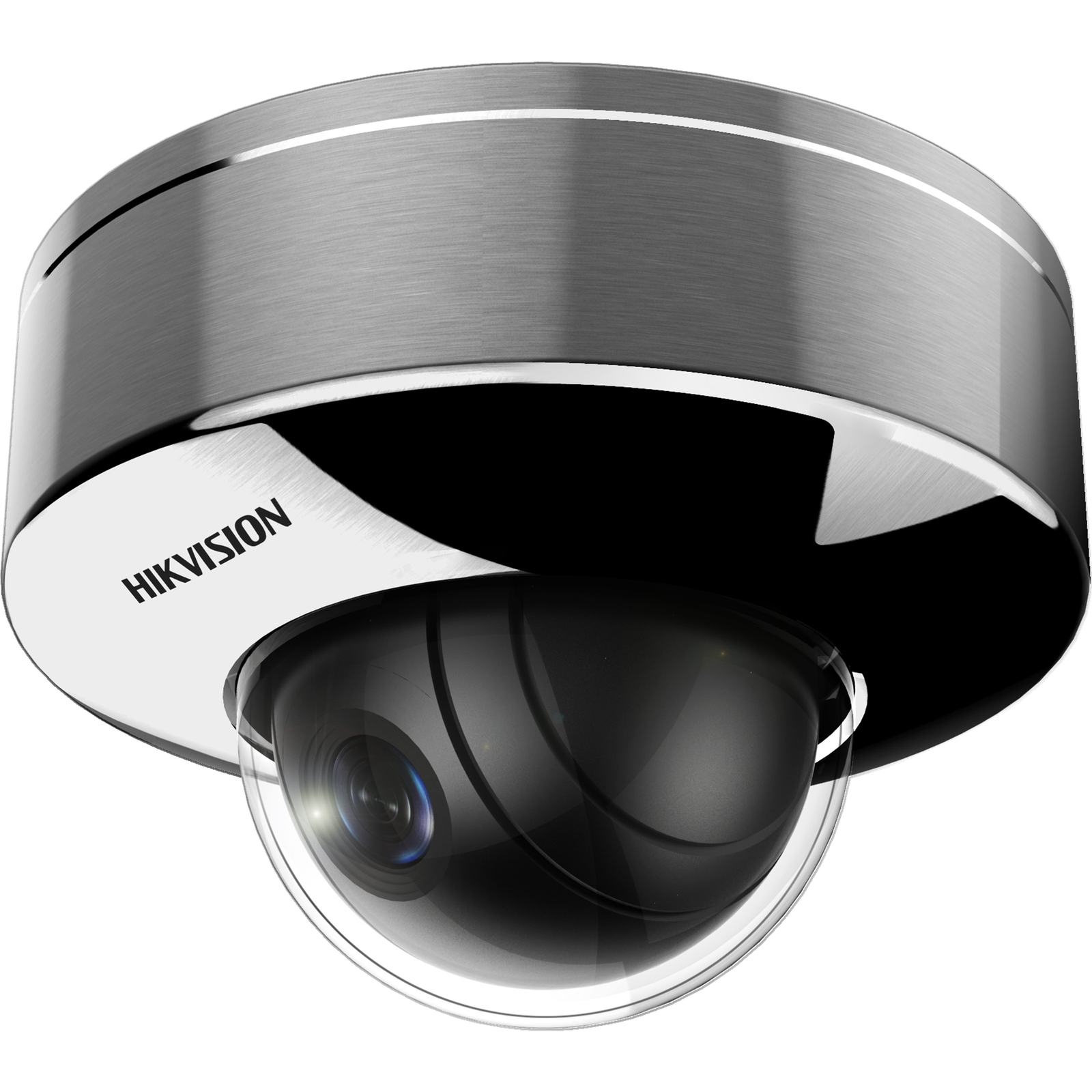

IP kamera DS-2XE6145G0-HS F2.8, DOME
Prekės ženklas: Hikvision
Atsparumas: atspari sprogimui
Rezoliucija: 4MP
Objektyvas: 2.8mm (102.5°)
WDR: 120dB WDR
Kompresija: H.265
Standartai: ATEX, IECEx
Atsparumas aplinkos sąlygoms: IP68, IK08
PoE: PoE
Mikro SD: iki 128GB

Neturime

Gamintojas: Hikvision SKU: KIP2XE6145G0HSF28

Lęšio tipas	Fixed focal length, 2.8 mm, 4 mm, and 6 mm optional
Focal Length & FOV	2.8 mm, horizontal FOV 102.5°, vertical FOV 53.4°, diagonal FOV 118.9°4 mm, horizontal FOV 80.2°, vertical FOV 40.8°, diagonal FOV 93.4°6 mm, horizontal FOV 52.5°, vertical FOV 27.4°, diagonal FOV 60.2°
Lęšio montavimas	M12
Diafragma	F1.0

DORI

2.8 mm, D: 54.6 m, O: 21.7 m, R: 10.9 m, I: 5.5 m4 mm, D: 85.4 m, O: 33.9 m, R: 17.1 m, I: 8.5 m6 mm, D: 128.0 m, O: 50.8 m, R: 25.6 m, I: 12.8 m

Pagrindinis srautas	50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Antrinis srautas	50 Hz: 25 fps (640 × 480, 640 × 360)60 Hz: 30 fps (640 × 480, 640 × 360)
Trečias srautas	50 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 1 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Vaizdo suspaudimas	Main stream: H.265+/H.265/H.264+/H.264Sub-stream: H.265/H.264/MJPEGThird stream: H.265/H.264
Vaizdo bitų greitis	32 Kbps to 8 Mbps
H.264 tipas	Baseline Profile/Main Profile/High Profile
H.265 tipas	Main Profile
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Region of Interest (ROI)	5 fixed regions for each stream
Tikslinis apkarpymas	Yes

Garso suspaudimas	G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
Garso bitų greitis	64 Kbps (G.711 ulaw/G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)/8 to 320 Kbps (MP3)
Garso atrankos dažnis	8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Pašalinių garsų šalinimas	Yes

Protokolai	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Tiesioginis vaizdo žiūrėjimas	Up to 6 channels
API	Open Network Video Interface, ISAPI, ISUP 5.0
User/Host	Up to 32 users3 levels: administrator, operator and user
Vidinė atmintis	NAS (NFS, SMB/CIFS), ANR
Klientas	iVMS-4200, Hik-Connect
Naršyklė	Plug-in required live view: IE10, IE11Local service: Chrome 57.0+, Firefox 52.0+

Nuotraukos parametrų keitiklis	Yes
Nuotraukos nustatymai	Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance adjustable by client software or web browser
Diena/Naktis režimas	Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)	120 dB
Nuotraukų pagražinimas	BLC, HLC, 3D DNR, defog

Interneto sąsaja	1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinė atmintis	Built-in memory card slot, support microSD/SDHC/SDXC card, up to 128 GB*You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.
Garso	1 input (line in), 1 output (line out)
Signalizacija	1 alarm input, 1 alarm output (supports max. 24 VDC, 1 A or 110 VAC, 500 mA)
RS-485	1 RS-485 interface

Pagrindinės funkcijos	Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Išmaniosios funkcijos	Line crossing detection, intrusion detection, region entrance detection, region exiting detectionScene change detection, unattended baggage detection, object removal detection

Maitinimas	12 VDC ± 20%, 0.8 A, max. 10 W, two-core terminal blockPoE: 802.3af, Class 3, 36 V to 57 V, 0.3 A to 0.2 A, max. 12.5 W
Medžiaga	SUS 304
Dydis	Ø138 mm × 123.4 mm (Ø5.43″ × 4.86″)
Pakuotės dydis	251 mm × 215 mm × 189 mm (9.88″ × 8.46″ × 7.44″)
Svoris	Approx. 2810 g (6.2 lb.)
Svoris su įpakavimu	Approx. 4040 g (8.9 lb.)
Darbo sąlygos	-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Kalba	33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Pagrindinės funkcijos	Anti-banding, heartbeat, mirror, privacy mask, password protection, watermark, IP address filter
Šildytuvas	Yes
Cable Length	1.3 m (4.27 ft.)

EMC	FCC: FCC-SDoC (ANSI C63.4, FCC Part15 sub B)CE: CE-EMC (EN 50130-4:2011+A1:2014, EN 55032:2015, EN 61000-3-2:2014, EN 61000-3-3:2013)RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3, AS/NZS CISPR 32:2015IC: IC-VoC (ICES-003 Issue 7:2020)KC: KN 301489-1, KN 301489-17, RRA NOTICE 2017-14 (2017.12.05), RRA NOTICE 2017-19 (2017.12.28)
Saugumas	UL: UL 62368-1: 2014, CAN/CSA C22.2 No. 62368:2014 CB: IEC 62368-1:2014 BIS: IS 13252 (Part 1) 2010+A1:2013+A2:2015LOA: SANS IEC60950-1
Aplinkosauga	CE: CE-RoHS (RoHS Directive 2011/65/EU+2015/863)
Apsauga	IP68 (IEC 60529-2013)
Explosion-Proof Protection	ATEX: II 2G Ex db IIC T6 Gb/ II 2D Ex tb IIIC T80°C Db IP68IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80°C Db IP68For explosive gas atmospheres, the maximum surface temperature is 85°C;For flammable dust atmospheres, the maximum surface temperature is 80°C;IIC: for explosive gas atmospheres other than mines susceptible to firedamp;For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.

Gamintojas	Hikvision
