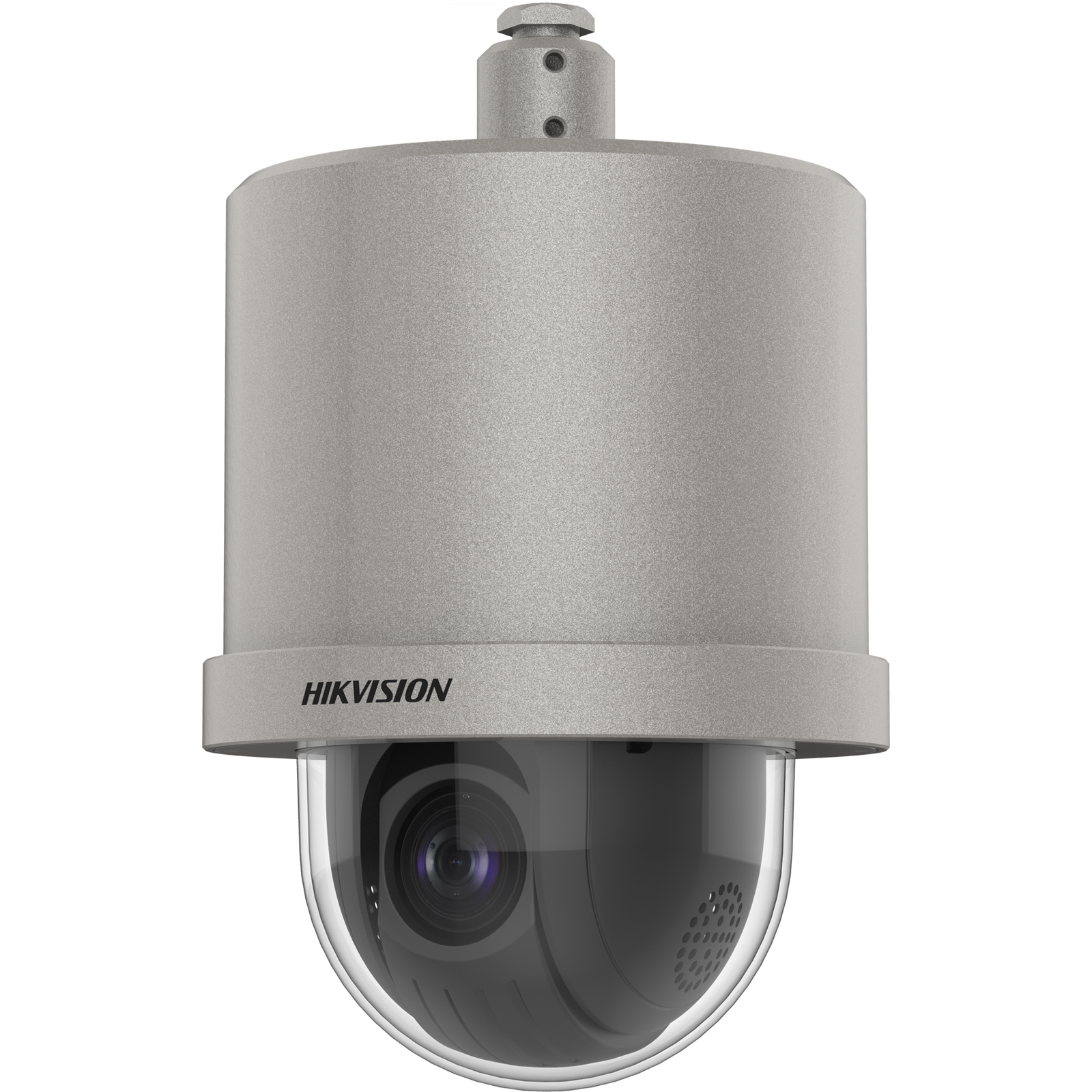

Hikvision DS-2DF6C431-CX(T5/316L) (atspari sprogimams)

Preliminari mėnesinė įmoka nuo 215,94€ / 60 mėn.

7.248,04€(Kaina be PVM)8.770,13€(Kaina su PVM)

4MP kamera
1/1.8″ progressive scan CMOS
31× optinis priartinimas, židinio nuotolis nuo 5.9 mm iki 182.9 mm
H.265+/H.265
IP68
120dB WDR

Liko tik 1

Gamintojas: Hikvision SKU: KIPDS2DF6C431CXT5316

Sensorius	1/1.8″ progressive scan CMOS
Maks. rezoliucija	2560 × 1440
Min. apšvietimas	Color: 0.005 Lux @ (F1.5, AGC ON) B/W: 0.001 Lux @ (F1.5, AGC ON)
Užrakto greitis	1/1 s to 1/30,000 s
Day & Night	IR Cut Filter
Priartinimas	31 × optical, 16 × digital
Lėtas užraktas	yes

FOV	5.9 mm to 182.9 mm, 31 × optical zoom
FOV	Horizontal field of view: 60.2° to 2.5° (wide-tele) Vertical field of view: 35.2° to 1.3° (wide-tele) Diagonal field of view: 67.4° to 2.7° (wide-tele)
Fokusavimas	semi-auto,manual,auto
Diafragama	F1.5
Priartinimo greitis	Approx. 7 s (Optical Lens, Wide-Tele)

Movement Range (Pan)	360° endless
Movement Range (Tilt)	From 0° to 90° (Auto Flip)
Pan greitis	Configurable, from 0.1°/s to 300°/s, preset speed: 540°/s
Tilt greitis	Configurable, from 0.1°/s to 240°/s, Preset Speed: 400°/s
Proporcingas Pan	yes
Iš anksto išsaugoti nustatymai	300
Išsaugotų nustatymų sustabdymas	yes
Patruliavimas	8 patrols, up to 32 presets for each patrol
Išsaugotų rėžimų skenavimas	4 pattern scans, record time over 10 minutes for each scan
Park Action	Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
3D pozicija	yes
PTZ būsenos vaizdavimas	yes
Užduočių grafikas	Preset,pattern scan,patrol scan,auto scan,tilt scan,random scan,frame scan,panorama scan,dome reboot,dome adjust,aux output
Išjungimo atmintis	yes

Pagrindinis srautas	50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Antrinis srautas	50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Trečias srautas	50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Vaizdo bitų greitis	32 kbps to 16384 kbps
H.264 tipas	Baseline profile,Main profile,High profile
H.265 tipas	main profile
Scalable Video Coding (SVC)	yes
Region of Interest (ROI)	yes
Tikslinis apkarpymas	no

Garso suspaudimas	G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Garso bitų greitis	G.722.1: 16Kbps,G.711ulaw: 64 kbps, G.711alaw: 64 kbps, MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps
Garso atrankos dažnis	MP2L2: 16kHz, 32kHz, 48kHz,PCM: 8kHz, 16kHz,32kHz, 48kHz
Pašalinių garsų šalinimas	yes

Protokolai	IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Tiesioginis vaizdo žiūrėjimas	Up to 20 channels
API	Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
User/Host	Up to 32 users. 3 levels: Administrator, Operator and User
Saugumas	User authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
Vidinė atmintis	NAS (NFS, SMB/CIFS),auto network replenishment (ANR)
Klientas	iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Naršyklė	IE11, Chrome 57.0+, Firefox 52.0+, Safari 11+

Nuotraukos parametrų keitiklis	yes
Nuotraukos nustatymai	saturation, brightness, sharpness, contrast
Diena/Naktis režimas	auto
Wide Dynamic Range (WDR)	120 dB
SNR	＞52dB
Rūko šalinimas	yes
Nuotraukų pagražinimas	HLC/BLC/3D DNR/EIS/Regional Exposure/Regional Focus
Privatumo kaukė	up to 24 masks

Interneto sąsaja	RJ45, self-adaptive 10M/100M Ethernet port
Saugyklos vieta	support microSD/microSDHC/microSDXC cards, up to 256 GB
Garsas	1-ch audio input and 1-ch audio output
Signalizacija	7-ch alarm input and 2-ch alarm output
RS-485	HIKVISION, Pelco-P, Pelco-D, self-adaptive

Pagrindinės funkcijos	Motion detection,video tampering alarm,alarm input and output,exception (IP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot)
Išmaniosios funkcijos	intrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
Sąsaja	Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
Išmani jungtis	manual tracking,event tracking

Veido atpažinimas

1. Detects up to 10 faces simultaneously

2. Uploads face with background and closed-up face pictures

3. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face

Veidų palyginimas

Recognizes face identity via face modeling, grading and comparing to those in face library

Sistemos parametrai	100 VAC to 240 VAC, Max.: 60 W
Dydis	Φ 255 mm × 405 mm（Φ 10″ × 15.9″)
Svoris	13.2 kg (29.11 lb.)
Medžiaga	SUS316L with anti-corrosion surface spray treatment
Darbo sąlygos	Temperature: -40°C to 60°C (-40°F to 140°F)，Humidity: ≤ 95%
Pagrindinės funkcijos	mirror,password protection,watermark,IP address filter

EMC	FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Saugumas	UL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252 (Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
Apsauga	IP68, 4000V Lightning Protection, Surge Protection and Voltage Transient Protection
Atsparumas sprogimams	ATEX: Ex II 2GD Ex db IIC T6 Gb /Ex tb IIIC T80℃ Db; IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80℃ Db
