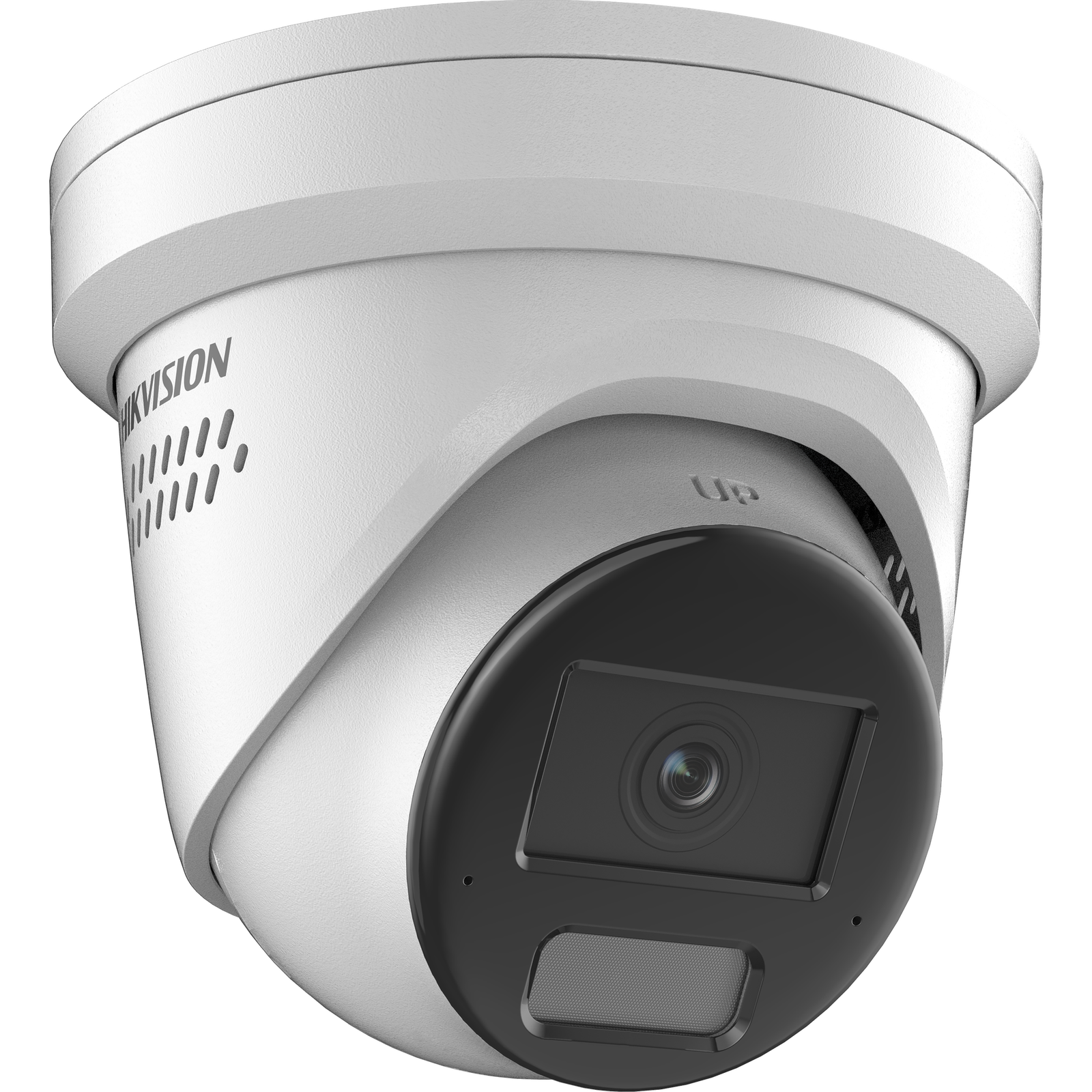

Hikvision DS-2CD2366G2H-IS2U/SRB F2.8 (DarkFighter, AcuSense)

Name: Hikvision DS-2CD2366G2H-IS2U/SRB F2.8 (DarkFighter, AcuSense)
SKU: KIP2366G2HIS2USRBF28
Availability: BackOrder

12,12€ / 36 mėn.

257,57€(Kaina be PVM)311,66€(Kaina su PVM) su PVM

Gamintojas: Hikvision SKU: KIP2366G2HIS2USRBF28

Lęšis
Lęšio tipasFixed focal lens, 2.8 and 4 mm optional
Focal Length & FOV2.8 mm, horizontal FOV 115°, vertical FOV 60°, diagonal FOV 144°4 mm, horizontal FOV 94°, vertical FOV 50°, diagonal FOV 112°
Lęšio montavimasM12
Rainelės tipasFixed
DiafragmaF1.0
Ryškumo gylis2.8 mm: 1.7 m to ∞4 mm: 2.2 m to ∞

DORI
DORI2.8 mm: D: 64 m, O: 25 m, R: 12 m, I: 6 m4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7 m

Vaizdas
Pagrindinis srautas50 Hz:25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz:30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Antrinis srautas50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Trečias srautas50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
Vaizdo suspaudimasMain stream: H.265/H.264/H.264+/H.265+,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,*Third stream is supported under certain settings.
Vaizdo bitų greitis32 Kbps to 16 Mbps
H.264 tipasBaseline Profile,Main Profile,High Profile
H.265 tipasMain Profile
Bitų greičio kontrolėCBR,VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)1 fixed region for main stream and sub-stream

Garso
Garso suspaudimasG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Garso tipasMono sound
Garso bitų greitis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Garso atrankos dažnis8 kHz/16 kHz/32 kHz/48 kHz
Pašalinių garsų šalinimasYes

Tinklas
ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
Tiesioginis vaizdo žiūrėjimasUp to 6 channels
APIONVIF (Profile S, Profile T, Profile G),ISAPI,SDK,ISUP
User/HostUp to 32 users3 user levels: administrator, operator, and user
SaugumasPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Vidinė atmintisNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
KlientasiVMS-4200,Hik-Connect
NaršyklėPlug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Nuotrauka
Nuotraukos parametrų keitiklisYes
Nuotraukos nustatymaiRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Diena/Naktis režimasDay,Night,Auto,Schedule
Nuotraukų pagražinimasBLC,HLC,3D DNR,Defog
SNR≥ 52 dB
Wide Dynamic Range (WDR)120 dB
Privatumo kaukė4 programmable polygon privacy masks

Sąsaja
Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinė atmintisBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Įmontuotas mikrofonasYes, 2 built-in microphones
Įmontuotas garsiakalbisMax. power consumption: 2 W, max. sound pressure level: 10 cm: 105 dB.
Garso1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Signalizacija1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Perkrovimo mygtukasYes

Funkcijos
Pagrindinės funkcijosMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
SąsajaUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,strobe light
Išmaniosios funkcijosScene change detection

Išmaniosios funkcijos
Veido atpažinimasYes
Perimetro apsaugaLine crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)

Pagrindinis
Maitinimas12 VDC ± 25%, 1.34 A, max. 16 W,Ø5.5 mm coaxial power plug,reverse polarity protection,PoE: IEEE 802.3at, Class 4, max. 18 W
MedžiagaCover: metal, main body: metal
DydisØ138.3 mm × 115.4 mm (Ø5.4″ × 4.5″)
Pakuotės dydis170 mm × 170 mm × 160 mm (6.7″ × 6.7″ × 6.3″)
SvorisApprox. 780 g (1.71 lb.)
Svoris su įpakavimuApprox. 1210 g (2.67 lb.)
Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Pagrindinės funkcijosHeartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Flashing Light/SRB model: Red and Blue Light/SL model: White Light

Patvirtinimai
EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
SaugumasUL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017
AplinkosaugaCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
ApsaugaIP67: IEC 60529-2013

Svoris	0,83 kg
Gamintojas	Hikvision
