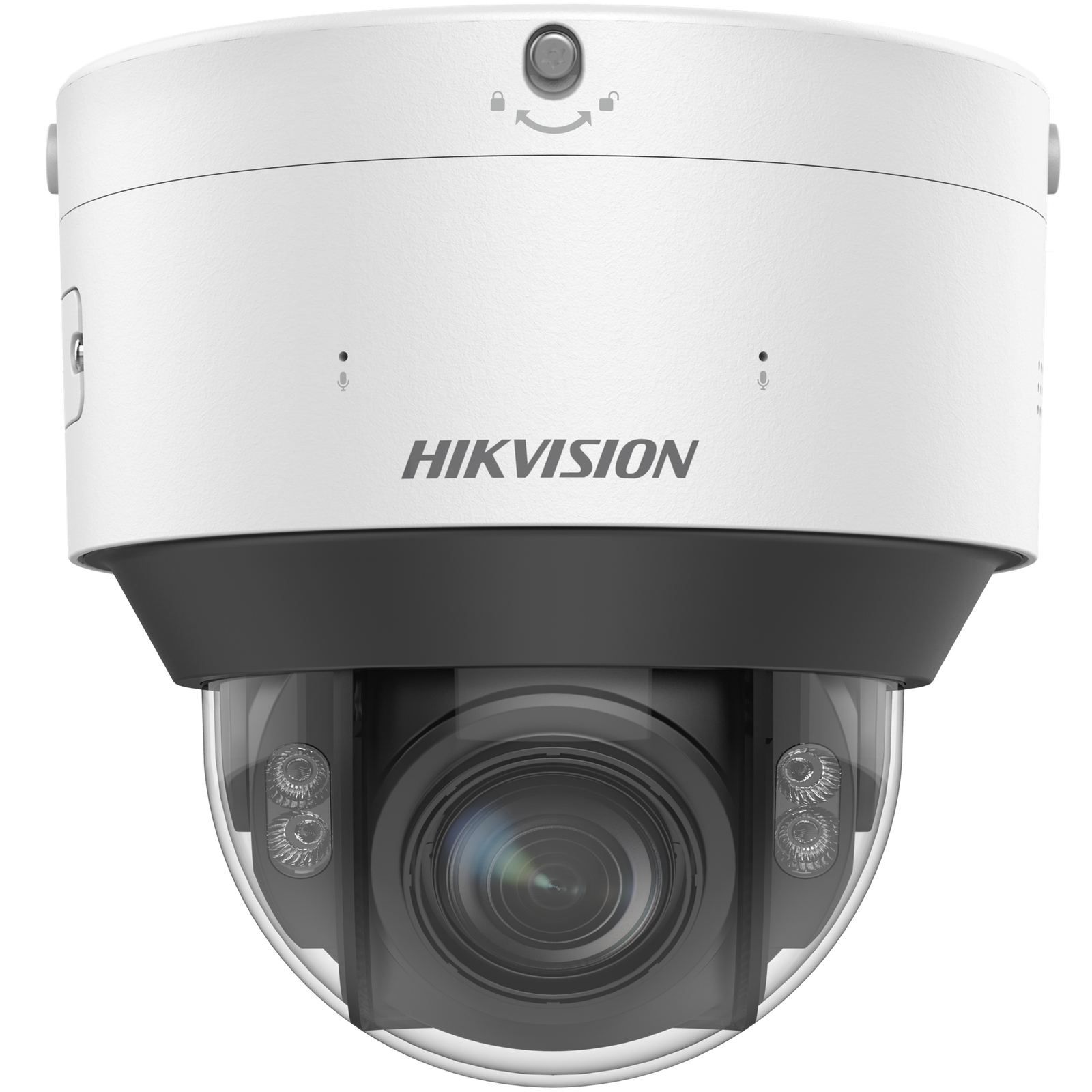

Hikvision dome iDS-2CD7547G0/P-XZHS F2.8-12
35,67€ / 60 mėn.
1.080,91€(Kaina be PVM)1.307,90€(Kaina su PVM)
| 4MP kamera | |
| ColorVu technologija | |
| H.265+ suspaudimo technologija | |
| 140dB WDR | |
| 5 srautai, tinkantys įvairioms programoms | |
| IP67, IK10 |
Liko tik 1. Reikia daugiau? Susisiekite su mumis.
Kamera
| Sensorius | 1/1.8″ Progressive Scan CMOS |
| Maks. rezoliucija | 2688 × 1520 |
| Min. apšvietimas | Color: 0.0003 Lux @ (F1.0, AGC ON),B/W: 0.0001 Lux @ (F1.0, AGC ON),0 Lux with light |
| Užrakto greitis | 1 s to 1/100,000 s |
| Day & Night | IR cut filter Blue glass module to reduce ghost phenomenon |
| Kampo keitimas | Pan: 0° to 355°, tilt: 0° to 85°, rotate: 0° to 355° |
Lęšis
| Focal Length & FOV | 2.8 to 12 mm, horizontal FOV 104.2° to 44.1°, vertical FOV 55.3° to 24.8°, diagonal FOV 126.8° to 51.1° |
| Fokusavimas | Auto, semi-auto, manual |
| Rainelės tipas | P-iris |
| Diafragama | F1.0 to F1.2 |
DORI
| DORI | Wide: D: 63.4 m, O: 25.2 m, R: 12.7 m, I: 6.3 m Tele: D: 140.7 m, O: 55.8 m, R: 28.1 m, I: 14.1 m |
Apšvietimas
| IR bangos ilgis | 850 nm |
| Išmanus papildomas apšvietimas | Yes |
| Papildomo apšvietimo diapazonas | 2.8 to 12 mm: 30 m |
| Papildomo apšviešimo tipas | Hybrid (IR and White Light) |
Vaizdas
| Pagrindinis srautas | 50 Hz: 50 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 60 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720) |
| Antrinis srautas | 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) |
| Trečias srautas | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) |
| Ketvirtas srautas | 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) |
| Penktasis srautas | 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) |
| Vaizdo suspaudimas | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG, Fifth stream: H.265/H.264/MJPEG |
| Vaizdo bitų greitis | 32 Kbps to 8 Mbps |
| H.264 tipas | Baseline Profile,Main Profile,High Profile |
| H.265 tipas | Main Profile |
| Bitų greičio kontrolė | CBR,VBR |
| Tikslinis apkarpymas | Yes |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 4 fixed region(s) for each stream |
Garsas
| Garso bitų greitis | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Garso suspaudimas | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Garso atrankos dažnis | 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz |
| Garso tipas | Mono sound |
| Pašalinių garsų šalinimas | Yes |
Internetas
| Protokolai | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets |
| Tiesioginis vaizdo žiūrėjimas | Up to 20 channels |
| API | ONVIF, ISAPI, SDK, ISUP |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Saugumas | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3 |
| Vidinė atmintis | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Klientas | iVMS-4200, Hik-Connect |
| Naršyklė | Plug-in required live view: IE 10, IE11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+ |
Nuotrauka
| Nuotraukos parametrų keitiklis | Yes |
| Nuotraukos nustatymai | Saturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser |
| Diena/Naktis režimas | Day,Night,Auto,Schedule,Alarm Trigger,Video Trigger |
| Wide Dynamic Range (WDR) | 140 dB |
| Privatumo kaukė | 8 programmable polygon privacy masks, mask color or mosaic configurable |
| SNR | ≥ 52 dB |
| Nuotraukų pagražinimas | BLC,HLC,3D DNR,Defog, EIS |
| Nuotraukos perdanga | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format. |
Sąsaja
| Vaizdo išvestis | 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging) |
| Interneto sąsaja | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port |
| Vidinė atmintis | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB |
| Garsas | 1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound |
| Įmontuotas mikrofonas | Yes, 2 built-in microphones |
| Signalizacija | 1 input, 1 output (max. 24 VDC, 1 A) |
| Įmontuotas garsiakalbis | Max. power consumption: 1.5 W, max. sound pressure level: 98 dB, speaker range: 10 m |
| RS-485 | 1 RS-485 (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) |
| Perkrovimo mygtukas | Yes |
| Galia | 12 VDC, max. 100 mA |
| Wiegand | 1 Wiegand (CardID 26bit,SHA-1 26bit,Hik 34bit, NEWG 72 bit) |
Funkcijos
| Pagrindinės funckcijos | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, abnormal reboot, HDD full, HDD error), video quality diagnosis, vibration detection |
| Išmaniosios funkcijos | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, audio exception detection, scene change detection, defocus detection |
| Sąsaja | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning |
Išmaniosios funkcijos
| Meta duomenys | Intrusion detection,line crossing detection,region entrance detection,region exiting detection,road traffic |
| Kelių eismo ir transporto priemonių aptikimas |
Blocklist and allowlist: up to 10000 records Support license plate recognition of motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.) License plate recognition rate ≥98% |
Pagrindinis
| Sistemos parametrai | 12 VDC ± 20%, 2.01 A, max. 24.01 W, three-core terminal block; 24 VAC ± 20%, 1.51 A, max. 24.01 W, three-core terminal block; PoE: 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.60 A to 0.44 A, max. 25.43 W |
| Medžiaga | Aluminum alloy body |
| Dydis | Ø160 × 159.5 mm (Ø6.3″ × 6.3″) |
| Pakuotės dydis | 251 × 215 × 189 mm (9.9″ × 8.5″ × 7.4″) |
| Svoris | Approx. 2100 g (4.62 lb.) |
| Svoris su įpakavimu | Approx. 2850 g (6.28 lb.) |
| Darbo sąlygos | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Sandėliavimo sąlygos | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Kalba | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Pagrindinės funkcijos | Heartbeat,anti-banding,one-key reset,mirror,password protection,privacy mask, watermark, IP address filter, flash log, control timeout |
| Šildytuvas | Yes |
| Rasos šalinimas | Yes |
Patvirtinimai
| EMC | FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 |
| Saugumas | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1 |
| Aplinkosauga | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Apsauga | IP67: IEC 60529-2013,IK10: IEC 62262:2002 |
| Apsauga nuo korozijos | -Y model: NEMA 4X (NEMA 250-2018) |
| Automatika | EN50121-4 |
| Kita | PVC FREE |
| Svoris | 2,302 kg |
|---|---|
