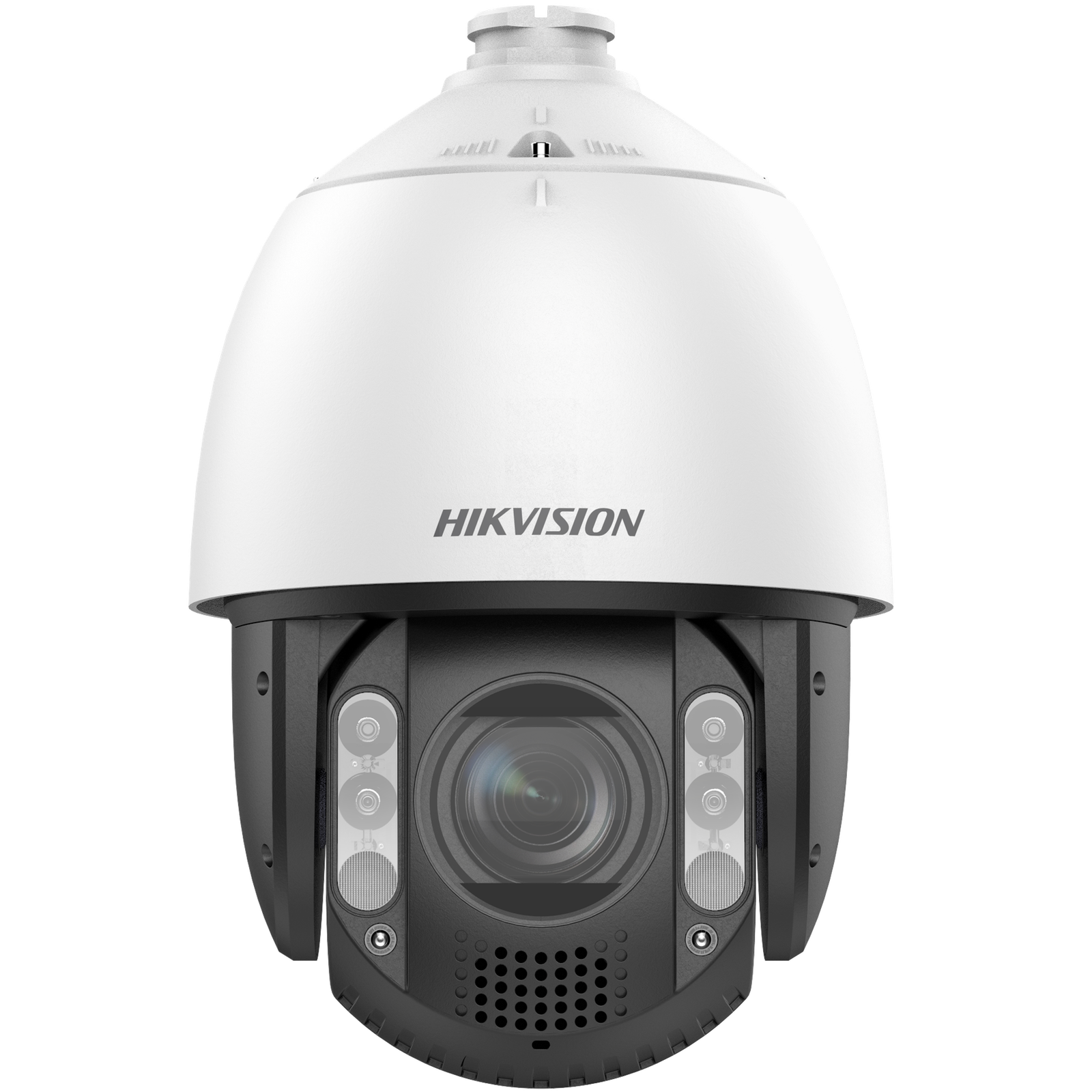

Hikvision dome DS-2DE7A812MCG-EB (8 MP, ColorVu + AcuSense, x12 ZOOM)
Preliminari mėnesinė įmoka nuo 58,60€ / 60 mėn.
1.768,71€(Kaina be PVM)2.140,14€(Kaina su PVM)
| IP kamera DS-2DE7A812MCG-EB | |
| Gamintojas: Hikvision | |
| Tipas: SPEED DOME | |
| 12x ZOOM (53°-8,1°) | |
| Raiška: 8MP | |
| Technologijos: ColorVu + AcuSense | |
| Funkcija: Automatinis sekimas 2.0 | |
| IR pašvietimas iki 150m | |
| Baltas pašvietimas iki 100m | |
| Maitinimas: 24 VAC, Hi-PoE | |
| Atsparumo klasė: IP66 | |
| Suderinama su mikroSD iki 256GB | |
| Laikiklis: DS-1604ZJ |
Neturime
Kamera
| Sensorius | 1/1.8″ progressive scan CMOS |
| Maks. rezoliucija | 3840 × 2160 |
| Min. apšvietimas | Color: 0.0005Lux @ (F1.2, AGC ON), B/W:0.0001Lux @ (F1.2, AGC ON), 0 lux with light |
| Užrakto greitis | 1/1 s to 1/30000 s |
| Day & Night | IR cut filter |
| Priartinimas | 12 × optical, 64 × digital |
| Lėtas užraktas | Yes |
Lęšis
| FOV | 6.7 mm to 80.4 mm |
| FOV | Horizontal field of view: 53° to 8.1° (wide-tele), Vertical field of view: 31.3° to 4.6° (wide-tele), Diagonal field of view:59.6° to 9.3° (wide-tele) |
| Fokusavimas | Auto, semi-auto, manual |
| Diafragama | Max. F1.2 |
| Priartinimo greitis | Approx. 5.8 s |
Apšvietimas
| Papildomo apšviešimo tipas | Hybrid (IR and White Light) |
| Papildomo apšvietimo diapazonas | White light: up to 100 m IR: up to 150 m |
PTZ
| Movement Range (Pan) | 360° |
| Movement Range (Tilt) | -15° to 90° (auto flip) |
| Pan greitis | Pan speed: configurable from 0.1° to 160°/s; preset speed: 240°/s |
| Tilt greitis | Tilt speed: configurable from 0.1° to 120°/s, preset speed 200°/s |
| Proporcingas Pan | Yes |
| Iš anksto išsaugoti nustatymai | 300 |
| Išsaugotų nustatymų sustabdymas | Yes |
| Patruliavimas | 8 patrols, up to 32 presets for each patrol |
| Išsaugotų rėžimų skenavimas | 4 pattern scans |
| Park Action | Preset, pattern scan, auto scan, tilt scan, random scan, frame scan, panorama scan, patrol scan |
| 3D pozicija | Yes |
| PTZ būsenos vaizdavimas | Yes |
| Užduočių grafikas | Preset, pattern scan, patrol scan, auto scan, tilt scan, random scan, frame scan, panorama scan, dome reboot, dome adjust, aux output |
| Išjungimo atmintis | Yes |
Vaizdas
| Pagrindinis srautas | 50 Hz: 25 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 24 fps (3840 × 2160, 2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720) |
| Antrinis srautas | 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 24 fps (704 × 480, 640 × 480, 352 × 240) |
| Trečias srautas | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60 Hz: 24 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Vaizdo suspaudimas | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG |
| Vaizdo bitų greitis | 32 kbps to 16384 kbps |
| H.264 tipas | Baseline Profile/Main Profile/High Profile |
| H.265 tipas | Main Profile |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 8 fixed regions for each stream |
Garsas
| Garso suspaudimas | G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC-LC, PCM |
| Garso bitų greitis | 64 Kbps (G.711),16 Kbps (G.722.1),16 Kbps (G.726),32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC),8 to 320 Kbps (MP3) |
| Garso atrankos dažnis | MP2L2: 16kHz, 32kHz, 48kHz,AAC-LC: 16kHz, 32kHz, 48kHz,PCM: 8kHz, 16kHz, 32kHz, 48kHz,MP3: 8kHz, 16kHz, 32kHz, 48kHz |
| Pašalinių garsų šalinimas | Yes |
Internetas
| Protokolai | IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, WebSocket, WebSockets |
| Tiesioginis vaizdo žiūrėjimas | Up to 20 channels |
| API | ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
| User/Host | Up to 32 users, 3 user levels: administrator, operator, and user |
| Saugumas | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address) |
| Vidinė atmintis | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Klientas | iVMS-4200, HikCentral Pro, Hik-Connect |
| Naršyklė | IE11, Chrome 80+, Firefox 80+, Safari 13+, Edge 89+ |
Nuotrauka
| Nuotraukos nustatymai | Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser |
| Diena/Naktis režimas | Day, Night, Auto, Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | > 52 dB |
| Rūko šalinimas | Digital defog |
| Vaizdo stabilizavimas | EIS |
| Nuotraukų pagražinimas | BLC, HLC, 3D DNR |
| Privatumo kaukė | 24 programmable polygon privacy masks, mask color or mosaic configurable |
| Regioninis fokusavimas | Yes |
| Regioninė ekspozicija | Yes |
Sąsaja
| Interneto sąsaja | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Saugyklos vieta | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Įmontuotas garsiakalbis | 1 built-in speaker with effective distance reaching max. 30 meters |
| Garsas | 1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 kΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω |
| Signalizacija | 2 inputs, 1 output |
| Perkrovimas | Yes |
Funkcijos
| Pagrindinės funkcijos | Motion detection, video tampering alarm, exception, alarm input and output |
| Išmaniosios funkcijos | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection |
| Sąsaja | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, audible warning, white light flashing, and PTZ actions (such as preset, patrol scan, pattern scan) |
| Išmanus sekimas | Manual tracking, auto-tracking |
Išmaniosios funkcijos
| Veido atpažinimas | Detects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and output the best face picture of the face |
Pagrindinis
| Sistemos parametrai | 24 VAC, max. 42 W (including max. 12 W for IR and max. 2 W for heater) Hi-PoE |
| Dydis | Ø 220 mm × 357.3 mm (Ø8.66″ × 14.07″) |
| Svoris | Approx. 5.5 kg (12.13 lb.) |
| Medžiaga | ADC12 |
| Darbo sąlygos | -30 °C to 65 °C (-22 °F to 149 °F). Humidity 90% or less (non-condensing) |
| Rasos šalinimas | Yes |
Patvirtinimai
| EMC | CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014),RCM (AS/NZS CISPR 32: 2015),IC (ICES-003: Issue 7),KC (KN 32: 2015, KN 35: 2015) |
| Saugumas | UL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252 (Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1) |
| Aplinkosauga | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Apsauga | IP66 (IEC 60529-2013), IK10 (excluding glass window), TVS 6000V lightning protection, surge protection and voltage transient protection |
