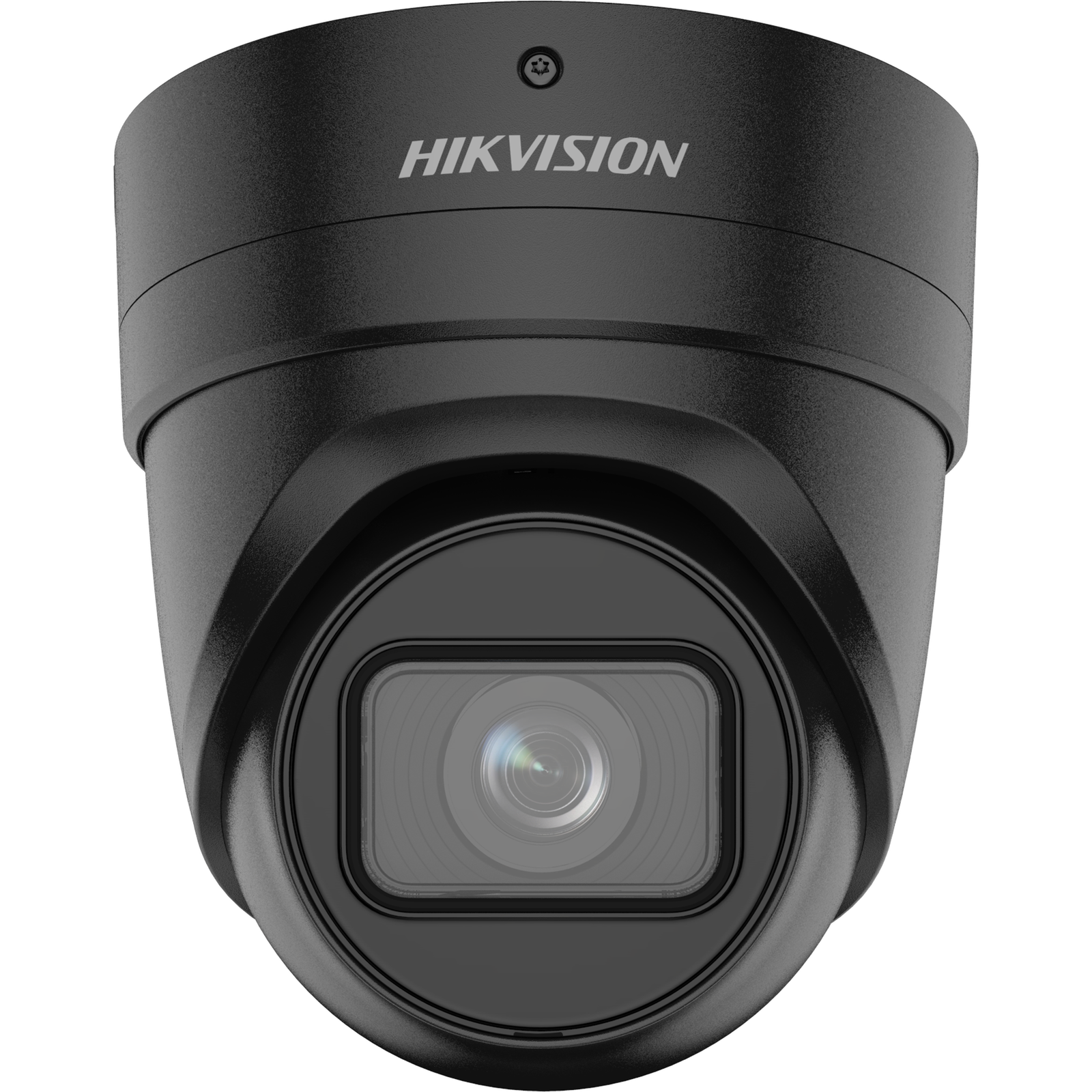

Hikvision dome DS-2CD2H46G2-IZS(C) (Juoda, 4 MP, 40 m. IR, AcuSense)

Preliminari mėnesinė įmoka nuo 15,20€ / 48 mėn.

370,40€(Kaina be PVM)448,18€(Kaina su PVM)

Tipas: IP Dome kamera
Prekės ženklas: Hikvision
Modelis: DS-2CD2H46G2-IZS(C)
Spalva: Juoda
Technologija: AcuSense, Powered-by-DarkFighter
Raiška: 4 MP
Objektyvas: 2.8–12 mm (~108°–30°)
IR apšvietimas: iki 40 m
WDR: 120 dB
Vaizdo suspaudimas: H.265+
Atmintis: microSD iki 256 GB
Apsaugos klasė: IP66, IK10

Neturime

Gamintojas: Hikvision SKU: KIPDS2CD2H46G2IZSCJ

Sensorius	1/3″ Progressive Scan CMOS
Maks. rezoliucija	2688 × 1520
Min. apšvietimas	Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
Užrakto greitis	1/3 s to 1/100,000 s
Diena & Naktis	IR cut filter
Kampo keitimas	Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 360°

Lęšio tipas	Varifocal lens, motor-driven lens, 2.8 to 12 mm
FOV	2.8 to 12 mm, horizontal FOV 108° to 30°, vertical FOV 56° to 17°, diagonal FOV 131° to 35°
Lęšio montavimas	Ø14
Rainelės tipas	Fixed
Diafragama	F1.4

DORI

2.8 to 12 mm:

Wide: D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m

Tele: D: 190 m, O: 75.4 m, R: 38.0 m, I: 19.0 m

Papildomo apšviešimo tipas	IR
Papildomo apšvietimo diapazonas	Up to 40 m
Išmanus papildomas apšvietimas	Yes
IR bangos ilgis	850 nm

Pagrindinis srautas	50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Antrinis srautas	50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Trečias srautas	50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
Vaizdo suspaudimas	Main stream: H.265/H.264/H.265+/H.264+ Sub-sstream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings.
Vaizdo bitų greitis	32 Kbps to 8 Mbps
H.264 tipas	Baseline Profile/Main Profile/High Profile
H.265 tipas	Main Profile
Bitų greičio kontrolė	CBR/VBR
SVC	H.264 and H.265 encoding
ROI	1 fixed region for main stream and sub-stream

Garso tipas	Mono sound
Garso suspaudimas	G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Garso bitų greitis	64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
Garso atrankos dažnis	8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Pašalinių garsų šalinimas	Yes

Protokolai	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
Tiesioginis vaizdo žiūrėjimas	Up to 6 channels
API	Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
User/Host	Up to 32 users. 3 user levels: administrator, operator and user
Saugumas	Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Vidinė atmintis	MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported
Klientas	iVMS-4200, Hik-Connect, Hik-Central
Naršyklė	Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+

Nuotraukos parametrų keitiklis	Yes
Nuotraukos nustatymai	Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Diena/Naktis režimas	Day, Night, Auto, Schedule
WDR	120 dB
SNR	≥ 52 dB
Nuotraukų pagražinimas	BLC, HLC, 3D DNR

Interneto sąsaja	1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinė atmintis	Built-in micro SD slot, up to 256 GB
Garsas	1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Signalizacija	1 input, 1 output (max. 24 VDC/24 VAC, 500 mA)
Perkrovimo mygtukas	Yes

Pagrindinės funckcijos

Motion detection (human and vehicle targets classification), video tampering alarm, exception

Išmaniosios funkcijos

Line crossing detection, intrusion detection, region entrance detection, region exiting detection

Scene change detection

Sąsaja

Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, audible warning

Veido atpažinimas

Sistemos parametrai	12 VDC ± 25%, 0.92 A, max. 11 W, two-core terminal block, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
Dydis	Ø135.8 mm × 145.5 mm (Ø5.4″ × 5.8″)
Pakuotės dydis	170 mm × 170 mm × 205 mm (6.7″ × 6.7″ × 8.1″)
	Approx. 1075 g (2.4 lb.)
Svoris su įpakavimu	Approx. 1525 g (3.4 lb.)
Sandėliavimo sąlygos	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Darbo sąlygos	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Kalba	33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Pagrindinės funkcijos	Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

EMC	FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
Saugumas	UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013); LOA (IEC/EN 60950-1)
Aplinkosauga	CE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
Apsauga	IP66 (IEC 60529-2013), IK10(IEC 62262:2002)
