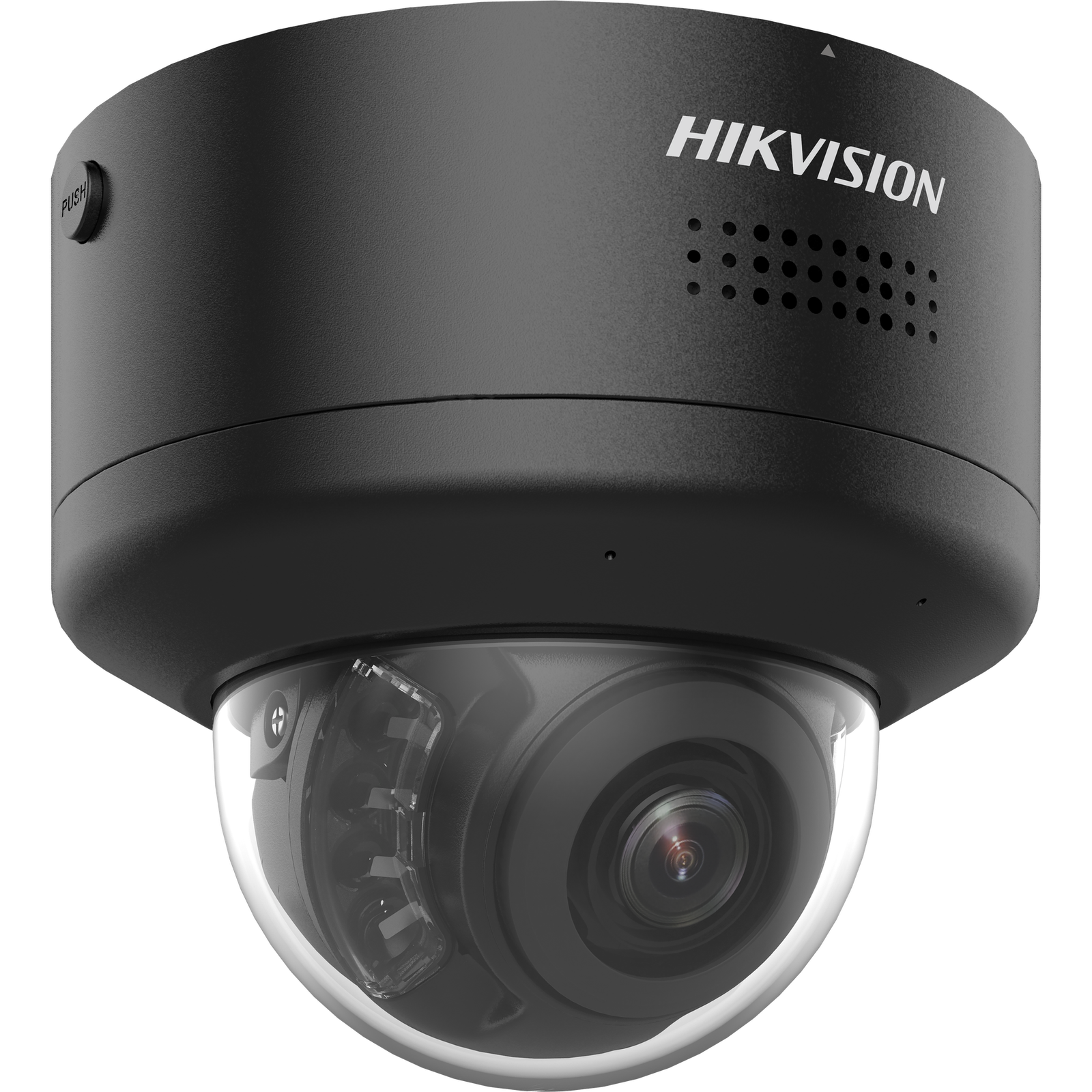

Hikvision dome DS-2CD2747G2H-LIPTRZS2U/SL F2.8-12 (Juoda, 4 MP, 40 m. IR, ColorVu)
459,36€(Kaina be PVM)555,83€(Kaina su PVM)
Turime
- IP kamera: DS-2CD2747G2H-LIPTRZS2U/SL F2.8-12
- Forma: DOME
- Prekės ženklas: Hikvision
- Technologija: ColorVu
- Rezoliucija: 4MP
- Objektyvas: 2.8-12mm (~114.6°-41.8°)
- Motorizuotas pasukimas, pakreipimas, rotacija ir priartinimas
- Platus dinaminis diapazonas (WDR): 130dB
- Kompresija: H.265+
- IR ir baltos šviesos apšvietimas: iki 40m
- Hibridinis apšvietimo režimas: IR, balta šviesa, išmanusis
- Objektyvo tipas: Motorizuotas objektyvas
- Audio: Įėjimas/išėjimas, dviguba mikrofono sistema
- Alarmas: Įėjimas/išėjimas, mirksintis stroboskopas ir garso signalas
- Atsparumas: IP66, IK10
- PoE: PoE
- Mikro SD palaikymas: iki 512GB
- Kamera
- Sensorius1/1.8″ Progressive Scan CMOS
- Maks. rezoliucija2688 × 1520
- Min. apšvietimasColor: 0.0028 Lux @ (F1.2, AGC ON),0 Lux with light
- Užrakto greitis1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Kampo keitimas
Remote adjustment (Max. 1000 cycles)
Pan: 0° to 350°,tilt: 0° to 85°,rotate: 0° to 350°
- Lęšis
- Lęšio tipasVarifocal lens, motorized lens, 2.8 to 12 mm
- Focal Length & FOV2.8 to 12 mm, horizontal FOV 114.6° to 41.8°, vertical FOV 59.3°to 23.6°, diagonal FOV 141.3°to 48.1°
- Lęšio montavimasIntegrated
- Rainelės tipasFixed
- DiafragamaMax. F1.2
- Ryškumo gylis1 m to ∞
- DORI
- DORI
Wide: D: 61.5 m, O: 24.4 m, R:12.3 m, I: 6.2 m
Tele: D: 151.7 m, O: 60.2 m, R: 30.3 m, I:15.1 m
- Apšvietimas
- Papildomo apšviešimo tipasIR,White Light
- Papildomo apšvietimo diapazonasUp to 40 m
- Išmanus papildomas apšvietimasYes
- IR bangos ilgis850 nm
- Vaizdas
- Pagrindinis srautas
50 Hz:
25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz:
30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Antrinis srautas
50 Hz:
25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz:
30 fps (1280 × 720, 640 × 480, 640 × 360)
- Trečias srautas
50 Hz:
10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz:
10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
- Vaizdo suspaudimas
Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
*Third stream is supported under certain settings.
- Vaizdo bitų greitis32 Kbps to 8 Mbps
- H.264 tipasBaseline Profile,Main Profile,High Profile
- H.265 tipasMain Profile
- Bitų greičio kontrolėCBR,VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)1 fixed region for main stream and sub-stream
- Garsas
- Garso suspaudimasG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Garso bitų greitis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Garso atrankos dažnis8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Pašalinių garsų šalinimasYes
- Internetas
- ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
- Tiesioginis vaizdo žiūrėjimasUp to 6 channels
- APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- SaugumasPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
- Vidinė atmintisNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
- KlientasiVMS-4200,Hik-Connect,Hik-Central
- Naršyklė
Plug-in required live view: IE 11,
Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+,
Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
- Nuotrauka
- Nuotraukos parametrų keitiklisYes
- Nuotraukos nustatymaiRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Diena/Naktis režimasDay,Night,Auto,Schedule
- Nuotraukų pagražinimasBLC,HLC,3D DNR
- SNR≥ 52 dB
- Wide Dynamic Range (WDR)120 dB
- Privatumo kaukė4 programmable polygon privacy masks
- Sąsaja
- Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
- Vidinė atmintisBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Įmontuotas mikrofonasYes, 2 built-in microphones
- Įmontuotas garsiakalbis 1 built-in speaker,Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
- Garsas
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Signalizacija1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
- Perkrovimo mygtukasYes
- Funkcijos
- Pagrindinės funckcijosMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- Išmaniosios funkcijosscene change detection
- SąsajaUpload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email,audible warning,trigger alarm output,white light flashing
- Išmaniosios funkcijos
- Veido atpažinimasYes
- Perimeter Protection
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
- Pagrindinis
- Sistemos parametrai
12 VDC ± 25%, 1.35 A, max. 16 W,reverse polarity protection,two-core terminal block,
PoE: IEEE 802.3at, Class 4, max. 18 W
- MedžiagaMetal
- DydisØ155 mm × 140.4 mm (Ø6.10″ × 5.23″)
- Pakuotės dydis206 mm × 206 mm × 230 mm (8.1″ × 8.1″ × 9.1″)
- SvorisApprox. 820 g (1.8 lb.)
- Svoris su įpakavimuApprox. 1200 g (2.6 lb.)
- Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Pagrindinės funkcijosHeartbeat,mirror,password reset via email,pixel counter,anti-banding,flash log
- Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Flashing LightWhite Light
- Patvirtinimai
- EMC
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
- Saugumas
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
LOA: IEC/EN 60950-1
- Aplinkosauga
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- ApsaugaIK10: IEC 62262:2002,IP66: IEC 60529-2013
