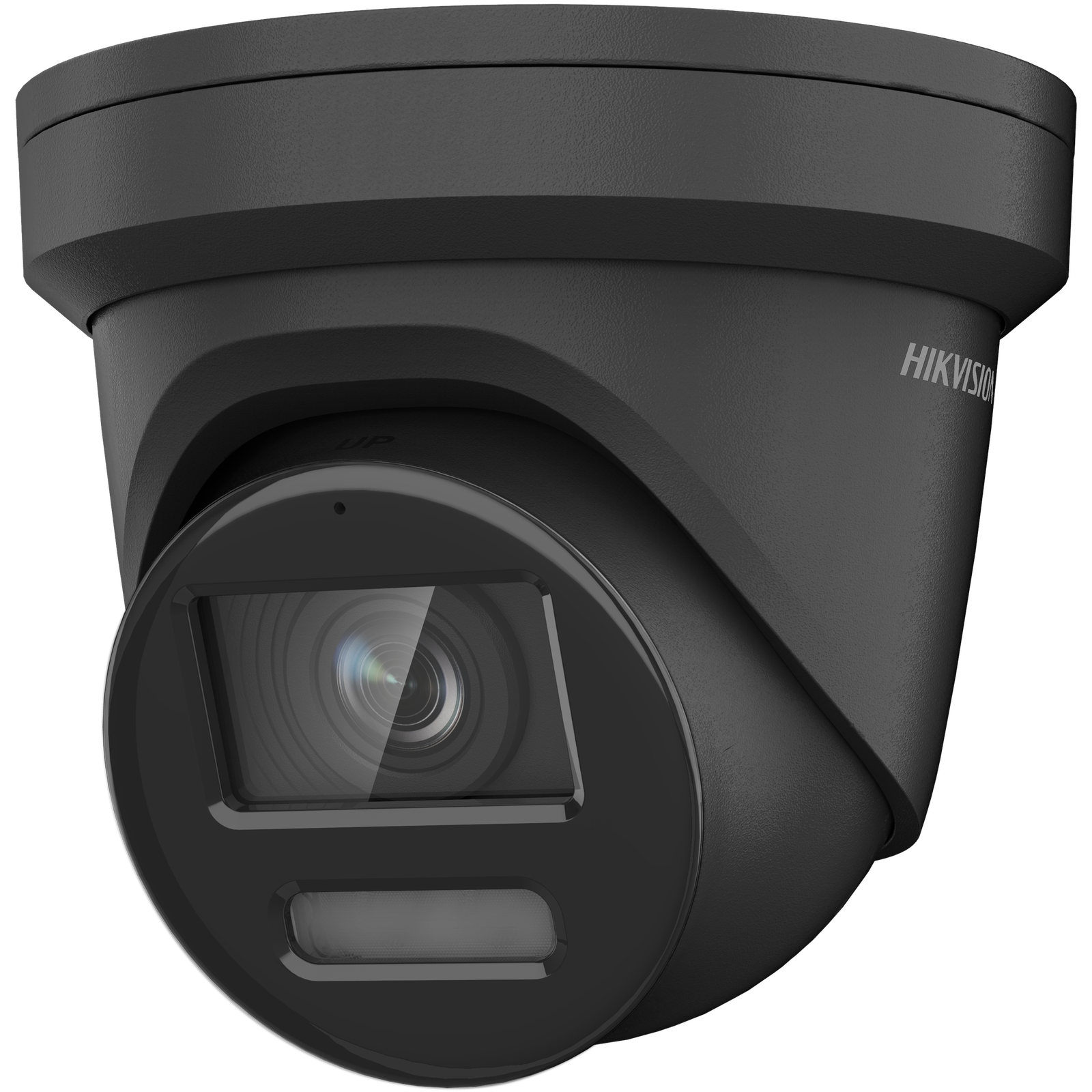

Hikvision dome DS-2CD2387G2-LU F2.8 (juoda, 8 MP, 30 m. LED, ColorVu)
377,82€(Kaina be PVM)457,16€(Kaina su PVM)
| MP (MegaPixel): 8 MP | |
| Objektyvas: 2.8 mm, horizontalus FOV: 102° | |
| Technologija: ColorVu | |
| Integruotas mikrofonas: Taip | |
| Naktinis pašvietimas: 30 m. LED | |
| Vieta microSD talpai: Taip, 256GB | |
| Darbo sąlygos: -30 °C iki 60 °C | |
| Saugos lygis: IP67 | |
| Vaizdo suspaudimas: H.265+ | |
| WiFi: Ne | |
| Laikiklis/bazė (papildomai): DS-1280ZJ-PT6 | |
| Lauko/vidaus: Lauko |
Neturime
Kamera
| Sensorius | 1/1.2″ Progressive Scan CMOS |
| Maks. raiška | 3840 × 2160 |
| Min. apšvietimas | Color：0.0005 Lux @ (F1.0, AGC ON) |
| Užrakto greitis | 1/3 s to 1/100,000 s |
| Diena & naktis | 24/7 Color imaging |
| Kampo pasirinkimas | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
Lęšiai
| Lęšių tipai | Fixed focal lens, 2.8 and 4 mm optional |
| Židinio nuotolis & FOV | 2.8 mm, horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124° 4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104° |
| Lęšių montavimas | M16 |
| Iris tipas | Fixed |
| Diafragma | F1.0 |
| FOV | 2.8 mm: 3.1 m to ∞ 4 mm: 3.6 m to ∞ |
DORI
| DORI | 2.8 mm: D: 96 m, O: 38 m, R: 19 m, I: 9 m 4 mm: D: 102 m, O: 40 m, R: 20 m, I: 10 m |
Apšvietimas
| Pagalbinio apšvietimo tipas | White Light |
| Pagalbinio apšvietimo nuotolis | Up to 30 m |
| Išmanus pagalbinis apšvietimas | Yes |
Vaizdo nustatymai
| Pagrindinis srautas | 50 Hz: 25 fps (3840 × 2160, 3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Pagalbinis srautas | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Tretinis srautas | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 x 1080, 1280 × 720, 640 × 480, 640 × 360) |
| Vaizdo suspaudimas | Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Vaizdo bitų greitis | 32 Kbps to 16 Mbps |
| H.264 tipas | Baseline Profile/Main Profile/High Profile |
| H.265 tipas | Main Profile |
| Bitų greičio kontrolė | CBR/VBR |
| SVC | H.264 and H.265 encoding |
| ROI | 1 fixed region for main stream and sub-stream |
Garsas
| Aplinkos triukšo filtravimas | -U: Yes |
| Garso pavyzdžių ėmimo dažnis | -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Garso suspaudimas | -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Garso bitų greitis | -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) |
Tinklas
| Tiesioginis vaizdo stebėjimas | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK , ISUP |
| Protokolai | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP |
| Naudotojas/transliuotojas | Up to 32 users. 3 user levels: administrator, operator and user |
| Saugumas | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Tinklo saugykla | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Klientas | iVMS-4200, Hik-Connect, Hik-Central |
| Tinklo naršyklė | Plug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
Nuotraukos
| WDR | 130 dB |
| Privatumo kaukė | 8 programmable polygon privacy masks, mask color or mosaic configurable |
| Dienos/nakties keitimas | Day, Night, Auto, Schedule |
| Nuotraukos gerinimas | BLC, HLC, 3D DNR |
| Nuotraukų parametrų keitimas | Yes |
| Nuotraukų nustatymai | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
Sąsajos
| Eterneto sąsajos | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Vidinės sąsajos | Built-in memory card slot, support microSD/SDHC/SDXC/TF card, up to 256 GB |
| Įmontuotas mikrofonas | -LU: Yes |
Įvykiai
| Paprasti įvykiai | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Išmanūs įvykiai | Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle)) Scene change detection |
| Sujungimas | Upload to NAS/memory card/FTP, notify surveillance center, trigger record, trigger capture, send email |
Gilaus mokymosi funkcijos
| Veidų atpažinimas | Yes |
Pagrindiniai parametrai
| Galia | -L: 12 VDC, 0.42 A, max. 5 W PoE: 802.3af, 36 V to 57 V, 0.17 A to 0.11 A, max. 6.0 W -LU: 12 VDC, 0.46 A, max. 5.5 W PoE: 802.3af, 36 V to 57 V, 0.18 A to 0.11 A, max. 6.5 W |
| Medžiagos | Cover: metal, main body: metal |
| Matmenys | Ø138.3 mm × 120.1 mm (Ø5.4″ × 4.7″) |
| Pakuotės matmenys | 170 mm × 170 mm × 150 mm (6.7″ × 6.7″ × 5.9″) |
| Svoris | Approx. 870 g (1.9 lb.) |
| Svoris su pakuote | Approx. 1160 g (2.6 lb.) |
| Laikymo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Paleidimo ir veikimo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Kalbos | 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Pagrindinės funkcijos | Anti-flicker, heartbeat, mirror, password reset via e-mail, pixel counter |
| Programinės įrangos atkūrimas | Yes |
Patvirtinimas
| EMC | FCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014) RCM (AS/NZS CISPR 32: 2015) IC (ICES-003: Issue 7) KC (KN32: 2015, KN35: 2015) |
| Saugumas | UL (UL 62368-1) CB (IEC 62368-1: 2014+A11) CE-LVD (EN 62368-1: 2014/A11: 2017) |
| Aplinkosaugos | CE-RoHS (2011/65/EU) WEEE (2012/19/EU) Reach (Regulation (EC) No 1907/2006) |
| Apsauga | IP67: IEC 60529-2013 |
| Svoris | 0,9 kg |
|---|---|
| Gamintojas |
