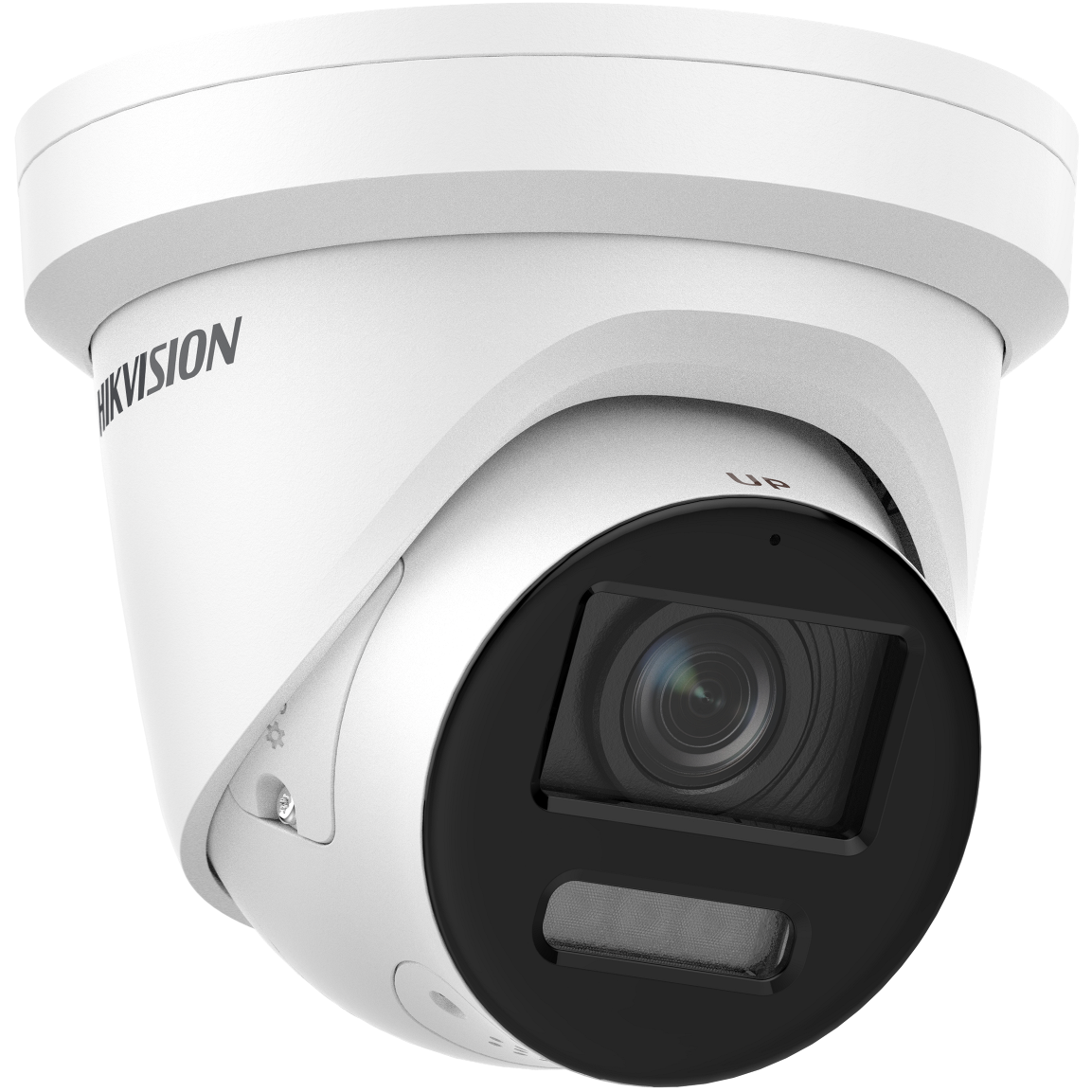

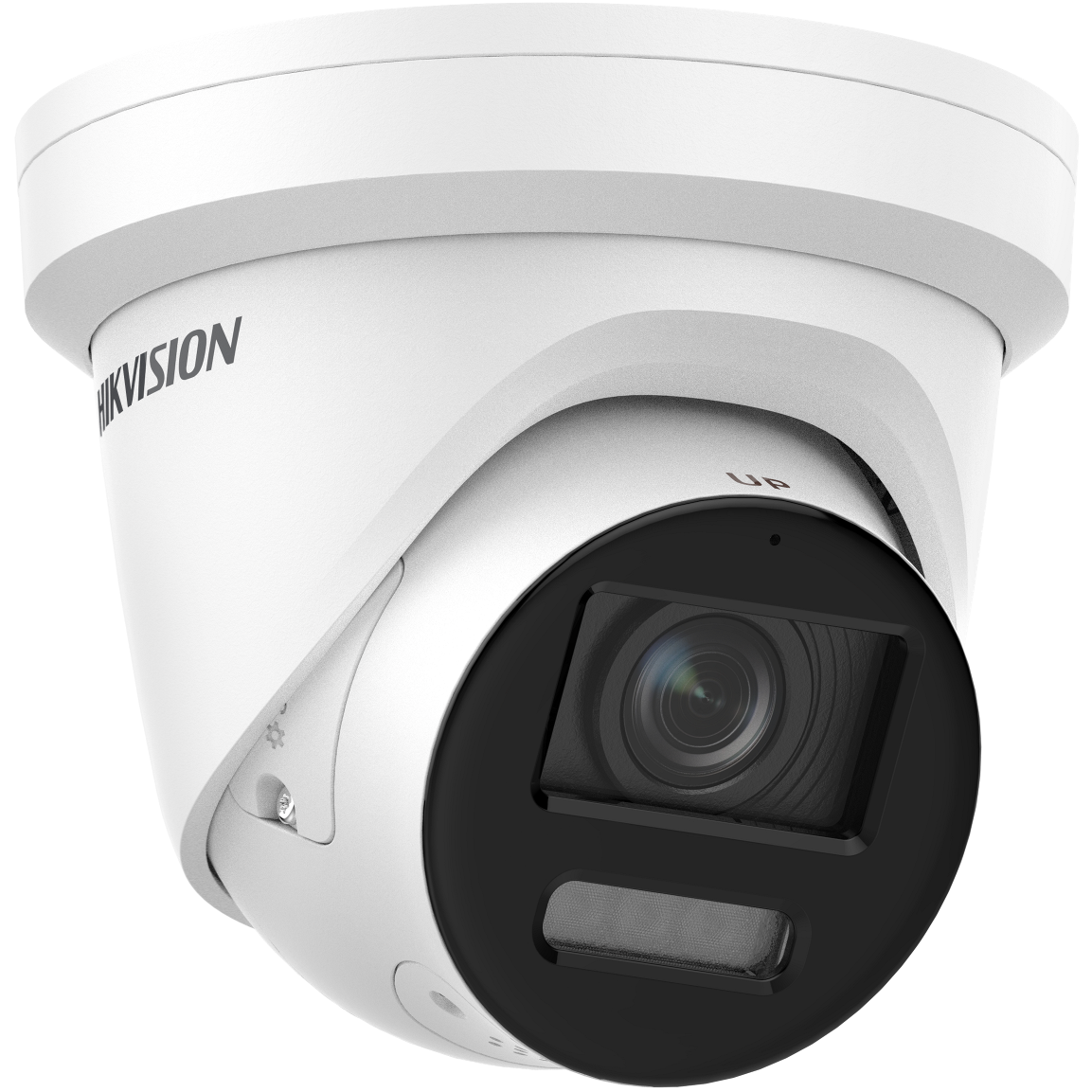

Hikvision dome DS-2CD2387G2-LSU/SL(C) F2.8 (juoda, 8 MP, 30 m. LED, ColorVu)
16,28€ / 48 mėn.
396,30€(Kaina be PVM)479,52€(Kaina su PVM)
| MP (MegaPixel): 8 MP | |
| Objektyvas: 2.8 mm, horizontalus FOV: 102° | |
| Technologija: ColorVu | |
| Integruotas mikrofonas: Taip | |
| Naktinis pašvietimas: 30 m. LED | |
| Vieta microSD talpai: Taip, 512GB | |
| Darbo sąlygos: -30 °C iki 60 °C | |
| Saugos lygis: IP67 | |
| Vaizdo suspaudimas: H.265+ | |
| WiFi: Ne | |
| Laikiklis/bazė (papildomai): DS-1280ZJ-PT6 | |
| Lauko/vidaus: Lauko |
Neturime
Kamera
| Sensorius | 1/1.2″ Progressive Scan CMOS |
| Maks. rezoliucija | 3840 × 2160 |
| Min. apšvietimas | Color：0.0005 Lux @ (F1.0, AGC ON)，0 Lux with white light |
| Užrakto greitis | 1/3 s to 1/100,000 s |
| Diena & Naktis | 24/7 Color imaging |
| Kampo keitimas | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
Lęšis
| Lęšio tipas | Fixed focal lens, 2.8 and 4 mm optional |
| FOV | 2.8 mm, horizontal FOV 102°, vertical FOV 52°, diagonal FOV 124° 4 mm, horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104° |
| Lęšio montavimas | M mount |
| Rainelės tipas | Fixed |
| Diafragama | F1.0 |
| Ryškumo gylis | 2.8 mm: 4.5 m to ∞ 4 mm: 7 m to ∞ |
DORI
| DORI | 2.8 mm: D: 96 m, O: 38 m, R: 19 m, I: 9 m 4 mm: D: 102 m, O: 40 m, R: 20 m, I: 10 m |
Apšvietimas
| Papildomo apšviešimo tipas | White Light |
| Papildomo apšvietimo diapazonas | Up to 30 m |
| Išmanus papildomas apšvietimas | Yes |
Vaizdas
| Pagrindinis srautas | 50 Hz: 25 fps (3840 × 2160, 3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Antrinis srautas | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Trečias srautas | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 x 1080, 1280 × 720, 640 × 480, 640 × 360) |
| Vaizdo suspaudimas | Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Vaizdo bitų greitis | 32 Kbps to 16 Mbps |
| H.264 tipas | Baseline Profile/Main Profile/High Profile |
| H.265 tipas | Main Profile |
| Bitų greičio kontrolė | CBR/VBR |
| SVC | H.264 and H.265 encoding |
| ROI | 1 fixed region for main stream and sub-stream |
Garsas
| Pašalinių garsų šalinimas | -U: Yes |
| Garso atrankos dažnis | -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Garso suspaudimas | -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Garso bitų greitis | -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) |
Internetas
| Tiesioginis vaizdo žiūrėjimas | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK , ISUP |
| Protokolai | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Saugumas | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Vidinė atmintis | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Klientas | iVMS-4200, Hik-Connect, Hik-Central |
| Naršyklė | Plug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
Nuotrauka
| WDR | 130 dB |
| SNR | ≥ 52 dB |
| Privatumo kaukė | 8 programmable polygon privacy masks, mask color or mosaic configurable |
| Diena/Naktis režimas | Day, Night, Auto, Schedule |
| Nuotraukų pagražinimas | BLC, HLC, 3D DNR |
| Nuotraukos parametrų keitiklis | Yes |
| Nuotraukos nustatymai | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
Sąsaja
| Interneto sąsaja | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Vidinė atmintis | Built-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB |
| Įmontuotas mikrofonas | Yes |
| Įmontuotas garsiakalbis | 1.5 W, 10 cm: 95 dB |
| Garsas | 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance:4.7 KΩ, interface type: non-equilibrium 1 output (line out), max.output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Signalizacija | 1 input, 1 output (max. 24 VDC, 1 A) |
| Perkrovimo mygtukas | Yes |
Funkcijos
| Pagrindinės funckcijos | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error) |
| Išmaniosios funkcijos | Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle)), scene change detection |
| Sąsaja | Upload to NAS/memory card/FTP, notify surveillance center, trigger record, trigger capture, send email |
Išmaniosios funkcijos
| Veido atpažinimas | Yes |
Pagrindinis
| Sistemos parametrai | 12 VDC ± 25%, 0.63 A, max. 8.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.24 A to 0.15 A |
| Medžiaga | Cover: metal, main body: metal |
| Dydis | Ø138.3 mm × 120.1 mm (Ø5.4″ × 4.7″) |
| Pakuotės dydis | 170 mm × 170 mm × 150 mm (6.7″ × 6.7″ × 5.9″) |
| Approx. 900 g (2 lb.) | |
| Svoris su įpakavimu | Approx. 1190 g (2.6 lb.) |
| Sandėliavimo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Darbo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Kalba | 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Pagrindinės funkcijos | Anti-flicker, heartbeat, mirror, password reset via e-mail, pixel counter |
Patvirtinimai
| EMC | FCC (47 CFR Part 15, Subpart B) CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014) RCM (AS/NZS CISPR 32: 2015) IC (ICES-003: Issue 7) KC (KN32: 2015, KN35: 2015) |
| Saugumas | UL (UL 62368-1) CB (IEC 62368-1: 2014+A11) CE-LVD (EN 62368-1: 2014/A11: 2017) |
| Aplinkosauga | CE-RoHS (2011/65/EU) WEEE (2012/19/EU) Reach (Regulation (EC) No 1907/2006) |
| Apsauga | IP67: IEC 60529-2013 |
| Svoris | 0,947 kg |
|---|---|
| Gamintojas |
