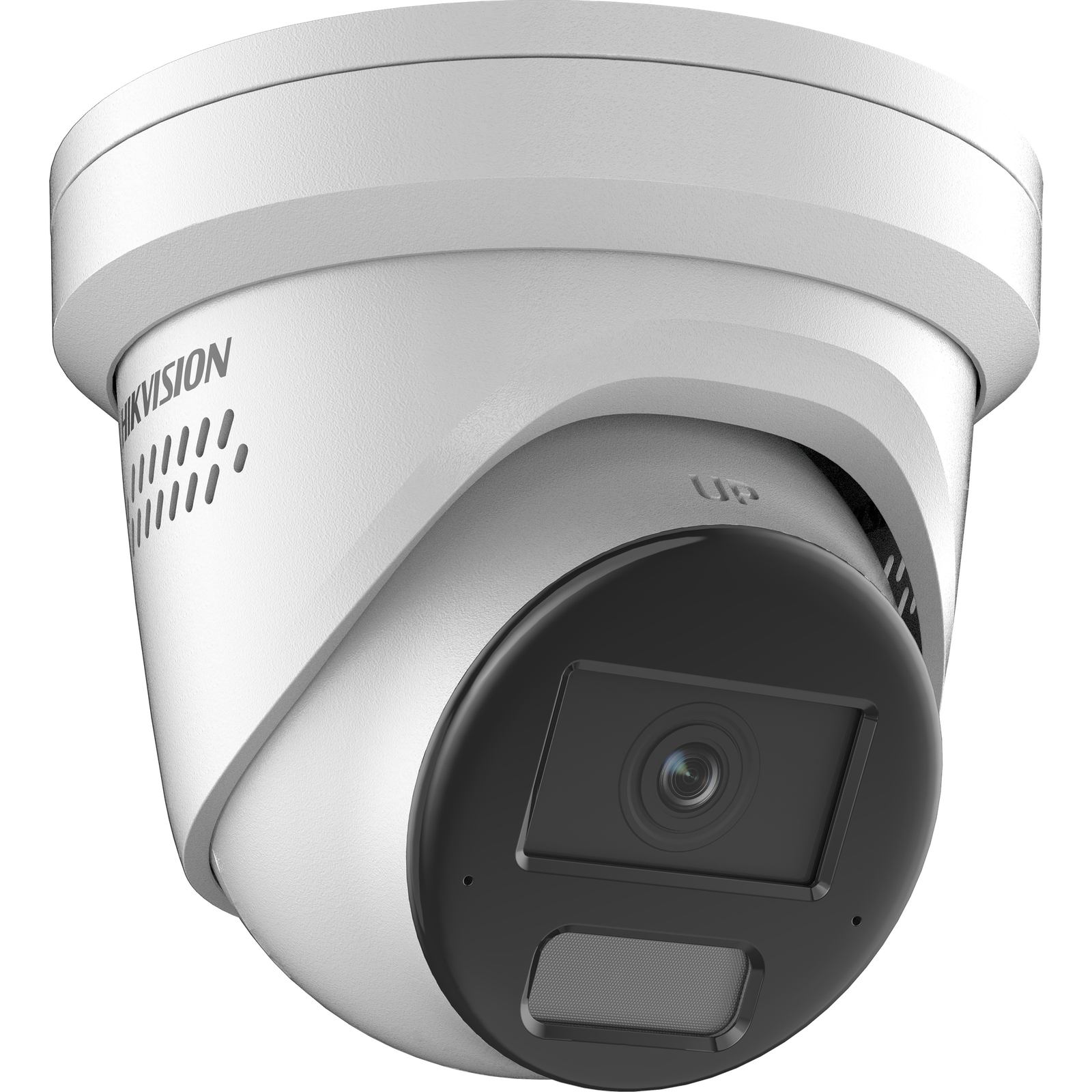

Hikvision dome DS-2CD2346G2H-IS2U/SL F4 (balta, 4 MP, 30 m. IR, AcuSense, DarkFighter)
Preliminari mėnesinė įmoka nuo 10,68€ / 36 mėn.
228,31€(Kaina be PVM)276,25€(Kaina su PVM)
| IP kamera | |
| Gamintojas: Hikvision | |
| Modelis: DS-2CD2346G2H-IS2U/SL | |
| Objektyvas: 4mm (~81°) | |
| Rezoliucija: 4MP | |
| IR pašvietimas: iki 30m | |
| Triukšmo mažinimas: 3D DNR | |
| Plačiajuostė dinamika (WDR): 120dB | |
| Kompresija: H.265+ | |
| Integruotas garsiakalbis ir mikrofonas | |
| Triukšmo mažinimas: 3D DNR | |
| Plačiajuostė dinamika (WDR): 120dB | |
| Apsaugos klasė: IP67 | |
| Laikiklis/bazė (papildomai): DS-1280ZJ-DM21 | |
| PoE: Taip | |
| Atminties kortelė: SD iki 256GB | |
| Technologijos: AcuSense, DarkFighter | |
| Funkcijos: aliarmo įvestis/išvestis, audio įvestis/išvestis |
Turime
Kamera
| Sensorius | 1/3″ Progressive Scan CMOS |
| Maks. rezoliucija | 2688 × 1520 |
| Min. apšvietimas | Color: 0.001 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR |
| Užrakto greitis | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Kampo keitimas | Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360° |
Lęšis
| Lęšio tipas | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 120° 4 mm, horizontal FOV 81°, vertical FOV 45°, diagonal FOV 95° |
| Lęšio montavimas | M12 |
| Rainelės tipas | Fixed |
| Diafragama | F1.0 |
| Ryškumo gylis | 2.8 mm: 1.9 m to ∞ 4 mm: 2.5 m to ∞ |
DORI
| DORI | 2.8 mm: D: 63 m, O: 25 m, R: 12 m, I: 6 m 4 mm: D: 78 m, O: 31 m, R: 15 m, I: 7 m |
Apšvietimas
| Papildomo apšviešimo tipas | IR |
| Papildomo apšvietimo diapazonas | Up to 30 m |
| Išmanus papildomas apšvietimas | Yes |
| IR bangos ilgis | 850 nm |
Vaizdas
| Pagrindinis srautas | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Antrinis srautas | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Trečias srautas | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *The third stream is supported under certain settings. |
| Vaizdo suspaudimas | Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings. |
| Vaizdo bitų greitis | 32 Kbps to 8 Mbps |
| H.264 tipas | Baseline Profile,Main Profile,High Profile |
| H.265 tipas | Main Profile |
| Bitų greičio kontrolė | CBR,VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
Garsas
| Garso suspaudimas | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Garso tipas | Mono sound |
| Garso bitų greitis | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Garso atrankos dažnis | 8 kHz/16 kHz/32 kHz/48 kHz |
| Pašalinių garsų šalinimas | Yes |
Internetas
| Protokolai | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP |
| Tiesioginis vaizdo žiūrėjimas | Up to 6 channels |
| API | ONVIF (Profile S, Profile T, Profile G),ISAPI,SDK,ISUP |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Saugumas | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) |
| Vidinė atmintis | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR) |
| Klientas | iVMS-4200,Hik-Connect |
| Naršyklė | Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Nuotrauka
| Nuotraukos parametrų keitiklis | Yes |
| Nuotraukos nustatymai | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Diena/Naktis režimas | Day,Night,Auto,Schedule |
| Nuotraukų pagražinimas | BLC,HLC,3D DNR,Defog |
| SNR | ≥ 52 dB |
| Wide Dynamic Range (WDR) | 120 dB |
| Privatumo kaukė | 4 programmable polygon privacy masks |
Sąsaja
| Interneto sąsaja | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Vidinė atmintis |
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Įmontuotas mikrofonas | Yes, 2 built-in microphones |
| Įmontuotas garsiakalbis | Max. power consumption: 2 W, max. sound pressure level: 10 cm: 105 dB. |
| Garsas | 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Signalizacija | 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
| Perkrovimo mygtukas | Yes |
Funkcijos
| Pagrindinės funckcijos | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
| Sąsaja | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,strobe light |
| Išmaniosios funkcijos |
Scene change detection |
Išmaniosios funkcijos
| Veido atpažinimas | Yes |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) |
Pagrindinis
| Sistemos parametrai | 12 VDC ± 25%, 1.34 A, max. 16 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 18 W |
| Medžiaga |
Cover: metal, main body: metal |
| Dydis | Ø138.3 mm × 115.4 mm (Ø5.4″ × 4.5″) |
| Pakuotės dydis | 170 mm × 170 mm × 160 mm (6.7″ × 6.7″ × 6.3″) |
| Svoris | Approx. 780 g (1.71 lb.) |
| Svoris su įpakavimu | Approx. 1210 g (2.67 lb.) |
| Sandėliavimo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Darbo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Pagrindinės funkcijos | Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding |
| Kalba | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Flashing Light | /SRB model: Red and Blue Light /SL model: White Light |
Patvirtinimai
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 |
| Saugumas | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Aplinkosauga | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Apsauga | IP67: IEC 60529-2013 |
| Svoris | 0,78 kg |
|---|---|
| Gamintojas |
