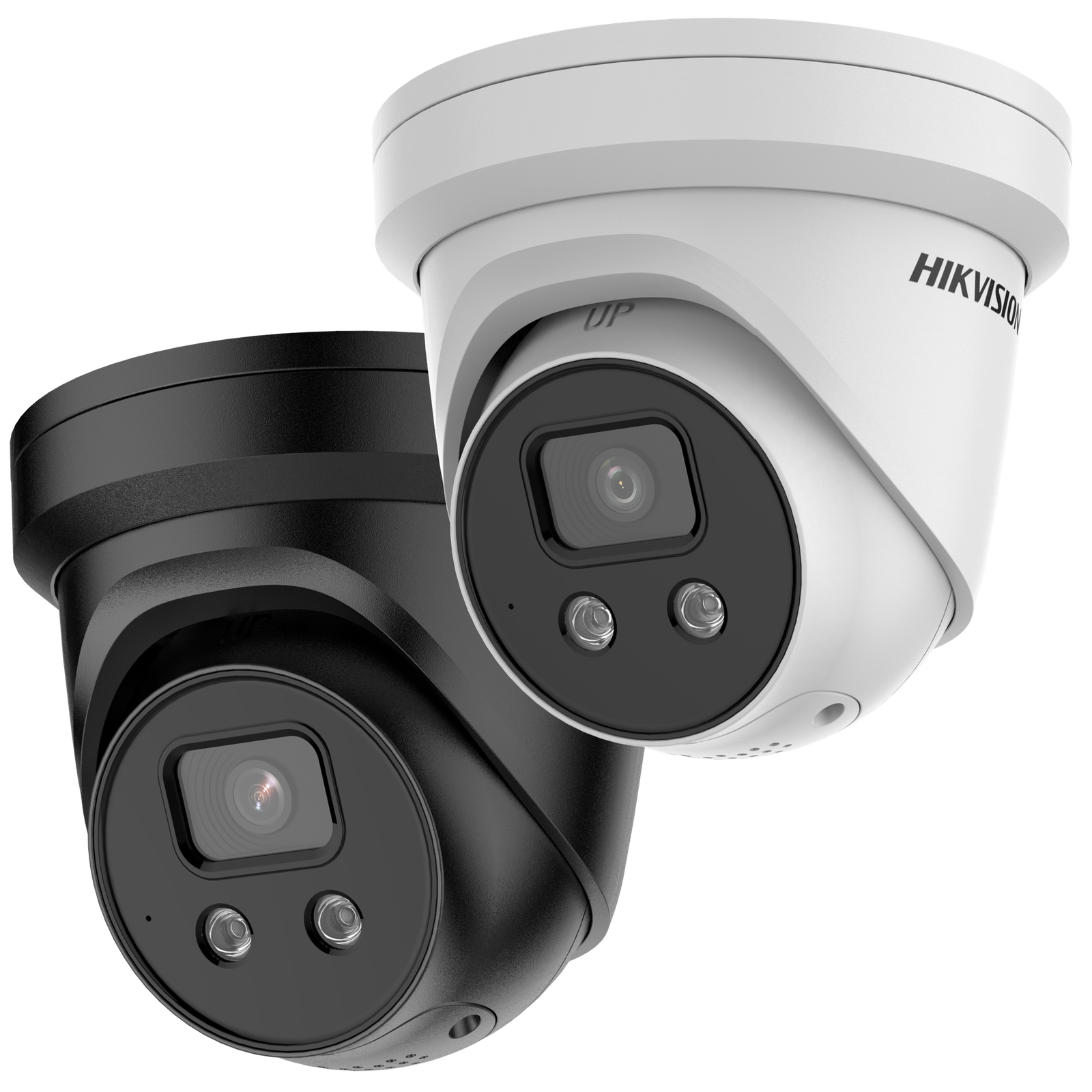

Hikvision dome DS-2CD2346G2-ISU/SL F4 (baltas, 4 MP, 30 m. IR; 30 LED, AcuSense)
12,02€ / 24 mėn.
204,17€(Kaina be PVM)247,04€(Kaina su PVM)
| MP (MegaPixel): 4 MP | |
| Objektyvas: 4 mm, horizontalus FOV: 83° | |
| Technologija: AcuSense | |
| Integruotas mikrofonas: Taip | |
| Integruotas garsiakalbis: Taip | |
| Naktinis pašvietimas: 30 m. IR; 30 m. LED | |
| Vieta microSD talpai: Taip, 512GB | |
| Darbo sąlygos: -30 °C iki 60 °C | |
| Saugos lygis: IP67 | |
| Vaizdo suspaudimas: H.265+ | |
| WiFi: Ne | |
| Laikiklis/bazė (papildomai): DS-1280ZJ-DM21 | |
| Lauko/vidaus: Lauko |
Neturime
Kamera
| Sensorius | 1/3″ Progressive Scan CMOS |
| Maks. rezoliucija | 2688 × 1520 |
| Min. apšvietimas | Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR |
| Užrakto greitis | 1/3 s to 1/100,000 s |
| Diena & Naktis | IR cut filter |
| Kampo keitimas | Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° |
Lęšis
| Lęšio tipas | Fixed focal lens, 2.8, 4, and 6 mm optional |
| FOV | 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 123° 4 mm, horizontal FOV 83°, vertical FOV 45°, diagonal FOV 98° 6 mm, horizontal FOV 53°, vertical FOV 29°, diagonal FOV 62° |
| Lęšio montavimas | M12 |
| Rainelės tipas | Fixed |
| Diafragama | F1.4 |
DORI
| DORI | 2.8 mm: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m 4 mm: D: 80.0 m, O: 31.7 m, R: 16.0 m, I: 8.0 m 6 mm: D: 120.0 m, O: 47.6 m, R: 24.0 m, I: 12.0 m |
Apšvietimas
| Papildomo apšviešimo tipas | IR |
| Papildomo apšvietimo diapazonas | Up to 30 m |
| Išmanus papildomas apšvietimas | Yes |
| IR bangos ilgis | Yes |
Vaizdas
| Pagrindinis srautas | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Antrinis srautas | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Trečias srautas | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. |
| Vaizdo suspaudimas | Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings. |
| Vaizdo bitų greitis | 32 Kbps to 8 Mbps |
| H.264 tipas | Baseline Profile/Main Profile/High Profile |
| H.265 tipas | Main Profile |
| Bitų greičio kontrolė | CBR/VBR |
| SVC | H.264 and H.265 encoding |
| ROI | 1 fixed region for main stream and sub-stream |
Garsas
| Garso tipas | Mono sound |
| Garso suspaudimas | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Garso bitų greitis | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) |
| Garso atrankos dažnis | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Pašalinių garsų šalinimas | Yes |
Internetas
| Protokolai | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP |
| Tiesioginis vaizdo žiūrėjimas | Up to 6 channels |
| API | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Saugumas | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video>sąsaja |
| Vidinė atmintis | MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported |
| Klientas | iVMS-4200, Hik-Connect, Hik-Central |
| Naršyklė | Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
Nuotrauka
| Nuotraukos parametrų keitiklis | Yes |
| Nuotraukos nustatymai | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Diena/Naktis režimas | Day, Night, Auto, Schedule |
| WDR | 120 dB |
| SNR | ≥ 52 dB |
| Nuotraukų pagražinimas | BLC, HLC, 3D DNR |
Sąsaja
| Interneto sąsaja | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Vidinė atmintis | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
| Įmontuotas mikrofonas | Yes |
| Įmontuotas garsiakalbis | Power: 1.2 W. Max. sound pressure level: 10 cm: 95 dB. |
| Garsas | 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Signalizacija | 1 input, 1 output (max. 24 VDC/24 VAC, 500 mA) |
| Perkrovimo mygtukas | Yes |
Funkcijos
| Pagrindinės funckcijos | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Išmaniosios funkcijos | Scene change detection |
| Sąsaja | Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, strobe light, audible warning, send email |
Išmaniosios funkcijos
| Veido atpažinimas | Yes |
Pagrindinis
| Sistemos parametrai | 12 VDC ± 25%, 0.65 A, max. 7.8 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3 , 36 V to 57 V, 0.25 A to 0.15 A, max. 8.8 W |
| Dydis | Ø138.3 mm × 124.5 mm (Ø5.4″ × 4.9″) |
| Pakuotės dydis | 170 mm × 170 mm × 150 mm (6.9″ × 6.9″ × 5.9″) |
| Approx. 825 g (1.8 lb.) | |
| Svoris su įpakavimu | Approx. 1120 g (2.5 lb.) |
| Sandėliavimo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Darbo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Kalba | 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Pagrindinės funkcijos | Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
Patvirtinimai
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
| Saugumas | UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014 ); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014 ); BIS (IS 13252(Part 1): 2010+A1: 2013+A2: 2015); LOA (IEC/EN 60950-1) |
| Aplinkosauga | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Apsauga | IP67 (IEC 60529-2013) |
| Svoris | 0,87 kg |
|---|---|
