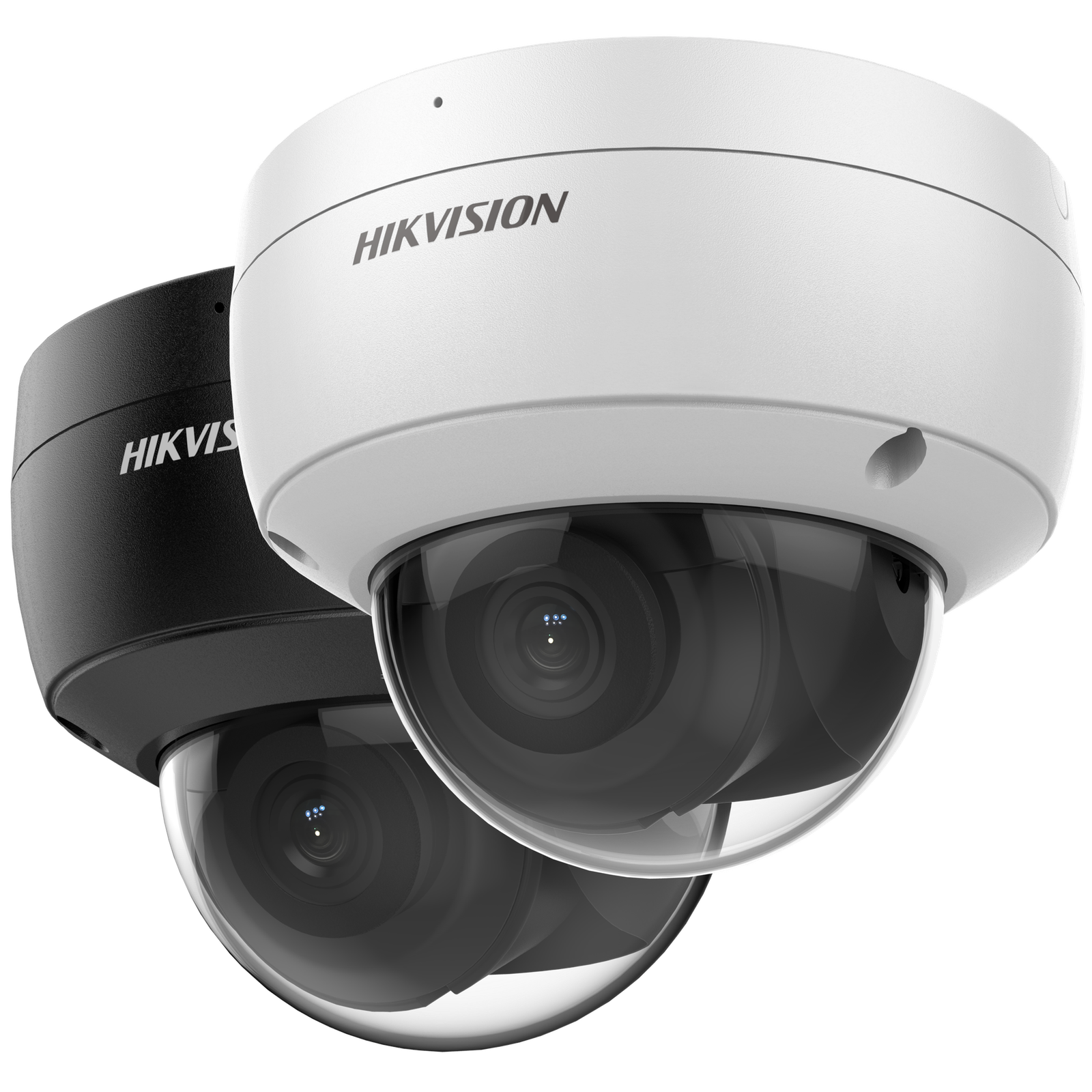

Hikvision dome DS-2CD2186G2-ISU F2.8 (balta, 8 MP, 30 m. IR, AcuSense)

2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 131°

4 mm, horizontal FOV 87°, vertical FOV 47°, diagonal FOV 102°

2.8 mm: 2.6 m to ∞

4 mm: 3.2 m to ∞

2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m

4 mm: D: 99.4 m, O: 39.4 m, R: 19.9 m, I: 9.9 m

50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 24 fps (3840 × 2160)

30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.

Main stream: H.265/H.264/H.264+/H.265+

Sub-stream: H.265/H.264/MJPEG

Third stream: H.265/H.264

*Third stream is supported under certain settings.

MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Plug-in required live view: IE 10+

Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Local service: Chrome 57.0+, Firefox 52.0+

-S: 1 input (line in), max. input amplitude: 3.3 vpp, input impedance:4.7 KΩ, interface type: non-equilibrium;

1 output (line out), max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound

Motion detection (human and vehicle targets classification), video tampering alarm, exception

-S: alarm input and output

Line crossing detection, intrusion detection, region entrance detection, region exiting detection

Supports human and vehicle targets classification

Upload to FTP/memory card/NAS, notify surveillance center, send email, trigger recording, trigger capture

-S: trigger alarm output, audible warning

12 VDC, 0.5 A, max. 6 W

PoE (802.3af, 36 V to 57 V), 0.25 A to 0.15 A, max. 7.5 W

12 VDC ± 25%

PoE: 802.3af, Class 3

33 languages

English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian

FCC (47 CFR Part 15, Subpart B);

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);

RCM (AS/NZS CISPR 32: 2015);

KC (KN 32: 2015, KN 35: 2015)

UL (UL 60950-1);

CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);

CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)
