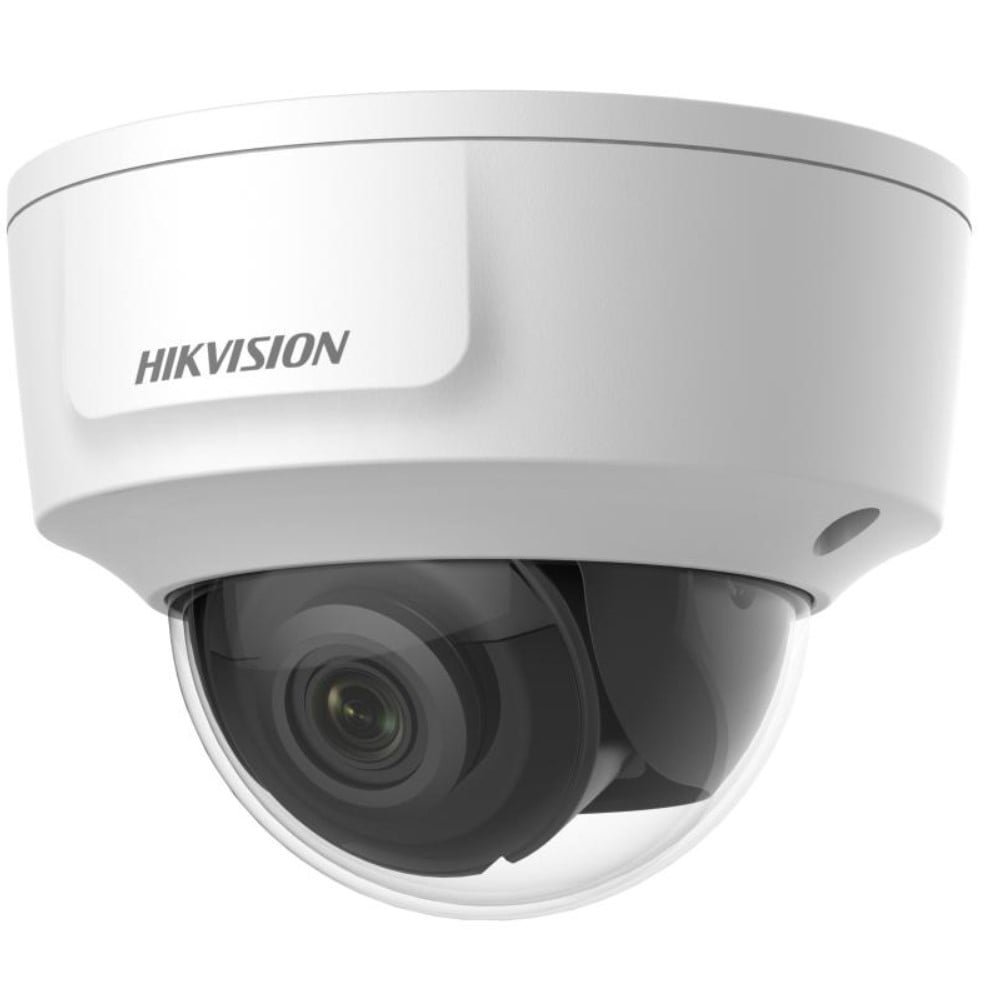

Hikvision dome DS-2CD2186G2-IMS F2.8 (balta, 8 MP, 30 m. IR, AcuSense, DarkFighter)
14,09€ / 36 mėn.
297,93€(Kaina be PVM)360,50€(Kaina su PVM)
| MP (MegaPixel): 8 MP | |
| Objektyvas: 2.8 mm, horizontalus FOV: 108° | |
| Technologija: AcuSense, DarkFighter | |
| Integruotas mikrofonas: Ne | |
| HDMI/Metal | |
| Naktinis pašvietimas: 30 m. IR | |
| Vieta microSD talpai: Taip, 256GB | |
| Darbo sąlygos: -30 °C iki 60 °C | |
| Saugos lygis: IP67 | |
| Vaizdo suspaudimas: H.265+ | |
| WiFi: Ne | |
| Laikiklis/bazė (papildomai): DS-1280ZJ-DM46 | |
| Lauko/vidaus: Lauko |
Neturime
Kamera
| Sensorius | 1/1.8″ Progressive Scan CMOS |
| Maks. rezoliucija | 3840 × 2160 |
| Min. apšvietimas | Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| Užrakto greitis | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Kampo keitimas | Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355° |
Lęšis
| Focal Length & FOV | 2.8 mm, horizontal FOV: 108°, vertical FOV: 58°, diagonal FOV: 133° |
| Lęšio tipas | Fixed focal lens, 2.8 mm |
| Diafragama | F1.6 |
| Rainelės tipas | Fixed |
| Lęšio montavimas | M12 |
DORI
| DORI | 2.8 mm, D: 97 m, O: 38 m, R: 19 m, I: 9 m 4 mm, D: 111 m, O: 44 m, R: 22 m, I: 11 m |
Apšvietimas
| Papildomo apšviešimo tipas | IR |
| Papildomo apšvietimo diapazonas | Up to 30 m |
| Išmanus papildomas apšvietimas | Yes |
| IR bangos ilgis | 850 nm |
Vaizdas
| Pagrindinis srautas | 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160), 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Antrinis srautas | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Trečias srautas | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. |
| Vaizdo suspaudimas | Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, *Third stream is supported under certain settings. |
| Vaizdo bitų greitis | 32 Kbps to 16 Mbps |
| H.264 tipas | Baseline Profile,Main Profile,High Profile |
| H.265 tipas | Main Profile |
| Bitų greičio kontrolė | CBR,VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
Garsas
| Garso tipas | Mono sound |
| Pašalinių garsų šalinimas | Yes |
| Garso atrankos dažnis | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Garso suspaudimas | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Garso bitų greitis | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
Internetas
| Tiesioginis vaizdo žiūrėjimas | Up to 6 channels |
| API | ISAPI,SDK,ISUP,ONVIF (Profile S, Profile G, Profile T) |
| Protokolai | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Saugumas | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) |
| Vidinė atmintis | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Klientas | iVMS-4200,Hik-Connect,Hik-Central |
| Naršyklė | Plug-in required live view: IE 11, Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+, Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+ |
Nuotrauka
| Nuotraukos parametrų keitiklis | Yes |
| SNR | ≥ 52 dB |
| Wide Dynamic Range (WDR) | 130 dB |
| Privatumo kaukė | 4 programmable polygon privacy masks |
| Diena/Naktis režimas | Day,Night,Auto,Schedule |
| Nuotraukų pagražinimas | BLC,HLC,3D DNR |
| Nuotraukos nustatymai | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
Sąsaja
| Garsas | 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Signalizacija | 1 input, 1 output (max. 12 VDC, 30 mA) |
| Vaizdo išvestis | 1 type D HDMI interface (female plug) (720p@50 fps/60 fps, 1080p@25 fps/30 fps/50 fps/60 fps, HDMI version 1.4) |
| Vidinė atmintis | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Perkrovimo mygtukas | Yes |
| Interneto sąsaja | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
Funkcijos
| Pagrindinės funckcijos | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
| Išmaniosios funkcijos | scene change detection |
| Sąsaja | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture,trigger alarm output,audible warning |
Išmaniosios funkcijos
| Veido atpažinimas | Yes |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) |
Pagrindinis
| Sistemos parametrai | 12 VDC ± 25%, 0.7 A, max. 8.4 W,reverse polarity protection,Ø5.5 mm coaxial power plug,or two-core terminal block, PoE: IEEE 802.3af, Class 3, max. 10 W |
| Medžiaga | Metal |
| Dydis | Ø119 mm × 90 mm (Ø4.7″ × 3.5″) |
| Pakuotės dydis | 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″) |
| Svoris | Approx. 440 g (0.97 lb.) |
| Svoris su įpakavimu | Approx. 720 g (1.59 lb.) |
| Sandėliavimo sąlygos | -10 °C to 40 °C (-14 °F to 104 °F). Humidity 95% or less (non-condensing) |
| Darbo sąlygos | -10 °C to 40 °C (-14 °F to 104 °F). Humidity 95% or less (non-condensing) |
| Pagrindinės funkcijos | Heartbeat,mirror,password reset via email,pixel counter,anti-banding,flash log |
| Kalba | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
Patvirtinimai
| EMC | CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 |
| Saugumas |
CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, LOA: IEC/EN 60950-1 |
| Aplinkosauga | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Apsauga | IK10: IEC 62262:2002 |
| Gamintojas |
|---|
