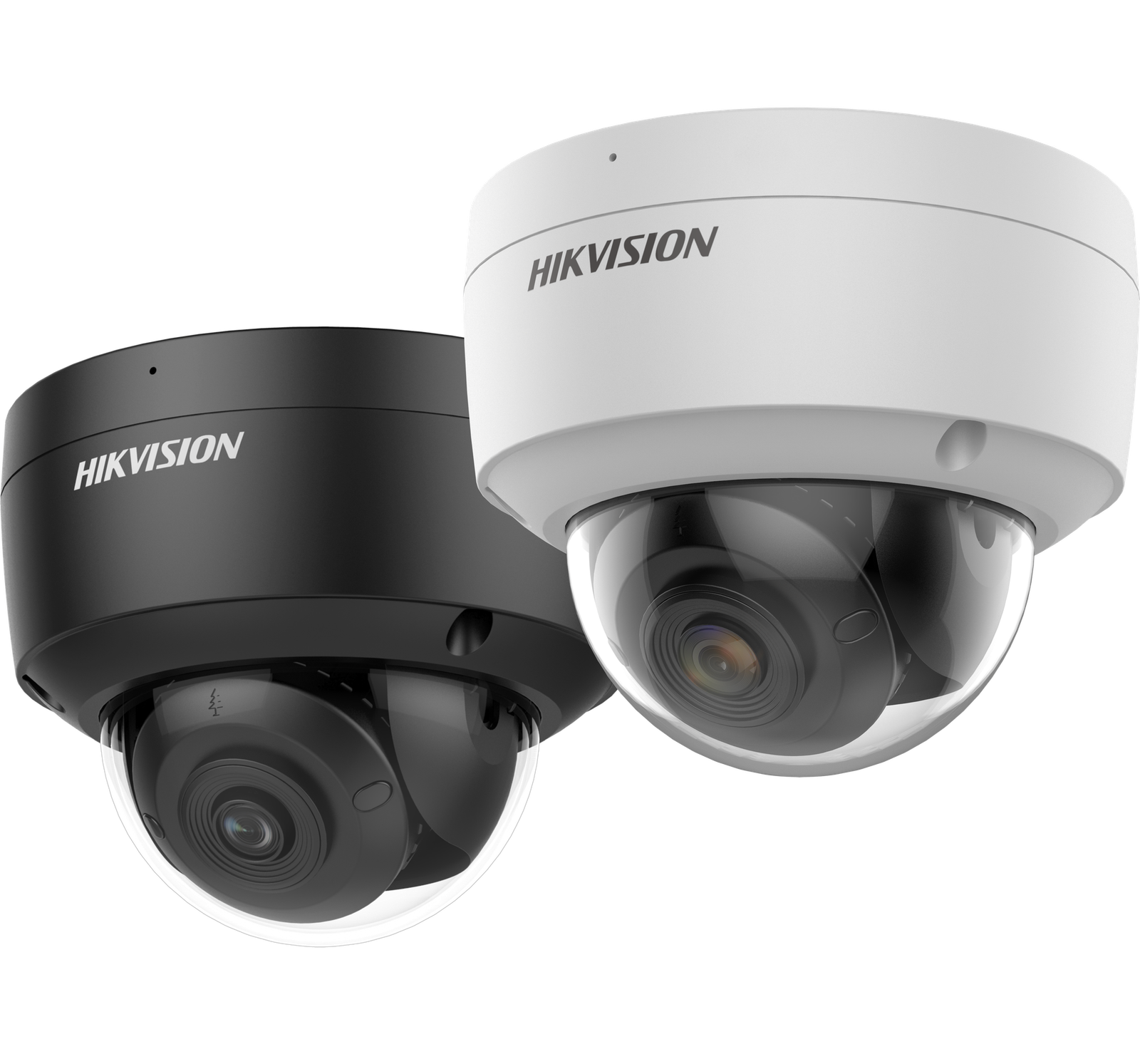

Hikvision dome DS-2CD2147G2-SU F2.8 (juoda, 4 MP, ColorVu)
241,73€(Kaina be PVM)292,49€(Kaina su PVM)
| MP (MegaPixel): 4 MP | |
| Objektyvas: 2.8 mm, horizontalus FOV: 112° | |
| Technologija: ColorVu | |
| Integruotas mikrofonas: Taip | |
| Naktinis pašvietimas: Ne | |
| Vieta microSD talpai: Taip, 512GB | |
| Darbo sąlygos: -30 °C iki 60 °C | |
| Saugos lygis: IP67 | |
| Vaizdo suspaudimas: H.265+ | |
| WiFi: Ne | |
| Laikiklis/bazė (papildomai): DS-1272ZJ-120 | |
| Lauko/vidaus: Lauko |
Liko tik 1. Reikia daugiau? Susisiekite su mumis.
Kamera
| Sensorius | 1/1.8″ Progressive Scan CMOS |
| Maks. rai6ka | 2688 × 1520 |
| Min. apšvietimas | 0.0005 Lux @ (F1.0, AGC ON) |
| Užrakto greitis | 1/3 s to 1/100,000 s |
| Diena & naktis | Blue glass module to reduce ghost phenomenon |
| Kampo pasirinkimas | Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355° |
Lęšiai
| Lęšių tipas | Fixed focal lens, 2.8 and 4 mm optional |
| Židinio nuotolis & FOV | 2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134° 4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115° |
| Lęšių montavimas | M16 |
| Iris tipas | Fixed |
| Diafragma | F1.0 |
DORI
| DORI | 2.8 mm, D: 58 m, O: 23 m, R: 11 m, I: 2 m 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m |
Vaizdas
| Pagrindinis sraugas | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Pagalbinis srautas | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Tretinis srautas | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. |
| Vaizdo suspaudimas | Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings. |
| Vaizdo bitų greitis | 32 Kbps to 8 Mbps |
| H.264 tipas | Baseline Profile/Main Profile/High Profile |
| H.265 tipas | Main Profile |
| Bitų dažnio kontrolė | CBR/VBR |
| SVC | H.264 and H.265 encoding |
| ROI | 1 fixed region for main stream and sub-stream |
Garsas
| Garso suspaudimas | -SU: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Garso bitų greitis | -SU: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) |
| Garso pavyzdžių ėmimo greitis | -SU: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Aplinkos triukšmo filtravimas | -SU: Yes |
Tinklas
| Protokolai | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP |
| Tiesioginis vaizdo žiūrėjimas | Up to 6 channels |
| API | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| Naudotojas/transliuotojas | Up to 32 users. 3 user levels: administrator, operator and user |
| Saugumas | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Tinklo saugykla | MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Klientas | iVMS-4200, Hik-Connect, Hik-Central |
| Internetinė naršyklė | Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
Nuotraukos
| Nuotraukų nustatymų keitimas | Yes |
| Nuotraukų nustatymai | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Platus dinaminis nuotolis (WDR) | 130 dB |
| SNR | ≥ 52 dB |
| Nuotraukų gerinimas | BLC, HLC, 3D DNR |
Sąsajos
| Eterneto sąsajos | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Vidinės sąsajos | Built-in memory card slot, support microSD/SDHC/SDXC/TF card, up to 256 GB |
| Įmontuotas mikrofonas | -SU: Yes |
| Garsas | -SU: 1 input (line in), max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound |
| Įspėjamasis signalas | -SU: 1 input, 1 output (max. 12 VDC, 30 mA) |
| Atkūrimo mygtukas | Yes |
Įvykiai
| Paprasti įvykiai | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Išmanūs įvykiai | Line crossing detection, intrusion detection, region entrance detection, region exiting detection Scene change detection |
| Sujungimas | Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email -SU: audible warning |
Išmanaus mokymosi funkcijos
| Veidų atpažinimas | Yes |
Pagrindinis
| Galia | 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.20 A to 0.15 A, max. 6.5 W |
| Matmenys | Ø121.4 mm × 100.1 mm (Ø4.8″ × 3.9″) |
| Pakuotės matmenys | 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ ×5.6″) |
| Svoris | Approx. 580 g (1.2 lb.) |
| Svoris su pakuote | Approx. 820 g (1.6 lb.) |
| Laikymo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Paleidimo ir veikimo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Kalba | 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Pagrindinės funkcijos | Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
Patvirtinimai
| EMC | FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016) |
| Saugumas | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014) |
| Aplinkos apsauga | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Apsauga | IP67 (IEC 60529-2013), IK10 (IEC 62262:2002) |
| Svoris | 0,612 kg |
|---|---|
