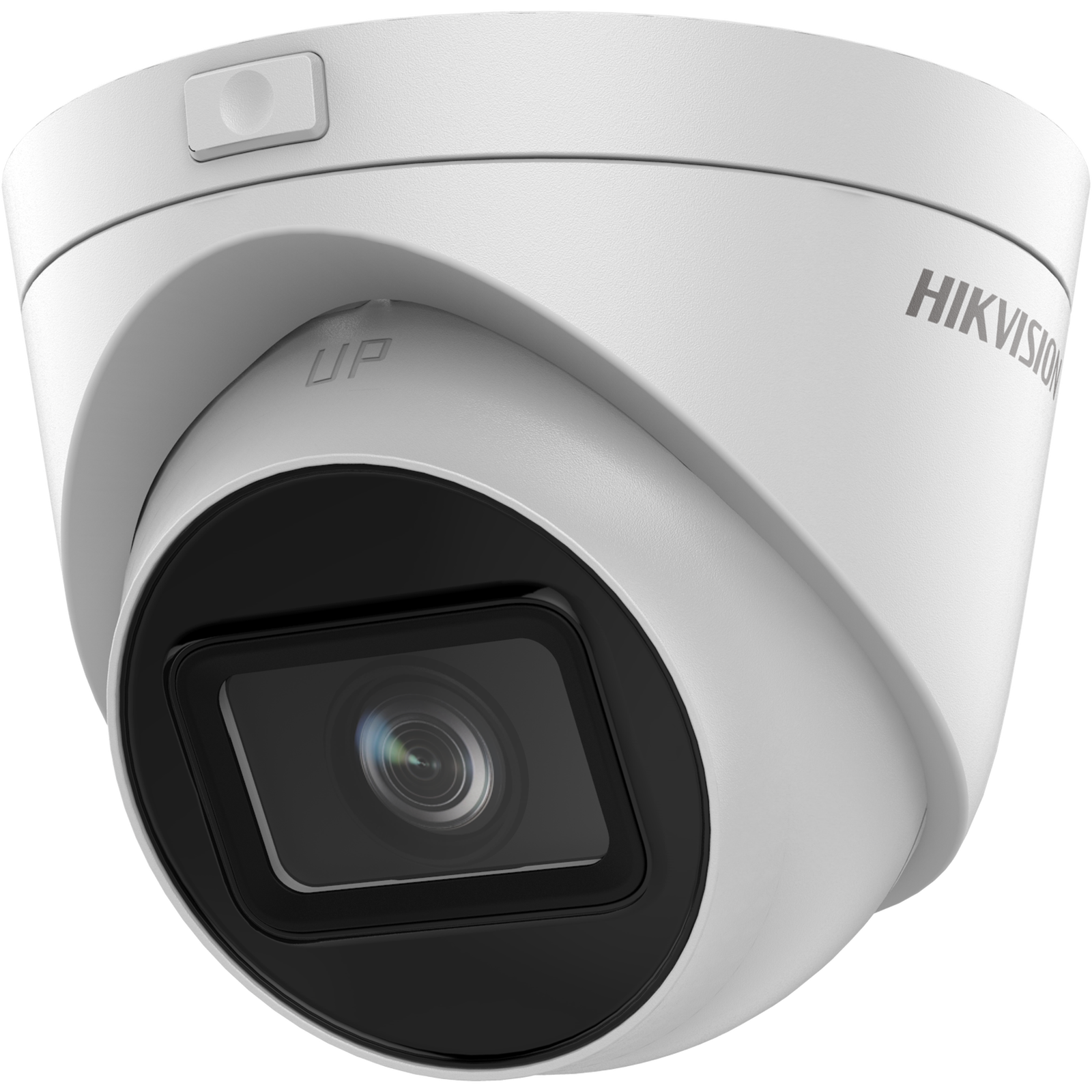

Hikvision dome DS-2CD1H43G2-IZ F2.8-12 (balta, 4 MP, 30 m IR)
10,69€ / 36 mėn.
228,82€(Kaina be PVM)276,87€(Kaina su PVM)
| MP (MegaPixel): 4 MP | |
| Objektyvas: 2.8 – 12 mm, horizontalus FOV: 95°-29° | |
| Integruotas mikrofonas: Ne | |
| Naktinis pašvietimas: 30 m. IR | |
| Vieta microSD talpai: Taip, 256GB | |
| Darbo sąlygos: -30 °C iki 60 °C | |
| Saugos lygis: IP67 | |
| Vaizdo suspaudimas: H.265+ | |
| WiFi: Ne | |
| Laikiklis/bazė (papildomai): DS-1281ZJ-M | |
| Lauko/vidaus: Lauko |
Turime
Kamera
| Sensorius | 1/3″ Progressive Scan CMOS |
| Maks. rezoliucija | 2560 × 1440 |
| Min. apšvietimas | Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| Užrakto greitis | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Kampo keitimas | Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360° |
Lęšis
| Lęšio tipas | Varifocal lens, motorized lens, 2.8 to 12 mm |
| Focal Length & FOV | 2.8 to 12 mm, horizontal FOV 95.9° to 29.2°, vertical FOV 50.6° to 16.4°, diagonal FOV 114.7° to 33.5° |
| Lęšio montavimas | Ø14 |
| Rainelės tipas | Fixed |
| Diafragama | F1.6 |
Apšvietimas
| Papildomo apšviešimo tipas | IR |
| Papildomo apšvietimo diapazonas | Up to 30 m |
| IR bangos ilgis | 850 nm |
| Išmanus papildomas apšvietimas | Yes |
Vaizdas
| Pagrindinis srautas | 50 Hz: 20 fps (2560 × 1440) 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 20 fps (2560 × 1440) 24 fps (1920 × 1080, 1280 × 720) |
| Antrinis srautas | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360) |
| Vaizdo suspaudimas | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG |
| Vaizdo bitų greitis | 32 Kbps to 8 Mbps |
| H.264 tipas | Baseline Profile,Main Profile,High Profile |
| H.265 tipas | Main Profile |
| Region of Interest (ROI) | 1 fixed region(s) for main stream |
Garsas
| Garso suspaudimas | -S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Garso bitų greitis | -S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Garso atrankos dažnis | -S: 8 kHz/16 kHz |
| Pašalinių garsų šalinimas | -S: Yes |
Internetas
| Protokolai | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP |
| Tiesioginis vaizdo žiūrėjimas | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Klientas | iVMS-4200,Hik-Connect |
| Saugumas | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Naršyklė | Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+ |
Nuotrauka
| Nuotraukos nustatymai | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Diena/Naktis režimas | Day,Night,Auto,Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| Nuotraukų pagražinimas | BLC,HLC,3D DNR |
Sąsaja
| Interneto sąsaja | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Vidinė atmintis |
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB |
| Garsas | -S: 1 input(s) (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, -S: 1 output(s) (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Signalizacija | -S: 1 input(s), 1 output(s) (max. 12 VDC, 30 mA) |
| Perkrovimo mygtukas | Yes |
Funkcijos
| Pagrindinės funckcijos | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
| Sąsaja |
Upload to FTP/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output (-S) |
Pagrindinis
| Sistemos parametrai | 12 VDC ± 25%, 0.75 A, max. 9 W,Ø5.5 mm coaxial power plug, PoE: 802.3af, Class 3, 36 V to 57 V, 0.27 A to 0.17 A, max. 10 W |
| Dydis |
Ø129.4 mm × 116.4 mm (Ø5.1 × 4.6″)” |
| Pakuotės dydis | 170 mm × 170 mm × 150 mm (6.7″ × 6.7″ × 5.9″) |
| Svoris | Approx. 595 g (1.3 lb.) |
| Svoris su įpakavimu | Approx. 880 g (1.9 lb.) |
| Sandėliavimo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Darbo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Língua | English, Ukrainian |
| Pagrindinės funkcijos | Heartbeat, anti-banding, mirror, password protection, privacy mask, watermark |
Patvirtinimai
| EMC | FCC: 47 CFR Part 15, Subpart B, CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7 |
| Saugumas | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 |
| Aplinkosauga | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Apsauga | IP66: IEC 60529-2013 |
| Svoris | 0,597 kg |
|---|---|
| Gamintojas |
