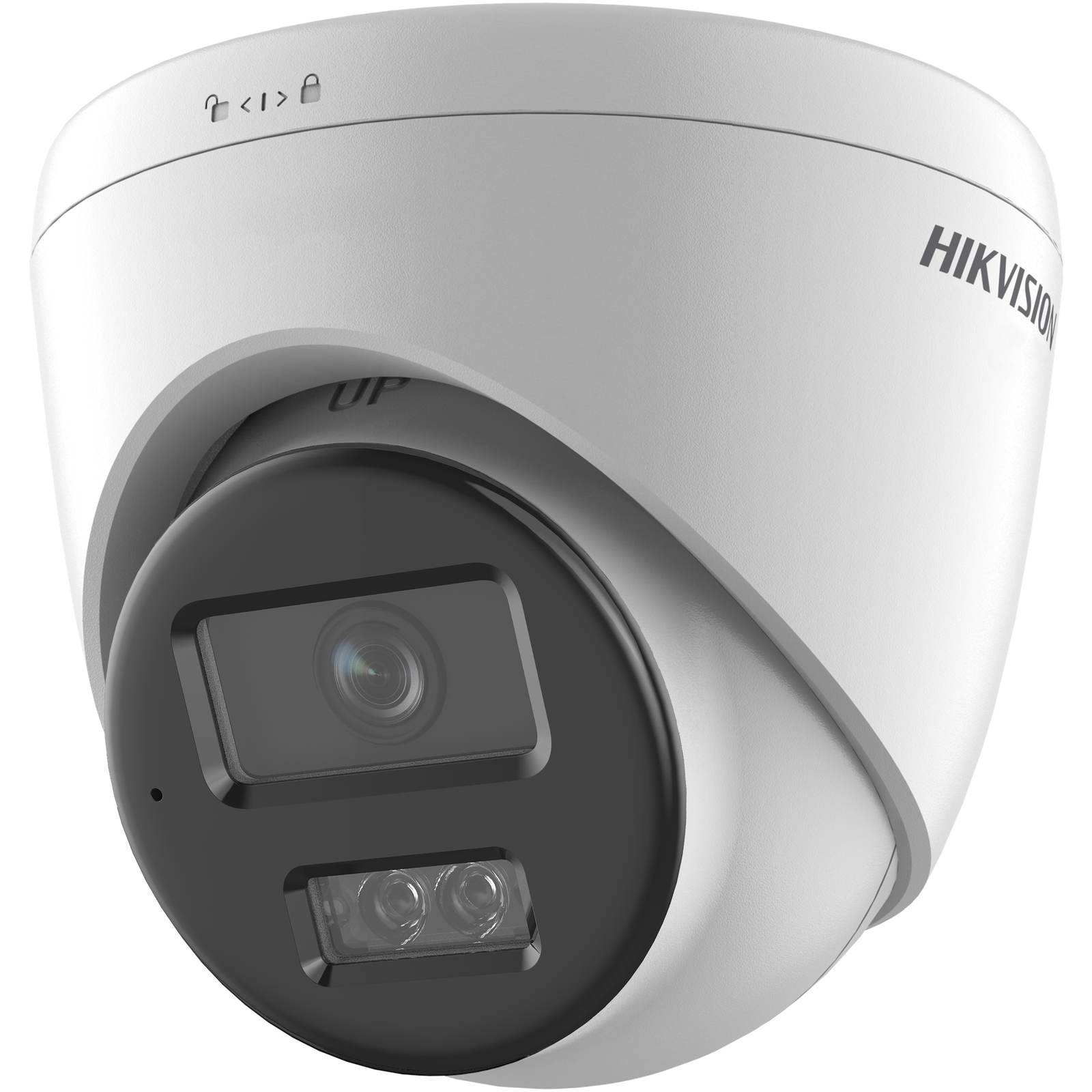

Hikvision dome DS-2CD1383G2-LIUF F2.8 (balta, 8 MP, 30 m. LED)
175,93€(Kaina be PVM)212,87€(Kaina su PVM)
| Modelis: DS-2CD1383G2-LIUF | |
| Objektyvas: F2.8, 2.8mm (113°) | |
| Tipas: Dome kamera | |
| Gamintojas: Hikvision | |
| Rezoliucija: 8MP | |
| Integruotas mikrofonas: Taip | |
| Technologija: Smart Hybrid | |
| Pašvietimas: Baltos spalvos iki 30m | |
| Dinaminis diapazonas: DWDR | |
| Kompresija: H.265+ | |
| Apsaugos lygis: IP67 | |
| Maitinimas: PoE | |
| Atmintis: SD kortelė iki 256GB |
Turime
Kamera
| Sensorius | 1/2.7″ Progressive Scan CMOS |
| Maks. rezoliucija | 3840 × 2160 |
| Min. apšvietimas | Color: 0.01 Lux @ (F2.0, AGC ON),B/W: 0 Lux with IR |
| Užrakto greitis | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Kampo keitimas | Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360° |
Lęšis
| Lęšio tipas | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 113°, vertical FOV 62°, diagonal FOV 134° 4 mm, horizontal FOV 90°, vertical FOV 49°, diagonal FOV 108° |
| Lęšio montavimas | M12 |
| Rainelės tipas | Fixed |
| Diafragama | F2.0 |
DORI
| DORI | 2.8 mm, D: 79 m, O: 31 m, R: 15 m, I: 7 m 4 mm, D: 102 m, O: 40 m, R: 20 m, I: 10 m |
Apšvietimas
| Papildomo apšviešimo tipas | IR,White Light |
| Papildomo apšvietimo diapazonas | Up to 30 m |
| Išmanus papildomas apšvietimas | Yes |
| IR bangos ilgis | 850 nm |
Vaizdas
| Pagrindinis srautas | 50 Hz: 12.5 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Antrinis srautas | 50 Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360) |
| Vaizdo suspaudimas | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG |
| Vaizdo bitų greitis | 32 Kbps to 16 Mbps |
| H.264 tipas | Baseline Profile,Main Profile,High Profile |
| H.265 tipas | Main Profile |
| Bitų greičio kontrolė | CBR,VBR |
| Region of Interest (ROI) | 1 fixed region for main stream |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
Garsas
| Garso tipas | Mono sound |
| Pašalinių garsų šalinimas | Yes |
| Garso atrankos dažnis | 8 kHz/16 kHz |
| Garso suspaudimas | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Garso bitų greitis | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
Internetas
| Saugumas | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Tiesioginis vaizdo žiūrėjimas | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)),ISAPI,SDK |
| Protokolai | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Klientas | iVMS-4200,Hik-Connect |
| Naršyklė | Plug-in required live view: IE 10, IE 11, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Nuotrauka
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Diena/Naktis režimas | Day,Night,Auto,Schedule |
| Nuotraukų pagražinimas | BLC,HLC,3D DNR |
| Nuotraukos nustatymai | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Privatumo kaukė | 4 programmable polygon privacy masks |
Sąsaja
| Interneto sąsaja | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Vidinė atmintis | -F: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Įmontuotas mikrofonas | Yes |
| Perkrovimo mygtukas | -F: Yes |
Funkcijos
| Pagrindinės funckcijos | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
| Sąsaja | Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture |
Pagrindinis
| Sistemos parametrai | 12 VDC ± 25%, 0.41 A, max. 5 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 6.5 W |
| Medžiaga | Metal & Plastic |
| Dydis | Ø110 mm × 93 mm (Ø4.33″ × 3.66″) |
| Pakuotės dydis | 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″) |
| Svoris | Approx. 385 g (0.85 lb.) |
| Svoris su įpakavimu | Approx. 586 g (1.3 lb.) |
| Sandėliavimo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Darbo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Kalba | English, Ukrainian |
| Pagrindinės funkcijos | Heartbeat,anti-banding,mirror,password protection,password reset via email |
Patvirtinimai
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7 |
| Saugumas | UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 |
| Aplinkosauga | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Apsauga | IP67: IEC 60529-2013 |
| Svoris | 0,416 kg |
|---|---|
