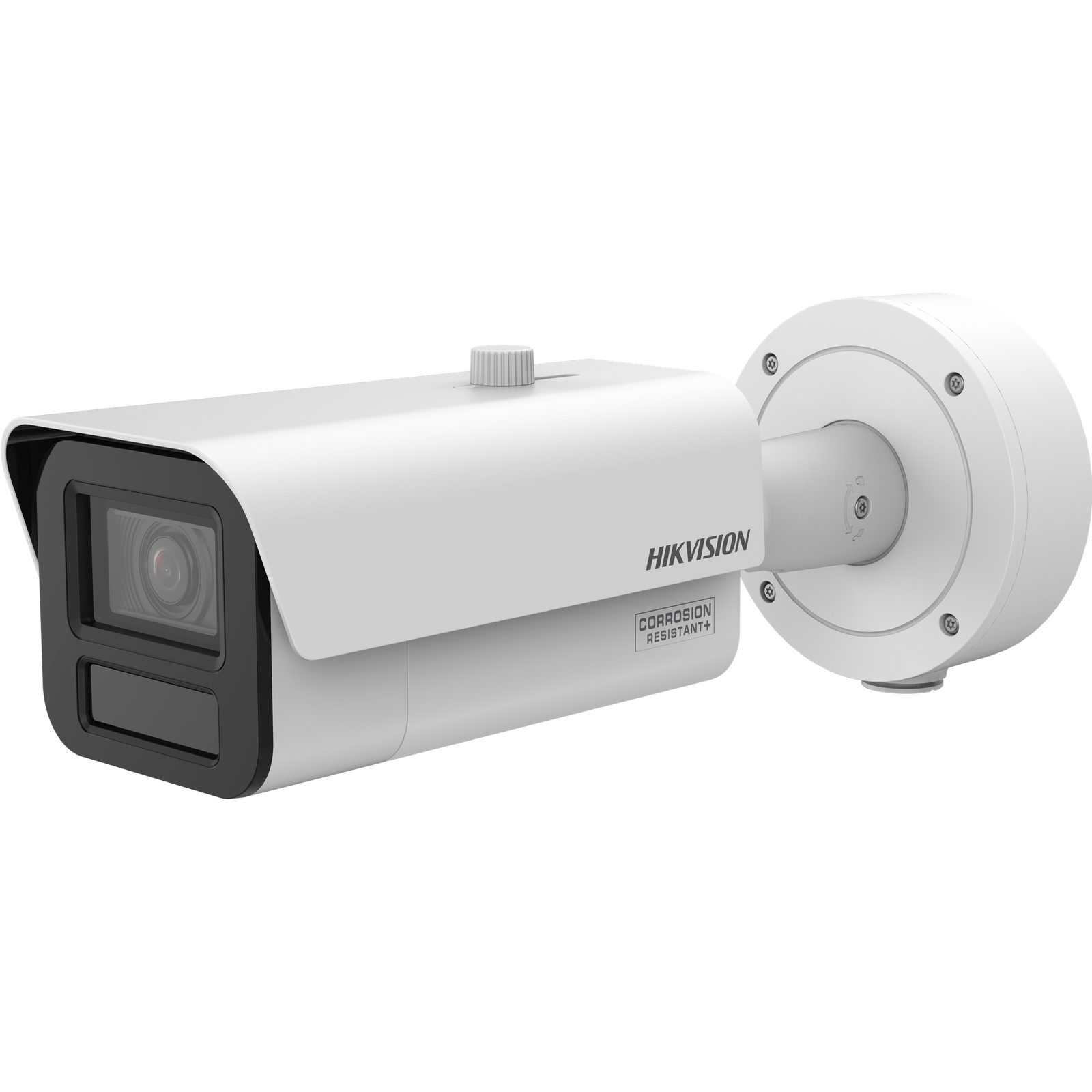

Name: Hikvision bullet iDS-2CD7A47G2/P-XZHS 2.8-12mm (balta, 4 MP, IR+LED iki 60m., ANPR, DarkFighter 2.0)
SKU: KIPIDS2CD7A47G2PXZHS
Availability: InStock

Hikvision bullet iDS-2CD7A47G2/P-XZHS 2.8-12mm (balta, 4 MP, IR+LED iki 60m., ANPR, DarkFighter 2.0)

1.324,71€(Kaina be PVM)1.602,90€(Kaina su PVM)

Liko tik 1

Aukštos kokybės vaizdai su 4 MP raiška
Puikus veikimas esant prastam apšvietimui dėl „DarkFighter 2.0“ technologijos
Aiškus vaizdas esant stipriam foniniam apšvietimui dėl 150 dB AWDR technologijos
Efektyvi H.265+ glaudinimo technologija, taupanti pralaidumą ir saugyklą
5 srautai, skirti įvairioms programoms
Atsparumas vandeniui ir dulkėms (IP67), atsparumas vandalizmui (IK10) ir atsparumas korozijai (NEMA 4X, pasirinktinai)
Aukštas kadrų dažnis: iki 2 MP @ 120 fps ir 4 MP @ 60 fps
Integruotas šildytuvas, užtikrinantis aiškų vaizdą lietingu ar snieguotu oru
Integruotas G jutiklis vibracijos aptikimui
Integruotas galios matuoklis istorinei galios statistikai
Automobilių numerių atpažinimas ir transporto priemonių atributų atpažinimas

Patvirtinimai
Apsauga nuo korozijos-Y: NEMA 4X (NEMA 250-2018)
AutomatikaEN50121-4
EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
AplinkosaugaCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
KitaPVC FREE
ApsaugaIP67: IEC 60529-2013,IK10: IEC 62262:2002
SaugumasCB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,LOA: IEC/EN 60950-1

Garso
Garso bitų greitis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Garso atrankos dažnis8 kHz/16 kHz/32 kHz/48 kHz
Garso tipasMono sound
Pašalinių garsų šalinimasYes

Camera
Diena&NaktisIR cut filter,Blue glass module (less ghost phenomenon)
Sensorius1/1.8″ Progressive Scan CMOS
Maks. rezoliucija2688 × 1520
Min. apšvietimasColor: 0.0003 Lux @ (F1.0, AGC ON),B/W: 0.0001 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
Užrakto greitis1 s to 1/100,000 s

DORI
DORI2.8 to 12 mm:D (Detect): 140.7 m, O (Observe): 55.8 m, R (Recognize): 28.1 m, I (Identify): 14.1 mThe DORI values are calculated using pixel densities for different use cases as recommended by the EN 62676-4 standard.

Išmaniosios funkcijos
Meta duomenysIntrusion detection,line crossing detection,region entrance detection,region exiting detection,road traffic
Perimeter Protection Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)Support combined event alarm triggering
Kelių eismo ir transporto priemonių aptikimasSmart Function:Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario)Support vehicle attribute detection, including vehicle type, color, brand, driving direction, etc.Support vehicle and non-vehicle countingBlocklist and allowlist: up to 10,000 recordsLPR Countries/Regions:4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regionsAccuracy (Under recommended installation and lighting conditions):License plate recognition rate ≥98%Capture rate ≥99%Driving direction accuracy rate ≥98%Vehicle Capture Speed:Front installation in checkpoint scenario: up to 120 km/hSide installation: up to 80 km/hCapture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode

Funkcijos
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,video quality diagnosis,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error),vibration detection
SąsajaUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning
Išmaniosios funkcijosscene change detection,audio exception detection,defocus detection

Pagrindinis
Rasos šalinimasYes
Device ManagementSupports adding alarm box (DS-FM2466) in the LAN to expand 6 additional input and 6 output alarm interfaces
DydisWith -Y: Ø140 mm × 377.4 mm (Ø5.5″ × 14.9″), Without -Y: Ø144.1 mm × 374.7 mm (Ø5.7″ × 14.8″)
Pagrindinės funkcijosHeartbeat,anti-banding,one-key reset,mirror,password protection,flash log
ŠildytuvasYes
Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
MedžiagaAluminum alloy body
Pakuotės dydis425 mm × 190 mm × 180 mm (16.7″ × 7.5″ × 7.1″)
MaitinimasWith -Y:three-core terminal block,12 VDC ± 20%, 2 A, max. 24 W,24 VAC ± 20%, 1.81 A, max. 23.8 W,PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.6 A to 0.45 A, max. 25.4 WWithout -Y:three-core terminal block,12 VDC ± 20%, 1.9 A, max. 22.8 W,24 VAC ± 20%, 1.8 A, max. 22.6 W,PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.50 A to 0.37 A, max. 24.2 W
Darbo sąlygos-40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing)
Sandėliavimo sąlygos-40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing)
SvorisApprox. 2390 g (5.27 lb.)
Svoris su įpakavimuApprox. 3607 g (7.96 lb.)

Apšvietimas
IR bangos ilgis850 nm
Išmanus papildomas apšvietimasYes
Papildomo apšvietimo diapazonas2.8 to 12 mm: Monitoring: 60 m;
Papildomo apšviešimo tipasIR,White Light

Nuotrauka
Diena/Naktis režimasDay,Night,Auto,Schedule,Alarm Trigger,Video Trigger
Nuotraukų pagražinimasBLC,HLC,3D DNR,Distortion Correction,Defog
Nuotraukos parametrų keitiklisYes
Nuotraukos nustatymaiRotate mode,saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
Vaizdo stabilizavimasEIS
Nuotraukos perdangaLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Privatumo kaukė8 programmable polygon privacy masks
SNR≥ 52 dB
Wide Dynamic Range (WDR)150 dB

Sąsaja
Alarm 2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
Garso1 input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,1 output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound
Interneto sąsaja1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port
Vidinė atmintisBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Galia-Y: 12 VDC, max. 100 mA
RS-485-Y: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Perkrovimo mygtukasYes
Vaizdo išvestis1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
Wiegand-Y: 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72 bit)

Lęšis
Diafragma2.8 to 12 mm: F1.0 to F1.2
Focal Length & FOV2.8 to 12 mm, horizontal FOV 91.3° to 44.2°, vertical FOV 49.3° to 24.8°, diagonal FOV 108.6° to 50.9°
FokusavimasAuto,Semi-auto,Manual
Rainelės tipasP-iris
Lęšio tipasVarifocal lens, motorized lens, 2.8 to 12 mm

Tinklas
APIISAPI,SDK,ISUP,OTAP,ONVIF (Profile S, Profile G, Profile T, Profile M)
KlientasiVMS-4200,Hik-Connect,Hik-Central
Vidinė atmintisNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets
SaugumasPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3, TPM 2.0 (FIPS 140-2 level 2), AES128/256
Tiesioginis vaizdo žiūrėjimasUp to 20 channels
Naudotojas/prievadasUp to 32 users3 user levels: administrator, operator, and user
NaršyklėPlug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Vaizdas
Bitų greičio kontrolėCBR,VBR
Penktasis srautas50 Hz: 25 fps (704 × 576, 640 × 480)60 Hz: 30 fps (704 × 480, 640 × 480)
Ketvirtas srautas50 Hz: 25 fps (704 × 576, 640 × 480)60 Hz: 30 fps (704 × 480, 640 × 480)
H.264 tipasBaseline Profile,Main Profile,High Profile
H.265 tipasMain Profile
Pagrindinis srautasMonitoring mode:50 Hz: up to 50 fps (2688 × 1520, 1280 × 720), up to 100 fps (1920 × 1080)60 Hz: up to 60 fps (2688 × 1520, 1280 × 720), up to 120 fps (1920 × 1080)*High frame rate is supported under monitoring mode only.smart mode:50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Region of Interest (ROI)4 fixed regions for each stream
Scalable Video Coding (SVC)H.264 and H.265 encoding
Antrinis srautas50 Hz: 25 fps (1280 × 720, 704 × 576, 640 × 480)60 Hz: 30 fps (1280 × 720, 704 × 480, 640 × 480)
Tikslinis apkarpymasYes
Trečias srautas50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Vaizdo bitų greitis32 Kbps to 8 Mbps
Video Compression Main stream: H.265+/H.265/H.264+/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,Fourth stream: H.265/H.264/MJPEG,Fifth stream: H.265/H.264/MJPEG
e-PTZSupport Patrol and Auto Tracking settings
