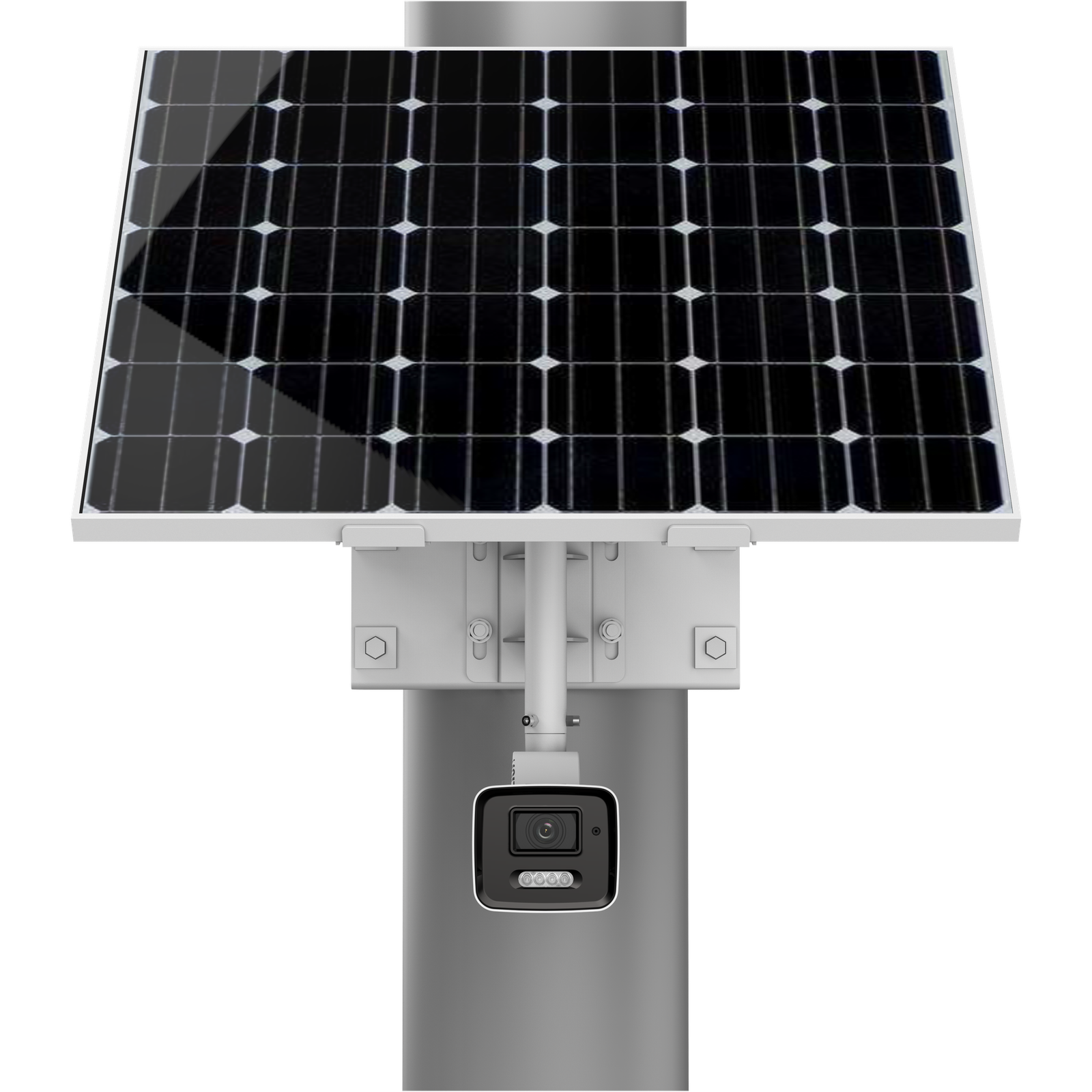

Hikvision bullet DS-2XS6A47G1-LS/C36S80 (su saulės panele, 4G)

93,62€ / 60 mėn.

2.817,72€(Kaina be PVM)3.409,44€(Kaina su PVM)

2560 × 1440@ 15 fps rezoliucija
24/7 ColorfuVu
130dB WDR
Žmonių ir mašinų atpažinimas ir klasifikacija
80 W fotovoltinė plokštė, 360 W įkraunama ličio baterija
LLTE-TDD / LTE-FDD / WCDMA / GSM 4G belaidžio tinklo perdavimas, palaiko mikro SIM kortelę
IP67
64 GB eMMC vidinė atimintis

Neturime

Gamintojas: Hikvision SKU: KIP2XS6A47G1LSC36S80

Kategorijos: IP kameros, IP vaizdo apsauga, Kameros su saulės panele

Žymos: IP kameros, IP vaizdo apsauga, Kameros su saulės panele, Main

Aprašymas
Papildoma informacija

Kamera

Sensorius	1/1.8″ Progressive Scan CMOS
Maks. rezoliucija	2560 × 1440
Min. apšvietimas	Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light
Užrakto greitis	1 s to 1/100,000 s

Lęšis

Focal Length & FOV	2.8 mm, horizontal FOV: 105.7°, vertical FOV: 57.3°, diagonal FOV: 124.9° 4 mm, horizontal FOV: 88.7°, vertical FOV: 44.7°, diagonal FOV: 107.5°
Lęšio tipas	Fixed focal lens, 2.8 and 4 mm optional
Rainelės tipas	Fixed
Diafragama	F1.0
Lęšio montavimas	M16

DORI

DORI

2.8 mm: D: 58 m, O: 23 m, R: 11 m, I: 5.5 m

4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7.5m

Apšvietimas

Papildomo apšviešimo tipas	White Light
Papildomo apšvietimo diapazonas	Up to 30 m
Išmanus papildomas apšvietimas	Yes

Vaizdas

Pagrindinis srautas	50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Antrinis srautas	50 Hz: 12.5 fps (640 × 480, 640 × 360) 60 Hz: 15 fps (640 × 480, 640 × 360)
Trečias srautas	50 Hz: 1 fps (1280 × 720, 640 × 480) 60 Hz: 1 fps (1280 × 720, 640 × 480)
Vaizdo suspaudimas	Main stream: H.264/H.265 Sub-stream: H.264/H.265/MJPEG Third Stream: H.265/H.264 *Performance mode: main stream supports H.264+, H.265+
Vaizdo bitų greitis	32 Kbps to 8 Mbps
H.264 tipas	Baseline Profile,Main Profile,High Profile
H.265 tipas	Main Profile
Bitų greičio kontrolė	CBR/VBR
SVC	H.264 and H.265 encoding
ROI	4 fixed regions for main stream

Garsas

Garso suspaudimas	G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Garso bitų greitis	64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Garso atrankos dažnis	8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Pašalinių garsų šalinimas	Yes

Internetas

Tiesioginis vaizdo žiūrėjimas	Up to 6 channels
API	Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Protokolai	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
User/Host	Up to 32 users. 3 user levels: administrator, operator and user
Saugumas	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2, TLS 1.3
Vidinė atmintis	NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Klientas	Hik-Connect (proactive mode also supports), Hik-central Professional
Naršyklė	Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+

Mobilusis ryšys

SIM kortelės tipas

MicroSIM

Dažnis

DS-2XS6A47G1-LS/C32S80:

LTE-TDD: Band38/40/41

LTE-FDD: Band1/3/5/7/8/20/28

WCDMA: Band1/5/8

GSM: 850/900/1800MHz

DS-2XS6A47G1-LS/C32S80 (US):

LTE-FDD: Band2/4/5/12/13/66/71

WCDMA: Band2/4/5

DS-2XS6A47G1-LS/C32S80 (LA):

LTE-TDD: Band38/40

LTE-FDD: Band1/2/3/4/5/7/8/12/17/28/66

WCDMA: Band1/2/3/4/5/8

GSM: 850/900/1800/1900MHz

DS-2XS6A47G1-LS/C32S80 (JP):

LTE-TDD: Band41

LTE-FDD: Band1/3/8/11/18/19/21/26/28

WCDMA: Band1/6/8/19

Standartas

DS-2XS6A47G1-LS/C32S80: LTE-TDD/LTE-FDD/WCDMA/GSM

DS-2XS6A47G1-LS/C32S80 (US): LTE-FDD/WCDMA

DS-2XS6A47G1-LS/C32S80 (LA): LTE-TDD/LTE-FDD/WCDMA/GSM

DS-2XS6A47G1-LS/C32S80 (JP): LTE-TDD/LTE-FDD/WCDMA

Nuotrauka

WDR	130 dB
Diena/Naktis režimas	Day, Night, Auto, Schedule
Nuotraukų pagražinimas	BLC, HLC, 3D DNR, Defog
Nuotraukos parametrų keitiklis	Yes
Nuotraukos nustatymai	Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
SNR	≥ 52 dB
Privatumo kaukė	4 programmable polygon privacy masks

Sąsaja

RS-485	1 RS-485 (half duplex, connect to external battery)
Garsas	1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Signalizacija	1 input(s), 1 output(s) (max. 12 VDC, 1 A)
Vidinė atmintis	Built-in memory card slot, support microSD card, up to 256 GB; Built-in 64 GB eMMC storage
Perkrovimo mygtukas	Yes
Interneto sąsaja	1 RJ45 10 M/100 M self-adaptive Ethernet port
Galia	12 VDC, max. 1000 mA

Funkcijos

Pagrindinės funckcijos

Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD error)

Išmaniosios funkcijos

Line crossing detection, Intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, scene change detection, face detection

*Smart events are only supported under performance mode.

Sąsaja

Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning

Pagrindinis

Sistemos parametrai	12 VDC ± 20%, 4-pin M8 waterproof connector 1. Standby power consumption: 53 mW 2. The average power consumption of 24 hours: 2 W (4G transmission is excluded). 3. The max. power consumption: 3.2 W
Medžiaga	Front cover: metal, body: metal, bracket: metal
Dydis	882.6 mm × 706.3 mm × 760 mm (34.8″ × 27.8″ × 29.9″) (Max. size of the camera after it is completely assembled)
Pakuotės dydis	862 mm × 352 mm × 762 mm (33.9″ × 13.9″ × 30.0″)
Svoris	Approx. 30.2 kg (66.5 lb.)
Svoris su įpakavimu	Approx. 36.3 kg (80.0 lb.)
Sandėliavimo sąlygos	-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
Darbo sąlygos	-20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
Kalba	33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Pagrindinės funkcijos	Anti-banding, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Baterija

Baterijos tipas	Lithium
Talpa	360 WH (90 WH for each battery)
Baterijos įtampa	10.8 V
Maks. Išėjimo įtampa	12.6 V
Darbo sąlygos drėgmė	Charging: -20 °C to 45 °C (-4 °F to 113 °F) Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
Baterijos veikimo laikas	More than 500 cycles
Ciklo tarnavimo laikas	Performance mode: 5 days, Proactive mode: 8 days, Standby mode: 80 days *in cloudy/rainy days (25 °C)
Baterijos svoris	Approx. 3.3 kg (7.3 lb.)
Dydis	221 mm × 84 mm × 37.3 mm (8.7″ × 3.3″ × 1.5″)

Patvirtinimai

EMC	CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); FCC (47 CFR Part 15, Subpart B); IC (ICES-003: Issue 7)
RF	CE: CE-RED (EN 301908-1,EN 301908-2,EN 301908-13, EN 301511,EN 301489-1,EN 301489-52,EN 62133); ICASA: same as CE-RED FCC ID (47 CFR Part15 Subpart C); IC ID (RSS-132 Issue 3, RSS-133 Issue 6, RSS-139 Issue 3, RSS-130 Issue 2, RSS-102 Issue 5); MIC (Article 49-6-4 and 49-6-5 the relevant articles and MIC Notice No. 1299 of the Ordinance Regulating Radio Equipment)
Saugumas	CB (IEC 62368-1:2014+A11) CE-LVD (EN 62368-1:2014/A11:2017) LOA (IEC/EN 60950-1)
Aplinkosauga	CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Apsauga	Camera: IP67 (IEC 60529-2013) Wind resistance 12 level, up to 40 m/s wind speed resistance

Svoris	25,483 kg
Gamintojas	Hikvision
