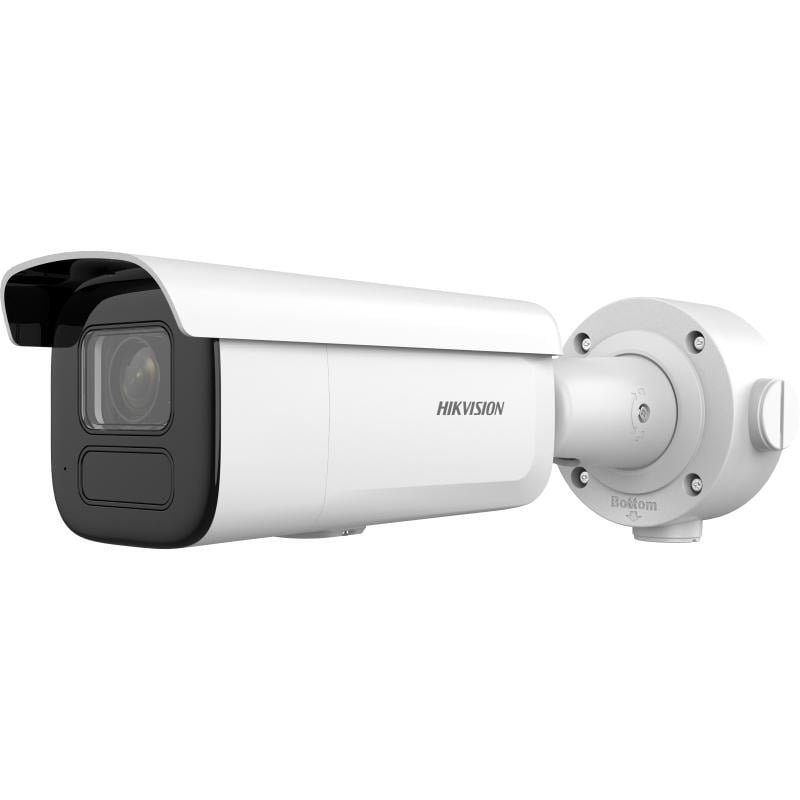

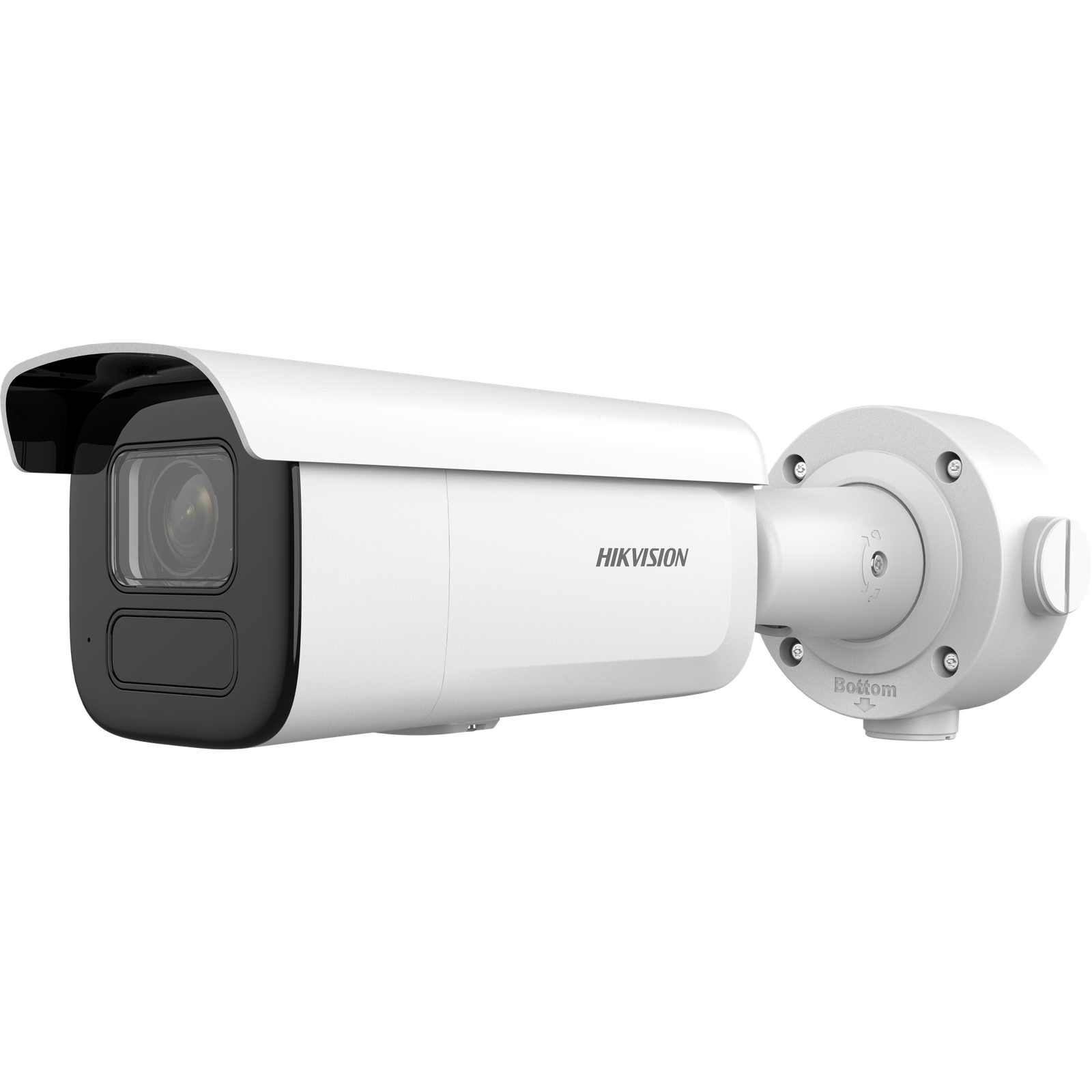

Hikvision Bullet DS-2CD3686G2T-IZS(H) F2.7–13.5 (8MP, AcuSense, Darkfighter, IR 40m)
17,89€ / 48 mėn.
435,08€(Kaina be PVM)526,45€(Kaina su PVM)
| Aiškus vaizdas esant stipriam foniniam apšvietimui dėl 120 dB tikros WDR technologijos | |
| Aukštos kokybės 8 MP raiškos vaizdas | |
| Efektyvi H.265+ glaudinimo technologija | |
| Žmonių ir transporto priemonių klasifikavimas naudojant giluminį mokymąsi | |
| Garso ir aliarmo sąsajos | |
| Atspari vandeniui ir dulkėms (IP67), atspari vandalizmui (IK10) | |
| Puikus veikimas esant silpnam apšvietimui su „DarkFighter“ technologija | |
| 3D DNR technologija užtikrina švarų ir ryškų vaizdą | |
| Motorizuotas varifokalinis objektyvas patogiam montavimui |
Neturime
Patvirtinimai
| Apsauga nuo korozijos | -Y: NEMA 4X (NEMA 250-2018) |
| EMC | FCC: 47 CFR Part 15, Subpart B,CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015 |
| Aplinkosauga | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Apsauga | IP67: IEC 60529-2013,IK10: IEC 62262:2002 |
| Saugumas | UL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017,BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005 |
Garsas
| Garso bitų dažnis | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC) |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Garso atrankos dažnis | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Pašalinių garsų šalinimas | Yes |
Camera
| Kampo keitimas | Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360° |
| Diena&Naktis | IR cut filter |
| Vaizdo jutiklis | 1/1.8″ Progressive Scan CMOS |
| Maks. rezoliucija | 3840 × 2160 |
| Min. apšvietimas | Color: 0.003 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR |
| Užrakto greitis | 1/3 s to 1/100,000 s |
DORI
| DORI | 2.7 to 13.5 mm: Wide: D: 86 m, O: 34 m, R: 17 m, I: 8 m Tele: D: 192 m, O: 76 m, R: 38 m, I: 19 m7 to 35 mm: Wide: D: 200 m O: 79 m R: 40 m I: 20 m Tele: D: 580 m O: 230 m R: 116 m I: 58 m |
Išmaniosios funkcijos
| Veido atpažinimas | Yes |
| Perimeter Protection | Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)) |
Funkcijos
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception |
| Sąsaja | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning |
| Išmaniosios funkcijos | Unattended baggage detection, object removal detection, scene change detection, audio exception detection |
Bendrieji duomenys
| Matmenys | Ø105.1 mm × 341.8 mm (Ø4.14″ × 13.5″) |
| Pagrindinės funkcijos | Heartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter |
| Kalba | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Medžiaga | Aluminum alloy body |
| Pakuotės dydis | 385 mm × 190 mm × 180 mm (15.2″ × 7.5″ × 7.1″) |
| Energija | 12 VDC ± 25%, 1.08 A, max. 13 W,Ø5.5 mm coaxial power plug,reverse polarity protection,PoE: IEEE 802.3at, Class 4, max. 15 W |
| Darbo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Sandėliavimo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Svoris | Approx. 1335 g (2.9 lb.) |
| Svoris su įpakavimu | Approx. 2161 g (4.8 lb.) |
Apšvietimas
| IR bangos ilgis | 850 nm |
| Išmanus papildomas apšvietimas | Yes |
| Papildomo apšvietimo diapazonas | 2.7 to 13.5 mm: up to 60 m; 7 to 35 mm: up to 80 m |
| Papildomo apšviešimo tipas | IR |
Nuotrauka
| Diena/Naktis režimas | Day,Night,Auto,Schedule |
| Nuotraukų pagražinimas | BLC,HLC,3D DNR |
| Nuotraukos parametrų keitiklis | Yes |
| Vaizdo nustatymai | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Privatumo kaukė | 4 programmable polygon privacy masks |
| SNR | ≥ 52 dB |
| Wide Dynamic Range (WDR) | 120 dB |
Sąsaja
| Alarm | 3 inputs, 3 outputs (max. 24 VDC/24 VAC, 1 A) |
| Garsas | 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Interneto sąsaja | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Vidinė atmintis | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB |
| Išėjimo galia | 12 VDC, max. 100 mA (supported by all power supply types) |
| Perkrovimo mygtukas | Yes |
Objektyvas
| Diafragma | 2.7 to 13.5 mm: F1.4; 7 to 35 mm: F1.6 |
| Focal Length & FOV | 2.7 to 13.5 mm: horizontal FOV 108° to 46°, vertical FOV 58° to 26°, diagonal FOV 127° to 52°;7 to 35 mm: horizontal FOV 42° to 15°, vertical FOV 23° to 9°, diagonal FOV 49° to 17° |
| Rainelės tipas | Auto-iris |
| Lęšio montavimas | 2.7 to 13.5 mm: Ø14; 7 to 35 mm: Integrated |
| Objektyvo tipas | Varifocal lens, motorized lens, 2.7 to 13.5 mm and 7 to 35 mm optional |
Tinklas
| API | Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
| Klientas | iVMS-4200,Hik-Connect,Hik-Central |
| Vidinė atmintis | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Protokolai | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, ARP, SNMP, ISUP, WebSocket, WebSockets |
| Saugumas | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Tiesioginis vaizdo žiūrėjimas | Up to 6 channels |
| Naudotojas/prievadas | Up to 32 users3 user levels: administrator, operator, and user |
| Naršyklė | Plug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+,Local service: Chrome 57.0+, Firefox 52.0+ |
Vaizdas
| Bitų dažnio valdymas | CBR,VBR |
| Ketvirtas srautas | 50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) |
| H.264 tipas | Baseline Profile,Main Profile,High Profile |
| H.265 tipas | Main Profile |
| Pagrindinis srautas | 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160)30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Region of Interest (ROI) | 5 fixed regions for main stream and sub-stream |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Antrinis srautas | 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Tikslinis apkarpymas | Yes |
| Trečias srautas | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
| Vaizdo bitų dažnis | 32 Kbps to 16 Mbps |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,Fourth stream: H.265/H.264/MJPEG,*Third stream and fourth stream are supported under certain settings. |
| Svoris | 1,623 kg |
|---|---|
