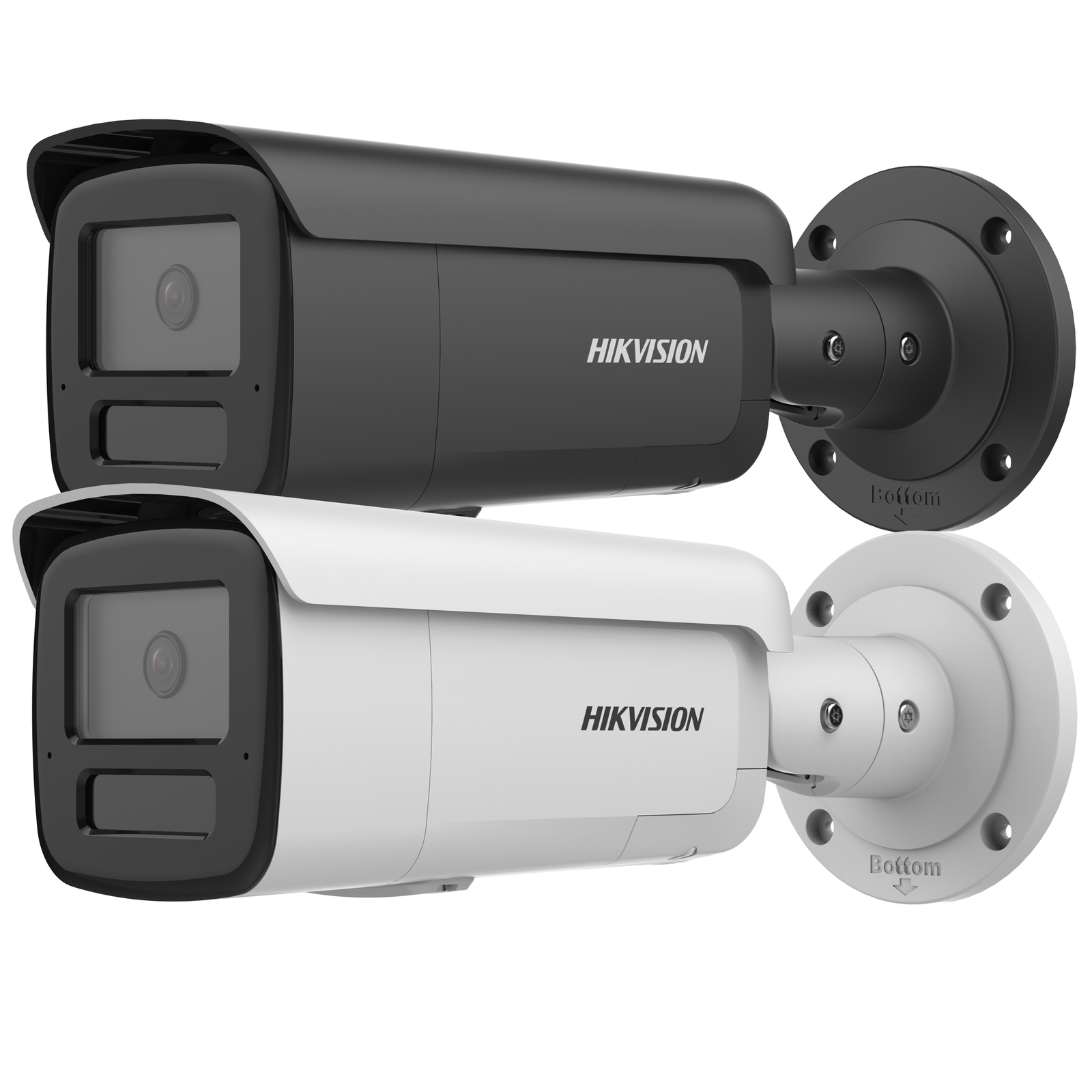

Hikvision bullet DS-2CD2T86G2H-IS2U/SL F2.8 (juoda, 8 MP, 60 m. IR, AcuSense, DarkFighter)

15,01€ / 48 mėn.

366,30€(Kaina be PVM)443,22€(Kaina su PVM) su PVM

Tipas: IP kamera
Modelis: DS-2CD2T86G2H-IS2U/SL
Spalva: Juoda
Korpusas: Bullet
Gamintojas: Hikvision
Technologija: AcuSense, DarkFighter
Integruoti mikrofonai: 2
Raiška: 4K (8 MP)
Objektyvas: 2.8 mm (~111°)
IR pašvietimas: Iki 60 m
Kompresija: H.265+
Dinaminis diapazonas: 120 dB WDR
Atsparumo klasė: IP66
Maitinimas: PoE
Atminties palaikymas: Micro SD iki 256 GB
Suderinami laikikliai: DS-1260ZJ, DS-1280ZJ-S

Gamintojas: Hikvision SKU: K2CD2T86G2HIS2USL28J

Kategorijos: Bullet kameros, IP kameros, IP vaizdo apsauga

Žymos: Bullet kameros, IP kameros, IP vaizdo apsauga, Main Prekės ženklas: Hikvision

Aprašymas
Papildoma informacija

Patvirtinimai
EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7,KC: KN32: 2015, KN35: 2015
AplinkosaugaCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
ApsaugaIP67: IEC 60529-2013
SaugumasUL: UL 62368-1,CB: IEC 62368-1: 2014+A11,CE-LVD: EN 62368-1: 2014/A11: 2017

Garso
Garso bitų greitis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Garso atrankos dažnis8 kHz/16 kHz/32 kHz/48 kHz
Garso tipasMono sound
Pašalinių garsų šalinimasYes

Camera
Kampo keitimasPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
Diena&NaktisIR cut filter
Sensorius1/1.8″ Progressive Scan CMOS
Maks. rezoliucija3840 × 2160
Min. apšvietimasColor: 0.0008 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
Užrakto greitis1/3 s to 1/100,000 s

DORI
DORI2.8 mm: D: 89 m, O: 35 m, R: 17 m, I: 8 m4 mm: D: 109 m, O: 43 m, R: 21 m, I: 10 m

Išmaniosios funkcijos
Veido atpažinimasYes
Perimeter Protection Line crossing, intrusion, region entrance, region exitingSupport alarm triggering by specified target types (human and vehicle)

Funkcijos
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
SąsajaUpload to FTP/NAS/memory card,notify surveillance center,trigger capture,send email,trigger alarm output,trigger recording,audible warning,strobe light
Išmaniosios funkcijosScene change detection

Pagrindinis
Dydis286.7 mm × 93.1 mm × 91.2 mm (11.3″ × 3.7″ × 3.6″)
Flashing Light/SRB model: Red and Blue Light/SL model: White Light
Pagrindinės funkcijosHeartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding
Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
MedžiagaFront cover: metal, body: metal, bracket: metal
Pakuotės dydis386 mm × 156 mm × 155 mm (15.2″ × 6.1″ × 6.1″)
Maitinimas 12 VDC ± 25%, 1.4 A, max. 17 W,Ø5.5 mm coaxial power plug,reverse polarity protection,PoE: IEEE 802.3at, Class 4, max. 18 W
Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
SvorisApprox. 1220 g (2.7 lb.)
Svoris su įpakavimuApprox. 1904 g (4.2 lb.)

Apšvietimas
IR bangos ilgis850 nm
Išmanus papildomas apšvietimasYes
Papildomo apšvietimo diapazonasUp to 60 m
Papildomo apšviešimo tipasIR

Nuotrauka
Diena/Naktis režimasDay,Night,Auto,Schedule
Nuotraukų pagražinimasBLC,HLC,3D DNR,Defog
Nuotraukos parametrų keitiklisYes
Nuotraukos nustatymaiRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Privatumo kaukė4 programmable polygon privacy masks
SNR≥ 52 dB
Wide Dynamic Range (WDR)120 dB

Sąsaja
Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Garso1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Įmontuotas mikrofonasYes, 2 built-in microphones
Įmontuotas garsiakalbisMax. power consumption: 2 W, max. sound pressure level: 10 cm: 120 dB.
Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
Vidinė atmintisBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Perkrovimo mygtukasYes

Lęšis
DiafragmaF1.0
Ryškumo gylis2.8 mm: 3.3 m to ∞4 mm: 3.8 m to ∞
Focal Length & FOV2.8 mm, horizontal FOV 105°, vertical FOV 56°, diagonal FOV 130°4 mm, horizontal FOV 90°, vertical FOV 47°, diagonal FOV 111°
Rainelės tipasFixed
Lęšio montavimasM16
Lęšio tipasFixed focal lens, 2.8 and 4 mm optional

Tinklas
APIONVIF (Profile S, Profile T, Profile G),ISAPI,SDK,ISUP
KlientasiVMS-4200,Hik-Connect,Hik-Central
Vidinė atmintisNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
SaugumasPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Tiesioginis vaizdo žiūrėjimasUp to 6 channels
Naudotojas/prievadasUp to 32 users3 user levels: administrator, operator, and user
NaršyklėPlug-in required live view: IE 10, IE 11,Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Vaizdas
Bitų greičio kontrolėCBR,VBR
H.264 tipasBaseline Profile,Main Profile,High Profile
H.265 tipasMain Profile
Pagrindinis srautas50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160)30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Region of Interest (ROI)1 fixed region for main stream and sub-stream
Scalable Video Coding (SVC)H.264 and H.265 encoding
Antrinis srautas50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Trečias srautas50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
Vaizdo bitų greitis32 Kbps to 16 Mbps
Video Compression Main stream: H.265/H.264/H.264+/H.265+,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264,*Third stream is supported under certain settings.

Svoris	1,21 kg
Gamintojas	Hikvision
