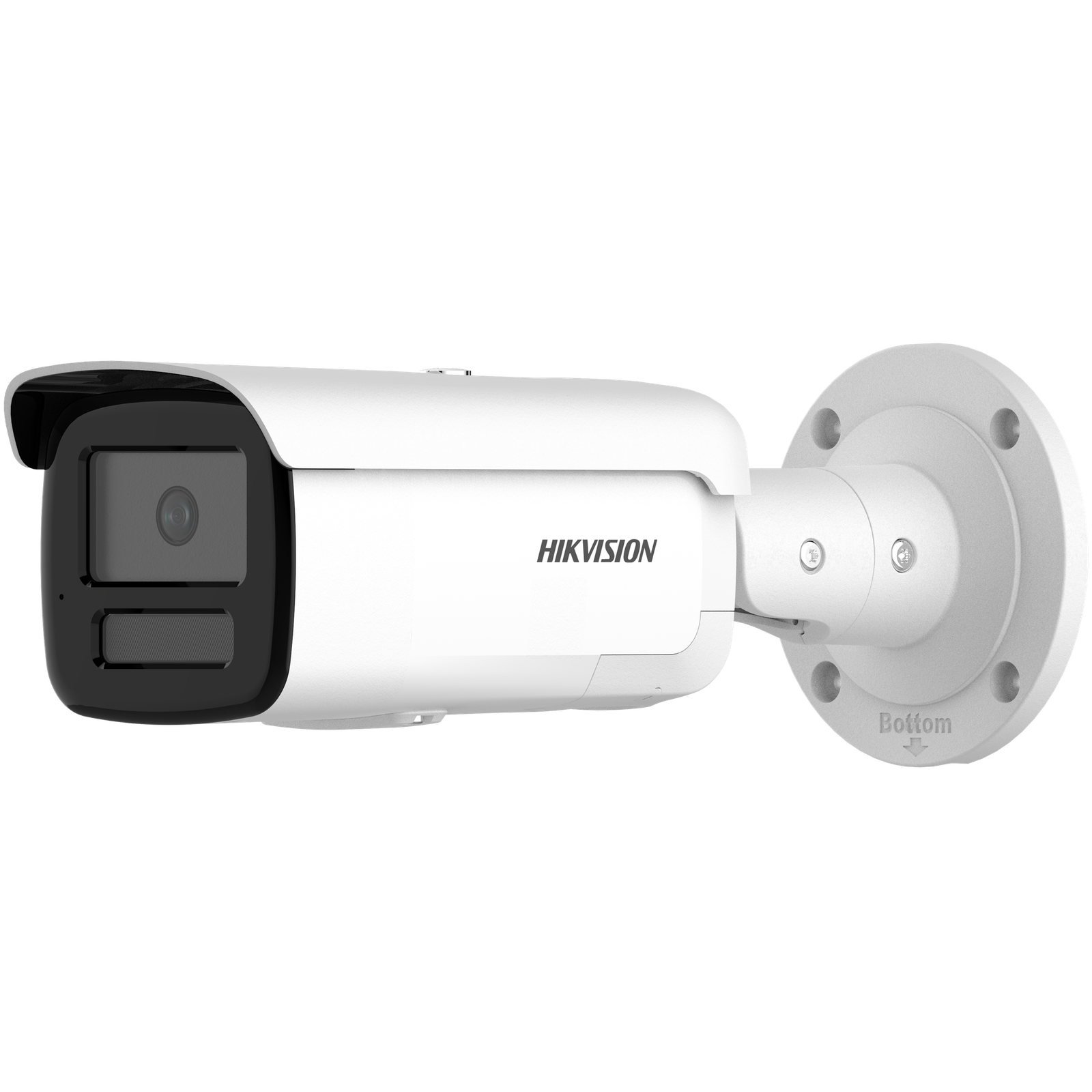

Hikvision bullet DS-2CD2T86G2-ISU/SL F6 (be bazės) (balta, 8 MP, 60 m. IR, AcuSense)
302,58€(Kaina be PVM)366,12€(Kaina su PVM)
- MP (MegaPixel): 8 MP
- Objektyvas: 6 mm, horizontalus FOV: 59°
- Technologija: AcuSense
- Integruotas mikrofonas: Taip
- Integruotas garsiakalbis: Taip
- Naktinis pašvietimas: 60 m. IR
- Vieta microSD talpai: Taip, 512GB
- Darbo sąlygos: -30 °C iki 60 °C
- Saugos lygis: IP67
- Vaizdo suspaudimas: H.265+
- WiFi: Ne
- Laikiklis/bazė (papildomai): DS-1260ZJ
- Lauko/vidaus: Lauko
| Kamera | |
| Sensorius | 1/1.8″ Progressive Scan CMOS |
| Min. apšvietimas | Color: 0.003 Lux @ (F1.6, AGC ON) |
| Užrakto greitis | 1/3 s to 1/100,000 s |
| Lėtas užraktas | Yes |
| P/N | P/N |
| Platus dinaminis nuotolis | 120 dB |
| Diena & naktis | ICR Cut |
| Kampo pasirinkimas | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Lęšiai | |
| Lęšių tipai & FOV | 2.8 mm, horizontal FOV: 102°, vertical FOV: 55°, diagonal FOV: 120° 4 mm, horizontal FOV: 87°, vertical FOV: 47°, diagonal FOV: 102° 6 mm, horizontal FOV: 51°, vertical FOV: 28°, diagonal FOV: 60° |
| Diafragma | F1.6 |
| Lęšių montavimas | M16 |
| Apšvietimas | |
| IR nuotolis | Up to 60 m |
| Bangų ilgis | 850 nm |
| Išmani pagalbinė šviesa | Yes |
| Vaizdo signalizacija | Yes |
| Video | |
| Maks. raiška | 3840 × 2160 |
| Pagrindinis srautas | 50Hz: 20fps (3840 × 2160, 3072 × 1728) 25fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 20fps (3840 × 2160, 3072 × 1728) 30fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Pagalbinis srautas | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Tretinis srautas | 50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240) 60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 360 × 240) |
| Vaizdo suspaudimas | Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Vaizdo bitų greitis | 32 Kbps to 16 Mbps |
| H.264 tipas | Baseline Profile/Main Profile/High Profile |
| H.265 tipas | Main Profile |
| H.264+ | Main Stream supports |
| H.265+ | Main Stream supports |
| Bitų dažnio kontrolė | CBR/VBR |
| SVC | Yes |
| ROI | 1 fixed region for each stream |
| Garsas | |
| Aplinkos triukšmo filtravimas | Yes |
| Garso pavyzdžių ėmimo dažnis | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Garso suspaudimas | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3 |
| Garso bitų greitis | 64Kbps(G.711ulaw/G.711alaw)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8-320Kbps(MP3) |
| Tinklas | |
| Tiesioginis vaizdo žiūrėjimas | Up to 6 channels |
| API | ONVIF(PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| Protokolai | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
| Sklandus transliavimas | Yes |
| Naudotojas/Transliuotojas | Up to 32 users. 3 user levels: administrator, operator and user |
| Apsauga | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.2, WSSE and digest authentication for ONVIF |
| Tinklo saugykla | microSD/SDHC/SDXC card (256 GB) local storage, and NAS(NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Klientas | iVMS-4200, Hik-Connect, Hik-Central |
| Interneto naršyklės | Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+ |
| Vaizdas | |
| Dienos/nakties jungiklis | Day, Night, Auto, Schedule |
| Vaizdo gerinimas | BLC, HLC, 3D DNR |
| Vaizdo nustatymų jungiklis | Yes |
| Vaizdo nustatymai | Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Sąsaja | |
| Signalizacija | 1 input, 1 output (max. 24 VDC, 1 A or max. 24 VAC, 1 A) |
| Garsas | 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium; 1 built-in speaker, 1 built-in microphone |
| Vidinė atmintis | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
| Aparatinės įrangos atkūrimas | Yes |
| Bendravimo sąsaja | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Išmanus (tradicinis algoritmas) | |
| Paprasti įvykiai | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection |
| Išmanus (Gilaus mokymosi algoritmas) | |
| Veido aptikimas | Yes |
| Perimetro apsauga | Line crossing detection, intrusion detection, region entrance detection, region exiting detection |
| Pagrindinis | |
| Sujungimo metodas | Upload to NAS/memory card, notify surveillance center, trigger record, trigger capture, strobe light, audible warning *Note: External device is required. |
| Tinklo meniu kalbos | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Pagrindinės funkcijos | Anti-flicker, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter |
| Programinės įrangos atkūrimas | Yes |
| Laikymo sąlygos | -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing) |
| Paleidimo ir veikimo sąlygos | -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing) |
| Energijos šaltinis | 12 VDC ± 25%; PoE: 802.3af, Class3 |
| Energijos suvartojimas ir galia |
12 VDC, 0.88 A, max. 10.5 W PoE: (802.3af, 36 V to 57 V), 0.34 A to 0.21 A, max. 12.5 W |
| Energijos jungtis | Ø5.5 mm coaxial power plug |
| Medžiaga | Aluminum alloy body |
| Kameros matmenys | Ø105 × 287.6 mm (Ø4.1″ × 11.3″) |
| Pakuotės matmenys | 386 × 156 × 155 mm (15.2″ × 7.5″ × 7.1″) |
| Kameros svoris | Approx. 1130 g (2.5 lb.) |
| Svoris su pakuote | Approx. 1654g (3.6 lb.) |
| Patvirtinimai | |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
| Saugumas | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014 ); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1) |
| Aplinkosauga | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Apsauga | Ingression protection: IP66 (IEC 60529-2013) |
| Svoris | 1,175 kg |
|---|---|
| Gamintojas |
