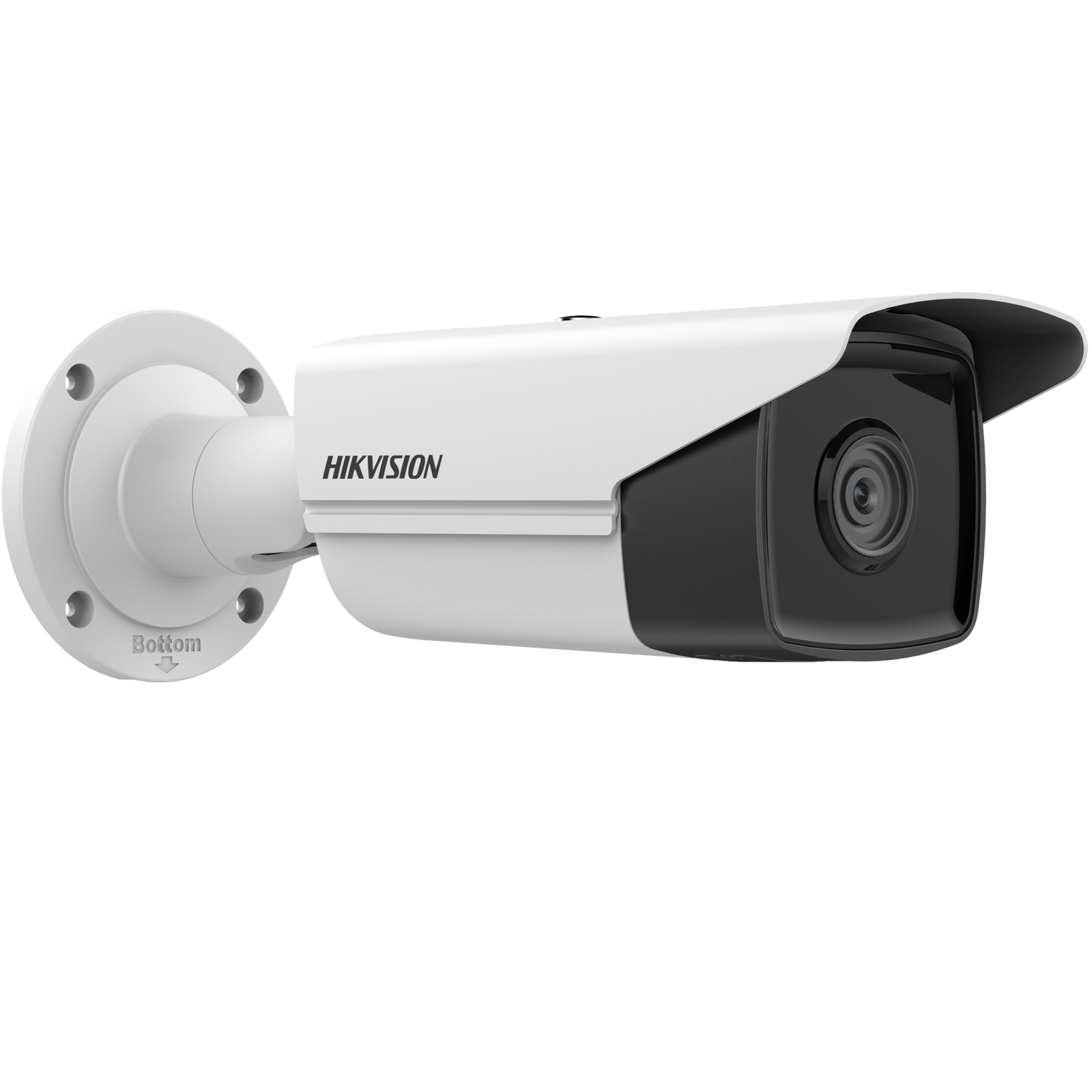

Hikvision bullet DS-2CD2T83G2-4I F2.8 (balta, 8 MP, 80 m. IR, AcuSense)
13,17€ / 36 mėn.
279,62€(Kaina be PVM)338,34€(Kaina su PVM)
| MP (MegaPixel): 8 MP | |
| Objektyvas: 2.8 mm, horizontalus FOV: 107° | |
| Technologija: AcuSense | |
| Integruotas mikrofonas: Ne | |
| Naktinis pašvietimas: 80 m. IR | |
| Vieta microSD talpai: Taip, 256GB | |
| Darbo sąlygos: -30 °C iki 60 °C | |
| Saugos lygis: IP67 | |
| Vaizdo suspaudimas: H.265+ | |
| WiFi: Ne | |
| Laikiklis/bazė (papildomai): DS-1280ZJ-S | |
| Lauko/vidaus: Lauko |
Liko tik 1. Reikia daugiau? Susisiekite su mumis.
Kamera
| Sensorius | 1/2.8″ Progressive Scan CMOS |
| Min. apšvietimas | Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Užrakto greitis | 1/3 s to 1/100,000 s |
| Lėtas užraktas | Yes |
| P/N | P/N |
| Platus dinaminis nuotolis | 120 dB |
| Diena & naktis | IR cut filter |
| Kampo pasirinkimas | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
| Maks. raiška | 3840 × 2160 |
Lęšiai
| Lęšių tipas | Fixed focal lens, 2.8, 4, and 6 mm optional |
| Židinio nuotolis & FOV | 2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128° 4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 105° 6 mm, horizontal FOV 54°, vertical FOV 29°, diagonal FOV 63° |
| Lęšio montavimas | M12 |
| Iris tipas | Fixed |
| Diafragma | F1.6 |
DORI
| DORI | 2.8 mm: D: 88 m, O: 35 m, R: 17 m, I: 9 m 4 mm: D: 108 m, O: 43 m, R: 22 m, I: 11 m 6 mm: D: 177 m, O: 70 m, R: 35 m, I: 18 m |
Apšvietimas
| Pagalbinės šviesos tipas | IR |
| Išmani pagalbinė šviesa | Yes |
| IR bangų ilgis | 850 nm |
| IR nuotolis | -2I: up to 60 m -4I: up to 80 m |
| Pagalbinės šviesos nuotolis | -2I: up to 60 m -4I: up to 80 m |
Vaizdo įrašymas
| Maks. raiška | 3840 × 2160
|
| Pagrindinis srautas | 50 Hz: 20 fps (3840 × 2160) 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Pagalbinis srautas | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Tretinis srautas | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. |
| Vaizdo suspaudimas | Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings. |
| Vaizdo bitų greitis | 32 Kbps to 16 Mbps |
| H.264 tipas | Baseline Profile/Main Profile/High Profile |
| H.265 tipas | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Bitų dažnio kontrolė | CBR/VBR |
| SVC | H.264 and H.265 encoding |
| ROI | 1 fixed region for main stream and sub-stream |
Tinklas
| Protokolai | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP |
| Tiesioginis vaizdo žiūrėjimas | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G), ISAPI, SDK |
| Naudotojas/transliuotojas | Up to 32 users. 3 user levels: administrator, operator and user |
| Saugumas | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Tinklo saugykla | NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
| Klintas | iVMS-4200, Hik-Connect, Hik-Central |
| Internetinė naršyklė | Plug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
Nuotraukos
| Nuotraukų nustatymų keitimas | Yes |
| Nuotraukų nustatymai | Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Dienos/nakties keitimas | Day, Night, Auto, Schedule |
| Nuotraukų gerinimas | BLC, HLC, 3D DNR |
| SNR | ≥ 52 dB |
| WDR | 120 dB |
Sąsajos
| Eterneto sąsaja | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Vidinė saugykla | Built-in memory card slot, support micro SD card, up to 256 GB |
| Atkūrimo mygtukas | Yes |
Įvykiai
| Paprasti įvykiai | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Veidų atpažinimas | Yes |
| Išmanūs įvykiai | Line crossing detection, intrusion detection Supports human and vehicle targets classification Face detection |
| Sujungimas | Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email |
Išmanaus mokymosi funkcijos
| Perimetro apsauga | Line crossing detection, intrusion detection Supports human and vehicle targets classification |
Pagrindinis
| Sujungimo metodas | Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email |
| Matmenys | Ø105 mm × 293 mm (Ø4.13″ × 11.53″) |
| Pakuotės matmenys | 386 mm × 156 mm × 155 mm (15.2″ × 6.2″ × 6.2″) |
| Svoris | Approx. 1090 g (2.4 lb.) |
| Svoris su pakuote | Approx. 1590 g (3.5 lb.) |
| Laikymo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Paleidimo ir veikimo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Internetinio meniu kalbos | 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Pagrindinės funkcijos | Anti-flicker, heartbeat, password reset via email, pixel counter |
| Programinės-aparatinės versija | V5.5.113 |
| Programinės įrangos atkūrimas | Yes |
| Energijos suvartojimas ir srovė | -2I: 12 VDC, 0.67 A, max. 8.0W PoE (802.3af, 36 V to 57 V), 0.25 A to 0.16 A, max. 9.0 W -4I: 12 VDC, 0.92 A, max. 11.0 W PoE (802.3af, 36 V to 57 V), 0.35 A to 0.22 A, max. 12.5 W |
| Energijos suvartojimas | 12 VDC ± 25%, reverse polarity protection PoE: 802.3af, Class 3 |
| Energijos sąsaja | Ø5.5 mm coaxial power plug |
| Galia | -2I: 12 VDC ± 25%, 0.67 A, max. 8 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.16 A, max. 9 W -4I: 12 VDC ± 25%, 0.92 A, max. 11 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W |
| Kalba | 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
Patvirtinimai
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
| Saugumas | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) |
| Aplinkosauga | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Apsauga | IP67 (IEC 60529-2013) |
| Svoris | 1,117 kg |
|---|---|
