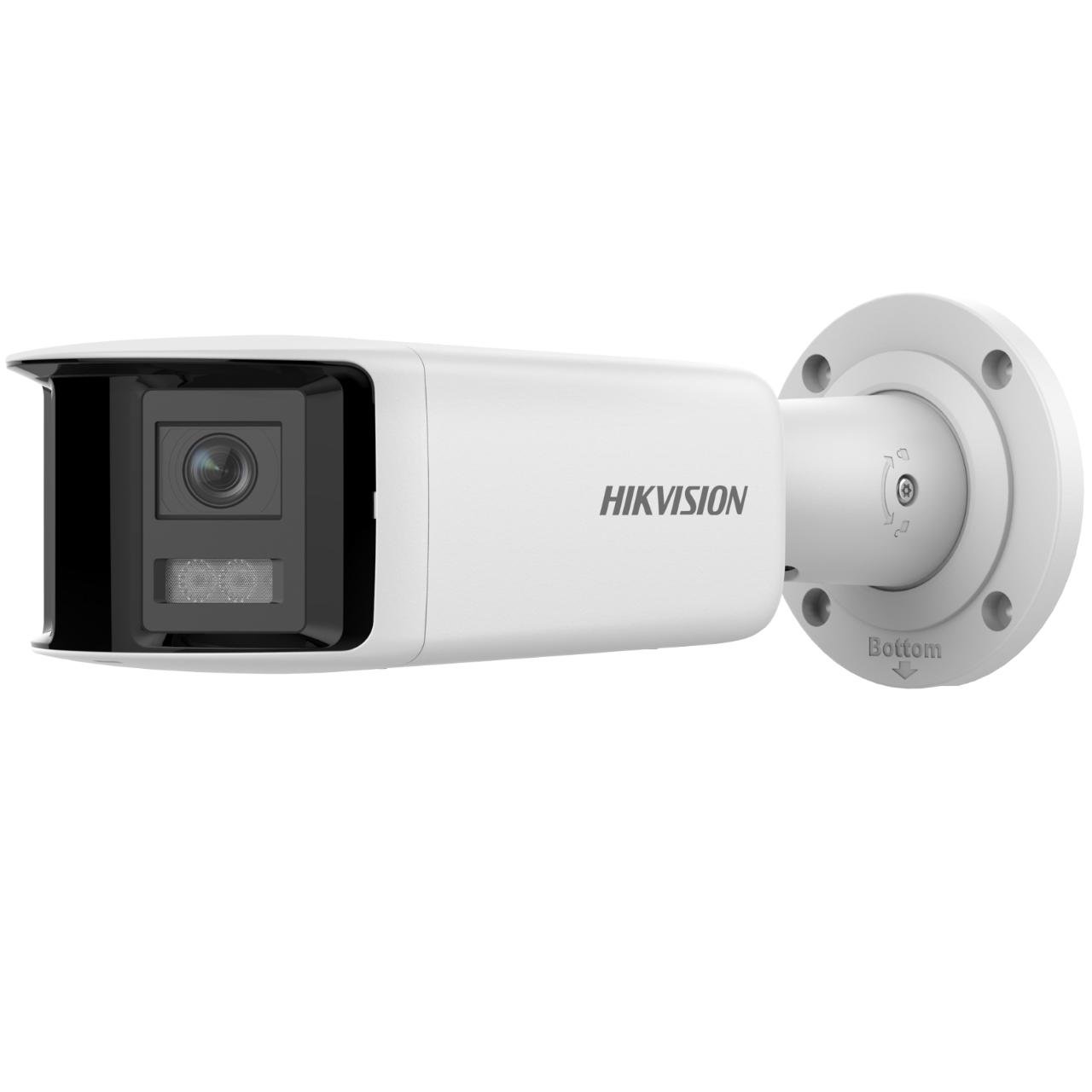

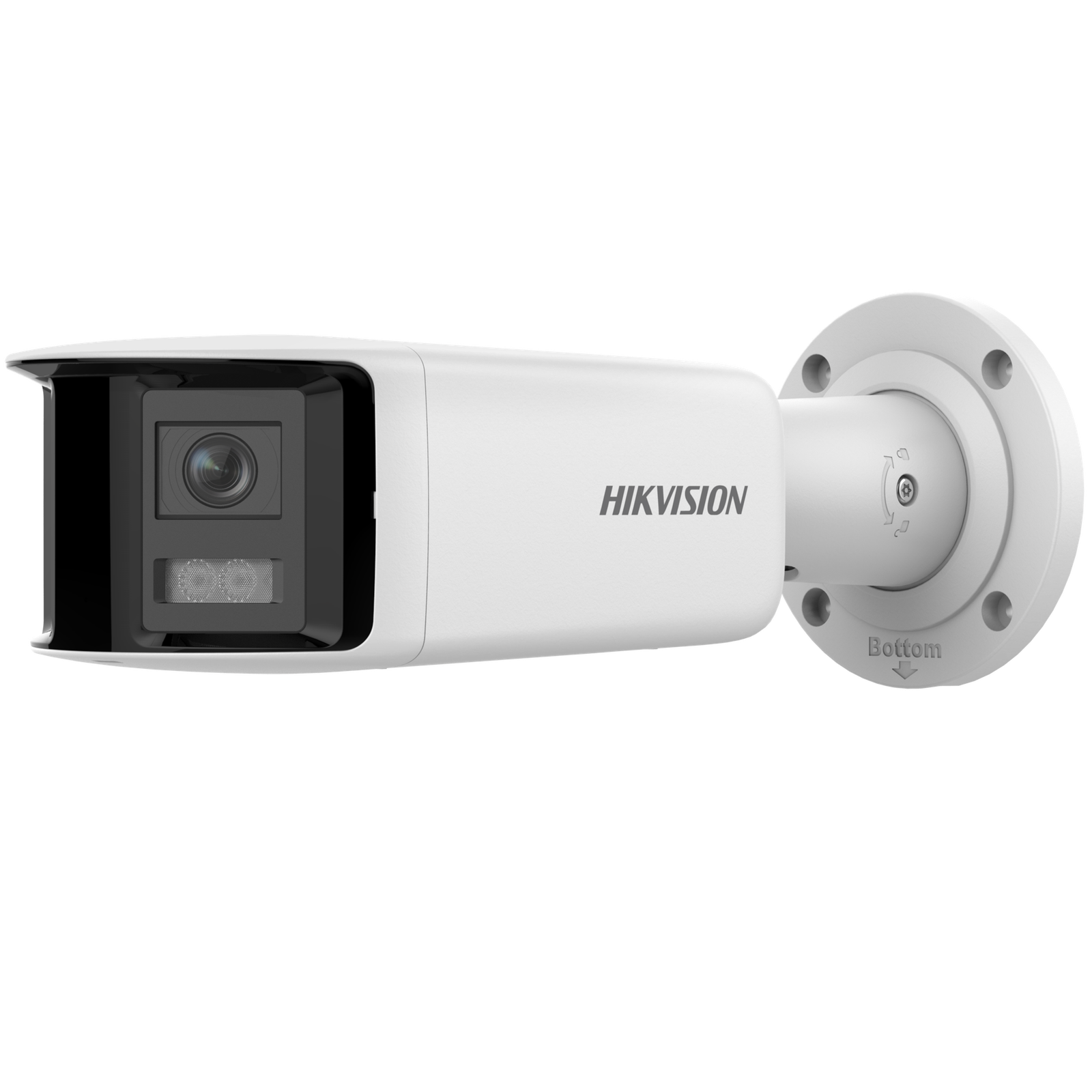

Hikvision bullet DS-2CD2T47G2P-LSU/SL(C) F2.8 (balta, 4 MP, 40 m. IR; 40 m. LED, ColorVu)
- Kamera
- Sensorius2 × 1/2.5″ Progressive Scan CMOS
- Maks. rezoliucija3040 × 1368
- Min. apšvietimasColor: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
- Užrakto greitis1/3 s to 1/100,000 s
- Kampo keitimasPan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°
- Lęšis
- Lęšio tipasFixed focal lens, dual lens, 2.8 mm
- FOV2.8 mm, horizontal FOV: 180°, vertical FOV: 81°
- Lęšio montavimasM12
- Rainelės tipasFixed
- DiafragamaF1.0
- Ryškumo gylis2 m to ∞
- DORI
- DORI2.8 mm, D: 38 m, O: 15 m, R: 7.5 m, I: 3.5 m
- Apšvietimas
- Papildomo apšviešimo tipasWhite Light
- Papildomo apšvietimo diapazonasUp to 40 m
- Išmanus papildomas apšvietimasYes
- Vaizdas
- Pagrindinis srautas
50 Hz: 25 fps (3040 × 1368)
60 Hz: 24 fps (3040 × 1368)
- Antrinis srautas
50 Hz: 25 fps (1200 × 536, 960 × 432)
60 Hz: 24 fps (1200 × 536, 960 × 432)
- Vaizdo suspaudimas
Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
- Vaizdo bitų greitis32 Kbps to 8 Mbps
- H.264 tipasBaseline Profile,Main Profile,High Profile
- H.265 tipasMain Profile
- Bitų greičio kontrolėCBR,VBR
- SVCH.264 and H.265 encoding
- ROI1 fixed region(s) for main stream
- Garsas
- Garso tipasMono sound
- Garso suspaudimasG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Garso bitų greitis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Garso atrankos dažnis8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Pašalinių garsų šalinimasYes
- Internetas
- ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Websocket, Websockets
- Tiesioginis vaizdo žiūrėjimasUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- SaugumasPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
- Vidinė atmintis
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- KlientasiVMS-4200,Hik-Connect,Hik-Central
- Naršyklė
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+,
Local service: Chrome 57.0+, Firefox 52.0+
- Nuotrauka
- Nuotraukos parametrų keitiklisYes
- Nuotraukos nustatymaiSaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Diena/Naktis režimasDay,Night,Auto,Schedule
- WDR130 dB
- SNR≥ 52 dB
- Nuotraukų pagražinimasBLC,HLC,3D DNR
- Sąsaja
- Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
- Vidinė atmintis
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
- Įmontuotas mikrofonasYes
- Įmontuotas garsiakalbisMax. power consumption: 1 W, max. sound pressure level: 10 cm: 97 dB.
- Garsas
1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Signalizacija1 input(s), 1 output(s) (max. 24 VDC/24 VAC, 1 A)
- Perkrovimo mygtukasYes
- Funkcijos
- Pagrindinės funckcijosMotion detection (support alarm triggering by specified target types (human and vehicle)),alarm input and output,flashing alarm light output, audible alarm output, exception
- Išmaniosios funkcijos
Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)),
Scene change detection
- SąsajaUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,white light flashing
- Pagrindinis
- Sistemos parametrai
12 VDC ± 25%, 0.88 A, max. 10.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
- MedžiagaFront cover: metal, body: metal, bracket: metal
- Dydis118.6 mm × 105.1 mm × 306.5 mm (4.7″ × 4.1″ × 12.1″)
- Pakuotės dydis405 mm × 190 mm × 180 mm (16″ × 7.5″ × 7.1″)
- Approx. 1400 g (3.1 lb.)
- Svoris su įpakavimuApprox. 2100 g (4.6 lb.)
- Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Pagrindinės funkcijosAnti-banding, heartbeat, mirror, flash log, pixel counter
- Flashing LightYes
- Patvirtinimai
- EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7
- Saugumas
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017
- Aplinkosauga
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- ApsaugaIP67: IEC 60529-2013
