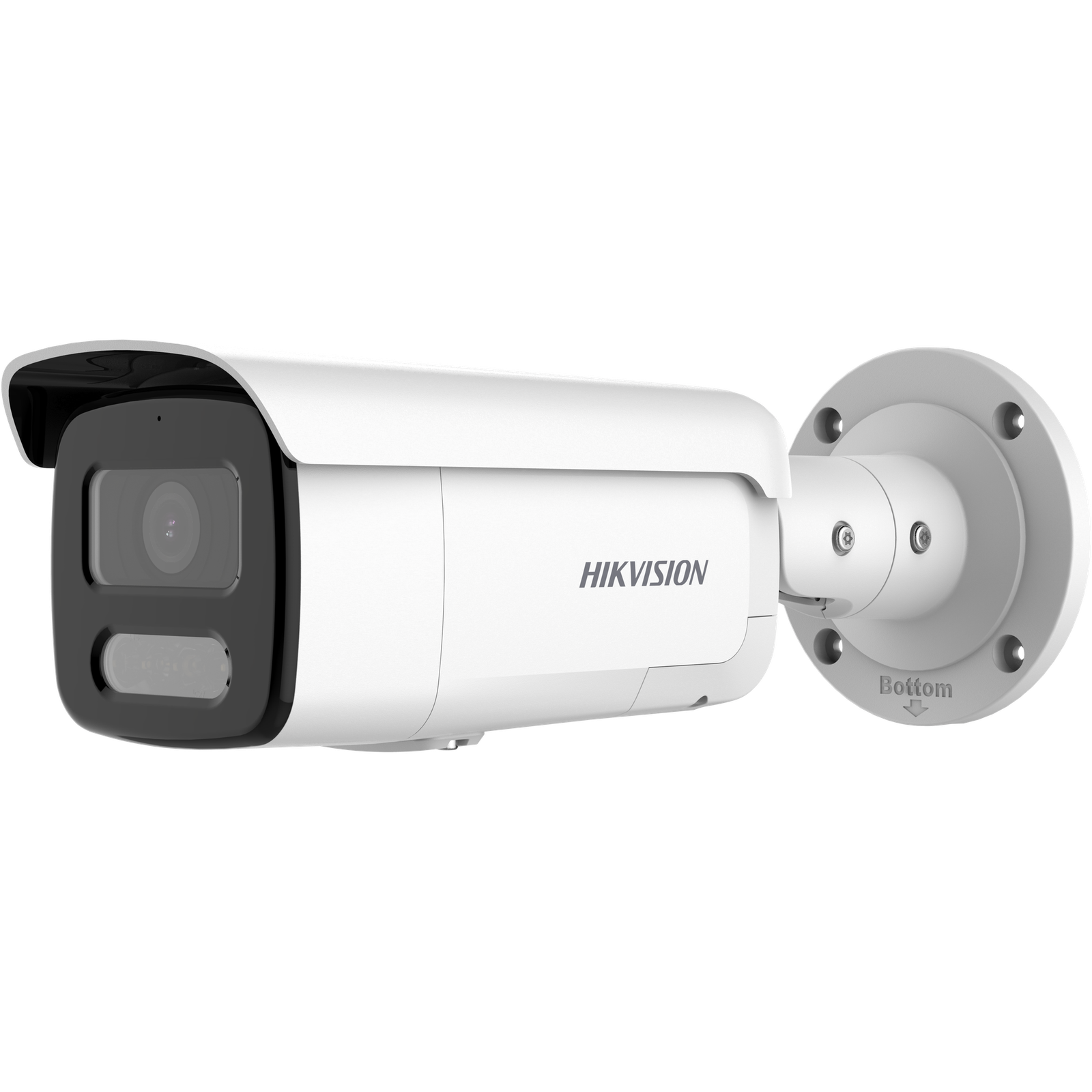

Hikvision bullet DS-2CD2T47G2-LSU/SL F2.8 (balta, 4 MP, 60 m. LED, ColorVu)
13,30€ / 36 mėn.
282,50€(Kaina be PVM)341,82€(Kaina su PVM)
| MP (MegaPixel): 4 MP | |
| Objektyvas: 2.8 mm, horizontalus FOV: 112° | |
| Technologija: ColorVu | |
| Integruotas mikrofonas: Ne, yra mikrofono įvestis | |
| Integruotas garsiakalbis: Ne, yra garso įvestis | |
| Naktinis pašvietimas: 60 m. LED | |
| Vieta microSD talpai: Taip, 512GB | |
| Darbo sąlygos: -30 °C iki 60 °C | |
| Saugos lygis: IP67 | |
| Vaizdo suspaudimas: H.265+ | |
| WiFi: Ne | |
| Laikiklis/bazė (papildomai): DS-1280ZJ-S | |
| Lauko/vidaus: Lauko |
Neturime
Kamera
| Sensorius | 1/1.8″ Progressive Scan CMOS |
| Maks. raška | 2688 × 1520 |
| Min. apšvietimas | Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Užrakto greitis | 1/3 s to 1/100,000 s |
| Kampo pasirinkimas | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
Lęšiai
| Židinio nuotolis & FOV | 2.8 mm, horizontal FOV 111.9°, vertical FOV 60.5°, diagonal FOV 133.6° 4 mm, horizontal FOV 95.2°, vertical FOV 50.6°, diagonal FOV 114.7° 6 mm, horizontal FOV 58.4°, vertical FOV 31°, diagonal FOV 68.7° |
| Lęšių montavimas | M16 |
| Iris tipas | Fixed |
| Diafragma | F1.0 |
| Židinio nuotolis | 2.8 mm: 3.1 m to ∞ 4 mm: 5.4 m to ∞ 6 mm: 12.1 m to ∞ |
DORI
| DORI | 2.8 mm, D: 58.2 m, O: 23.1 m, R: 11.6 m, I: 5.8 m 4 mm, D: 77 m, O: 30.5 m, R: 15.4 m, I: 7.7 m 6 mm, D: 115.6 m, O: 45.9 m, R: 23.1 m, I: 11.6 m |
Apšvietimas
| Pagalbinė balta šviesa | White light |
| Pagalbinės šviesos nuotolis | Up to 60 m |
| Išmani pagalbinė šviesa | Yes |
Vaizdo įrašymas
| Pagrindinis srautas | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Pagalbinė šviesa | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Tretinis srautas | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. |
| Vaizdo suspaudimas | Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings. |
| Vaizdo bitų greitis | 32 Kbps to 8 Mbps |
| H.264 tipas | Baseline Profile/Main Profile/High Profile |
| H.265 tipas | Main Profile |
| Bitų greičio kontrolė | CBR/VBR |
| SVC | H.265 and H.264 encoding |
| ROI | 1 fixed region for main stream and sub-stream |
Garsas
| Garso suspaudimas | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC |
| Garso bitų greitis | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC) |
| Garso pavyzdžių ėmimo dažnis | 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Aplinkos triukšmo filtravimas | Yes |
Tinklas
| Protokolai | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP |
| Tiesioginis vaizdo žiūrėjimas | Up to 6 channels |
| API | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| Naudotojas/transliuotojas | Up to 32 users. 3 user levels: administrator, operator and user |
| Saugumas | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| tinklo saugykla | NAS (NFS, SMB/CIFS), auto network replenishment (ANR), MicroSD/SDHC/SDXC card (256 GB) local storage Together with high-end Hikvision memory card, memory card encryption and health detection are supported |
| Klientas | iVMS-4200, Hik-Connect, Hik-Central |
| Internetinė naršyklė | Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
Nuotraukos
| Nuotraukų parametrų keitimas | Yes |
| Nuotraukų nustatymai | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
| Dienos/nakties keitimas | Auto, Schedule |
| WDR | 130 dB |
| SNR | ≥ 52 dB |
| Nuotraukų gerinimas | BLC, HLC, 3D DNR |
Sąsajos
| Eterneto sąsajos | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Vidinė saugykla | Built-in memory card slot, support microSD/SDHC/SDXC slot, up to 256 GB |
| Įmontuotas mikrofonas | Yes |
| Įmontuotas garsiakalbis | 2 W, 10 cm: 97 dB |
| Garsas | 1 input (line in), two-core terminal block , max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out),two-core terminal block , max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium |
| Įspėjamasis signalas | Visual alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
| Atkūrimo mygtukas | Yes |
Įvykiai
| Paprasti įvykiai | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Išmanūs įvykiai | Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle)) Scene change detection |
| Sujungimas | Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email, strobe light, audible warning, trigger alarm output |
Gilaus mokymosi funkcijos
| Veidų atpažinimas | Yes |
Pagrindinis
| Galia | 12 VDC ± 25%, 0.67 A, max. 8 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.16 A, max. 9 W |
| Matmenys | 289.5 mm × Ø105 mm (11.4″× Ø4.1″) |
| Pakuotės matmenys | 386 mm × 156 mm × 155 mm (15.2″ × 6.1″ × 6.1″) |
| Svoris | Approx. 1165 g (2.6 lb.) |
| Svoris su pakuote | Approx. 1639 g (3.6 lb.) |
| Laikymo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Paleidimoir veikimo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Pagrindinės funkcijos | Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
Patvirtinimai
| EMC | FCC SDoC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; RCM: AS/NZS CISPR 32: 2015; IC VoC: ICES-003: Issue 6, 2016; KC: KN 32: 2015, KN 35: 2015 |
| Saugumas | UL: UL 60950-1; CB: IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014; CE-LVD: EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014; LOA: IEC/EN 60950-1 |
| Aplinkosauga | CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006 |
| Apsauga | IP67: IEC 60529-2013 |
| Svoris | 1,204 kg |
|---|---|
| Gamintojas |
