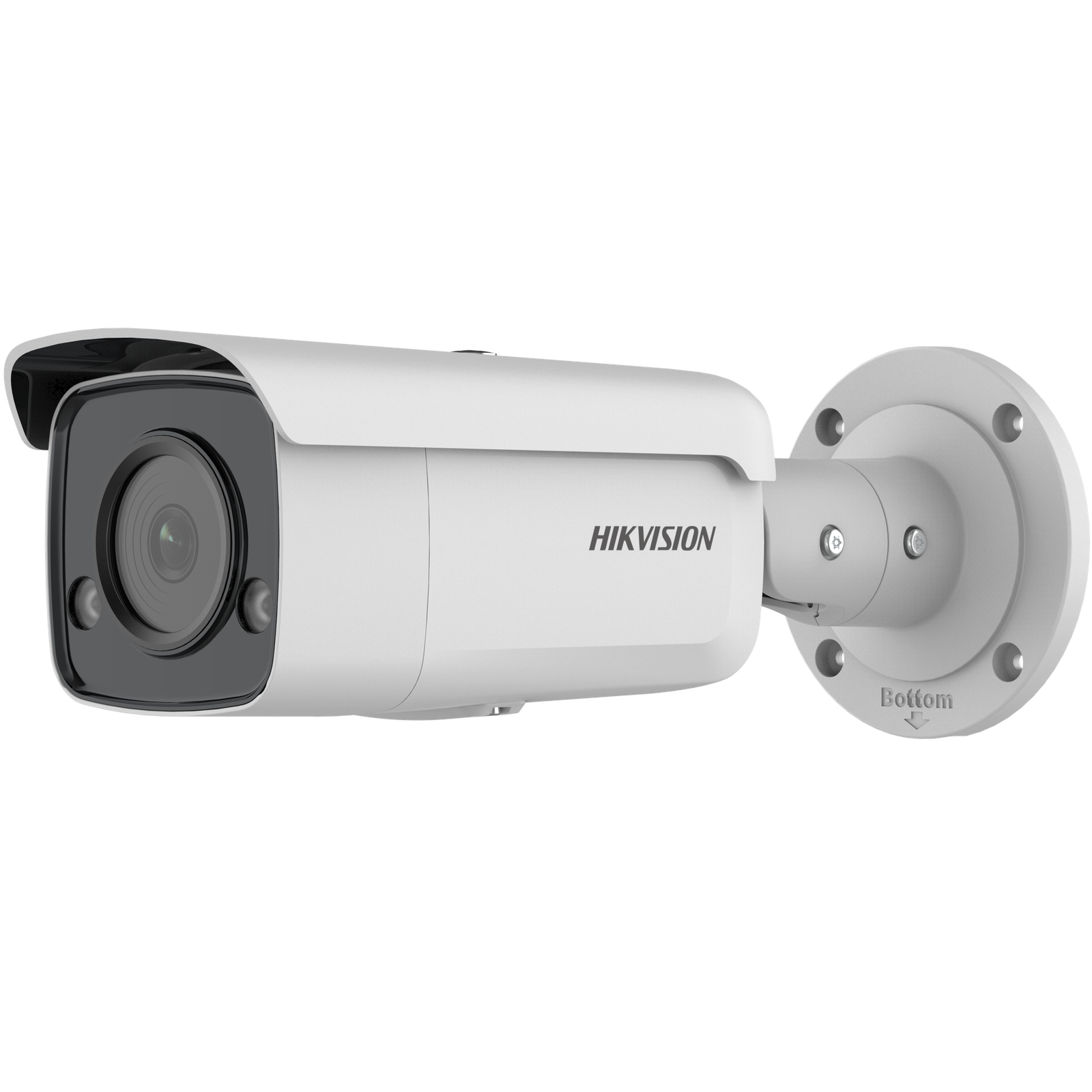

Hikvision bullet DS-2CD2T47G2-L F6 (be bazės) (balta, 4 MP, 60 m. LED, ColorVu)
282,50€(Kaina be PVM)341,82€(Kaina su PVM)
| MP (MegaPixel): 4 MP | |
| Objektyvas: 6 mm, horizontalus FOV: 58° | |
| Technologija: ColorVu | |
| Integruotas mikrofonas: Ne | |
| Naktinis pašvietimas: 60 m. LED | |
| Vieta microSD talpai: Taip, 512GB | |
| Darbo sąlygos: -30 °C iki 60 °C | |
| Saugos lygis: IP67 | |
| Vaizdo suspaudimas: H.265+ | |
| WiFi: Ne | |
| Laikiklis/bazė (papildomai): DS-1280ZJ-S | |
| Lauko/vidaus: Lauko |
Neturime
Kamera
| Sensorius | 1/1.8″ Progressive Scan CMOS |
| Min. apšvietimas | Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light |
| Užrakto greitis | 1/3 s to 1/100,000 s |
| Lėtas užraktas | Yes |
| P/N | P/N |
| Platus dinaminis nuotolis | 130 dB |
| Kampo pasirinkimas | Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360° |
Lęšiai
| Lęšio tipas | Fixed focal lens, 2.8, 4, and 6 mm optional |
| Iris tipas | Fixed |
| Focusavimo gylis | 2.8 mm, 2.5 m to ∞ 4 mm, 3.5 m to ∞ 6 mm, 7.5 m to ∞ |
| Lęšio tipas & FOV | 2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134° 4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115° 6 mm, horizontal FOV 58°, vertical FOV 31°, diagonal FOV 69° |
| Diafragma | F1.0 |
| Lęšio montavimas | M16 |
DORI
| DORI | 2.8 mm, D: 58 m, O: 23 m, R: 11 m, I: 2 m 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m 6 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m |
Apšvietimas
| Pagalbinės šviesos tipas | White Light |
| Baltos šviesos nuotolis | 60 m |
| Išmani pagalbinė šviesa | Yes |
Vaizdo įrašymas
| Maks. raiška | 2688 × 1520 |
| Pagrindinis srautas | 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Pagalbinis srautas | 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Tretinis srautas | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. |
| Vaizdo suspaudimas | Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings. |
| Vaizdo įrašų bitų greitis | 32 Kbps to 8 Mbps |
| H.264 tipas | Baseline Profile/Main Profile/High Profile |
| H.265 tipas | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Bitų dažnio kontrolė | CBR/VBR |
| SVC | H.264 and H.265 encoding |
| ROI | 1 fixed region for main stream and sub-stream |
Tinklas
| Tiesioginis vaizdo žiūrėjimas | Up to 6 channels |
| API | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| Protokolai | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP |
| Naudotojas/transliuotojas | Up to 32 users. 3 user levels: administrator, operator and user |
| Apsauga | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Tinklo talpykla | MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported |
| Klientas | iVMS-4200, Hik-Connect, Hik-Central |
| Interneto naršyklė | Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+ |
Nuotraukos
| SNR | ≥ 52 dB |
| Dienos/nakties jungiklis | Auto, Schedule |
| Nuotraukų gerinimas | BLC, HLC, 3D DNR |
| Nuotraukų parametrų keitimas | Yes |
| Nuotraukų nustatymai | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
Sąsajos
| Vidinė talpykla | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
| Aparatinės įrangos atkūrimas | Yes |
| Sujungimo sąsaja | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
Įvykiai
| Paprasti įvykiai | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Išmanūs įvykiai | Scene change detection |
Gilaus mokymosi funkcija
| Veidų atpažinimas | Yes |
| Perimetro apsauga | Line crossing detection, intrusion detection, region entrance detection, region exiting detection |
Pagrindinis
| Sujungimo metodas | Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email |
| Programinės-aparatinės įrangos atkūrimas | V5.5.112 |
| Tinklo sąsajos kalba | 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Pagrindinės funkcijos | Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
| Programinės įrangos atkūrimas | Yes |
| Laikymo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Paleidimo ir veikimo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Energijos šaltinis | 12 VDC ± 25% PoE: 802.3af |
| Energijos suvartojimas ir galia | 12 VDC, 0.7 A, max. 8.5 W PoE (802.3af, 36 V to 57 V), 0.30 A to 0.18 A, max. 10.5 W |
| Energijos sąsaja | Ø5.5 mm coaxial power plug |
| Medžiaga | Front cover: metal, back cover: metal |
| Varžtų medžiaga | SUS304 |
| Kameros matmenys | Ø105 mm × 289.5 mm (Ø4.1″ × 11.4″) |
| Paketo matmenys | 385 mm × 190 mm × 180 mm (15.2″ × 7.5″ × 7.1″) |
| Kameros svoris | Approx. 1170 g (2.4 lb.) |
| Svoris su pakuote | Approx. 1689 g (3.5 lb.) |
Patvirtinimai
| EMC | FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
| Saugumas | UL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014); BIS (IS 13252(Part 1): 2010+A1: 2013+A2: 2015); LOA (IEC/EN 60950-1) |
| Aplinkos sąlygos | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Apsauga | IP67 (IEC 60529-2013) |
| Svoris | 1,285 kg |
|---|---|
