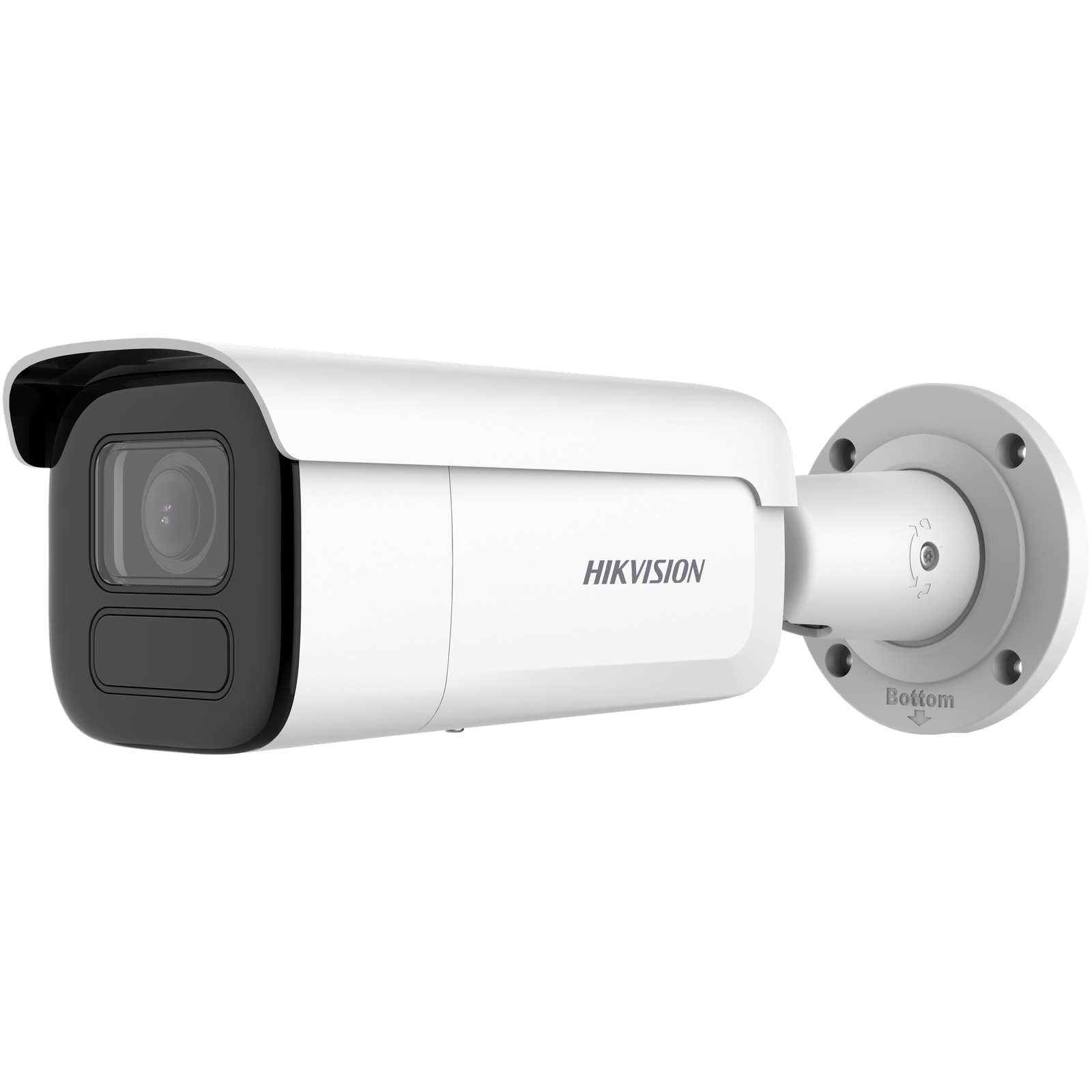

Hikvision bullet DS-2CD2646G2T-IZSY(C) F2.8-12 (balta, 4 MP, 60 m. IR, AcuSense)
363,22€(Kaina be PVM)439,50€(Kaina su PVM)
- MP (MegaPixel): 4 MP
- Objektyvas: 2.8 – 12 mm, horizontalus FOV: 108° – 30°
- Technologija: AcuSense
- Integruotas mikrofonas: Ne
- Integruotas garsiakalbis: Taip
- Naktinis pašvietimas: 60 m. IR
- Vieta microSD talpai: Taip, 256GB
- Darbo sąlygos: -30 °C iki 60 °C
- Saugos lygis: IP67
- Vaizdo suspaudimas: H.265+
- WiFi: Ne
- Laikiklis/bazė (papildomai): DS-1260ZJ
- Lauko/vidaus: Lauko
- Kamera
- Sensorius1/3″ Progressive Scan CMOS
- Maks. rezoliucija2688 × 1520
- Min. apšvietimasColor: 0.003 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR
- Day & NightIR cut filter
- Užrakto greitis1/3 s to 1/100,000 s
- Kampo keitimasPan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°
- Lęšis
- Focal Length & FOV2.8 to 12 mm, horizontal FOV 108° to 30°, vertical FOV 56° to 17°, diagonal FOV 131° to 35°
- Lęšio tipasVarifocal lens, motorized lens, 2.8 to 12 mm
- DiafragamaF1.4
- Lęšio montavimasØ14
- Rainelės tipasFixed
- DORI
- DORI
2.8 to 12 mm:
Wide: D: 64.0 m, O: 25.4 m, R: 12.8 m, I: 6.4 m
Tele: D: 190 m, O: 75.4 m, R: 38.0 m, I: 19.0 m
- Apšvietimas
- IR bangos ilgis850 nm
- Papildomo apšvietimo diapazonasUp to 60 m
- Išmanus papildomas apšvietimasYes
- Papildomo apšviešimo tipasIR
- Vaizdas
- Pagrindinis srautas
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Antrinis srautas
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Trečias srautas
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360),
*Third stream is supported under certain settings.
- Vaizdo suspaudimas
Main stream: H.265/H.264/H.265+/H.264+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264
- Vaizdo bitų greitis32 Kbps to 8 Mbps
- H.264 tipasBaseline Profile,Main Profile,High Profile
- H.265 tipasMain Profile
- Bitų greičio kontrolėCBR,VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)1 fixed region for main stream and sub-stream
- Garsas
- Pašalinių garsų šalinimasYes
- Garso atrankos dažnis8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Garso suspaudimasG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Garso bitų greitis64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Internetas
- ProtokolaiTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
- Tiesioginis vaizdo žiūrėjimasUp to 6 channels
- APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
- User/Host
Up to 32 users
3 user levels: administrator, operator, and user
- SaugumasPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Vidinė atmintis
NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- KlientasiVMS-4200,Hik-Connect,Hik-Central
- Naršyklė
Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Nuotrauka
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- Privatumo kaukė4 programmable polygon privacy masks
- Diena/Naktis režimasDay,Night,Auto,Schedule
- Nuotraukų pagražinimasBLC,HLC,3D DNR
- Nuotraukos parametrų keitiklisYes
- Nuotraukos nustatymaiRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Sąsaja
- Signalizacija1 input, 1 output (max. 24 VDC, 1 A)
- Garsas
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Interneto sąsaja1 RJ45 10 M/100 M self-adaptive Ethernet port
- Vidinė atmintis
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Perkrovimo mygtukasYes
- Funkcijos
- Pagrindinės funckcijosMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- Išmaniosios funkcijosLine crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection
- SąsajaUpload to FTP/NAS/memory card,notify surveillance center,trigger recording,trigger capture,send email,audible warning
- Išmaniosios funkcijos
- Veido atpažinimasYes
- Pagrindinis
- Sistemos parametrai
12 VDC ± 25%, 1.08 A, max. 13 W,Ø5.5 mm coaxial power plug,reverse polarity protection,
PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.36 A to 0.27 A, max. 15 W
- MedžiagaADC12
- Dydis105 mm × 105 mm × 297.9 mm (4.1″ × 4.1″ × 11.7″)
- Pakuotės dydis385 mm × 190 mm × 180 mm (15.2″ × 7.5″ × 7.1″)
- SvorisApprox. 1355 g (3 lb.)
- Svoris su įpakavimuApprox. 2011 g (4.4 lb.)
- Sandėliavimo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Darbo sąlygos-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Pagrindinės funkcijosHeartbeat,anti-flicker,mirror,flash log,password reset via email,pixel counter,privacy mask
- Kalba33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Patvirtinimai
- EMC
FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015
- Saugumas
UL: UL 62368-1,
CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017,
LOA: IEC/EN 60950-1
- Aplinkosauga
CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006
- ApsaugaIP67: IEC 60529-2013;IK10: IEC 62262:2002
- Apsauga nuo korozijosNEMA 4X (NEMA 250-2018)
