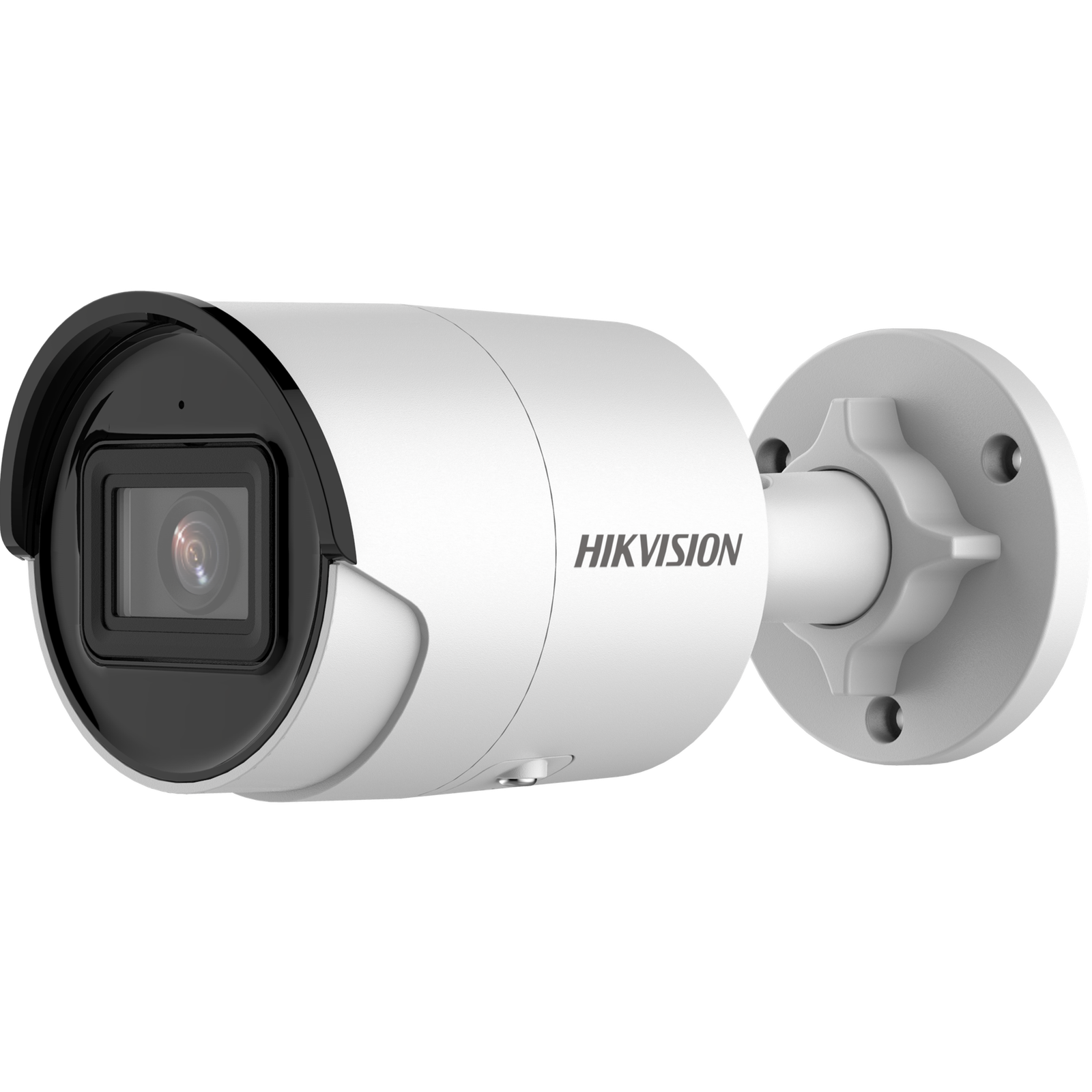

Hikvision bullet DS-2CD2086G2-IU F4 (balta, 8 MP, 40 m. IR, AcuSense)
Pavadinimas | Aprašymas |
Sensorius | 1/1.8″ Progressive Scan CMOS |
Min. apšvietimas | Color: 0.003 Lux @ (F1.6, AGC ON), 0 Lux with IR |
Užrakto greitis | 1/3 s to 1/100,000 s |
Išlaikymas | Yes |
P/N | Yes |
WDR | 120dB |
Day & Night | ICR Cut |
Kampo valdymas | Pan: 0 to 360°, tilt: 0 to 90°, rotation: 0 to 360° |
Išsijungimo atmintis | Yes |
Objektyvas ir FOV | 2.8 mm, horizontal FOV: 102°, vertical FOV: 55°, diagonal FOV: 120° 4 mm, horizontal FOV: 78°, vertical FOV: 43°, diagonal FOV: 92° 6 mm, horizontal FOV: 50°, vertical FOV: 27°, diagonal FOV: 59° |
Diafragma | F1.6 |
Montavimas | M16 |
IR atstumas | 30 m |
Bangos ilgis | 850nm |
Papildomas išmanus pašvietimas | Yes |
Maks. raiška | 3840 × 2160 |
Pagrindinis srautas | 50Hz: 20fps (3840 × 2160, 3072 × 1728) 25fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 20fps (3840 × 2160, 3072 × 1728) 30fps (2688 × 1520, 1920 × 1080, 1280 × 720) * When the main stream resolution is 3840 × 2160, max frame rate is 20 fps for all streams. |
Antrinis srautas | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
Tretinis srautas | 50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) |
Vaizdo suspaudimas | Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
Vaizdo bitų greitis | 32 Kbps to 16 Mbps |
H.264 tipas | BaseLine Profile, Main Profile, High Profile |
H.265 tipas | Main Profile |
Transliacijos tipas | Main stream/sub-stream/third stream |
SVC | Yes |
ROI | 1 fixed region for each stream |
Aplinkos triukšmų filtravimas | -U: Yes |
Garso apdorojimo greitis | -U: 8 kHz,16 kHz, 32 kHz, 44.1 kHz, 48 kHz |
Garso suspaudimas | -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3 |
Garso bitų greitis | -U: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3) |
Garso tipas | -U: Mono sound |
Transliavimas | Up to 6 channels |
API | ONVIF (PROFILE S, PROFILE G), ISAPI, SDK, Ehome |
Protocolai | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS |
Sklandus transliavimas | Yes |
User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
Apsauga | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS 1.2 |
Tinklo saugykla | microSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) |
Kliento progr. įranga | iVMS-4200, Hik-Connect, Hik-Central |
Naršyklė | Plug-in required live view: IE 8+,Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+ |
Day/Night jungiklis | Day/Night/Auto/Schedule |
Vaizdo gerinimas | BLC, HLC, 3D DNR |
Vaizdo nustatymai | Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by clcient software or web browser |
Garsas | Built-in microphone |
Vidinė saugykla | Built-in micro SD, up to 256 GB |
Perkrovimo mygtukas | Yes |
Ryšio sąsajos | 1 RJ45 10M/100M self-adaptive Ethernet port |
Pagrindiniai įvykiai | Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection |
Papildoma apsauga | Line crossing detection, intrusion detection, region entrance detection, region exiting detection (Human&Vehicle classification) |
Kliento programinės įrangos kalba | 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil) |
Pagridinės funkcijos | Mirror, password protection, privacy mask, watermark, IP address filter, one-key reset, anti-flicker, three streams, heartbeat |
Programinės įrangos perkrovimas | Yes |
Susiejimo metodas | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output, Email |
Saugyklos darbo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F).Humidity 95% or less (non-condensing) |
Startas ir darbinės sąlygos | -30 °C to 60 °C (-22 °F to 140 °F).Humidity 95% or less (non-condensing) |
Maitinimas | 12 VDC ± 25%; PoE: (802.3af, class 3) |
Suvartojimas ir srovė | 12 VDC, 0.5 A, max. 6 W PoE: (802.3af, 36V to 57V), 0.2 A to 0.13 A, max. 7.2 W |
Galios sąsaja | Φ5.5 mm coaxial power plug |
Medžiaga | Metal |
Kameros matmenys | Φ70 ×161.7 mm (Φ2.76″ × 6.37″) |
Pakuotės matmenys | 216 × 121 × 118 mm (8.5″ × 4.8″ ×4.6″) |
Kameros svoris | 500 g (1.1 lb.) |
Svoris su pakuote | 710 g (1.6 lb.) |
Apsauga | -I model: Ingress protection: IP67 (IEC 60529-2013) -IU model: Ingress protection: IP66 (IEC 60529-2013) |
EMC | CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
Saugumas | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1) |
Aplinkosauga | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
