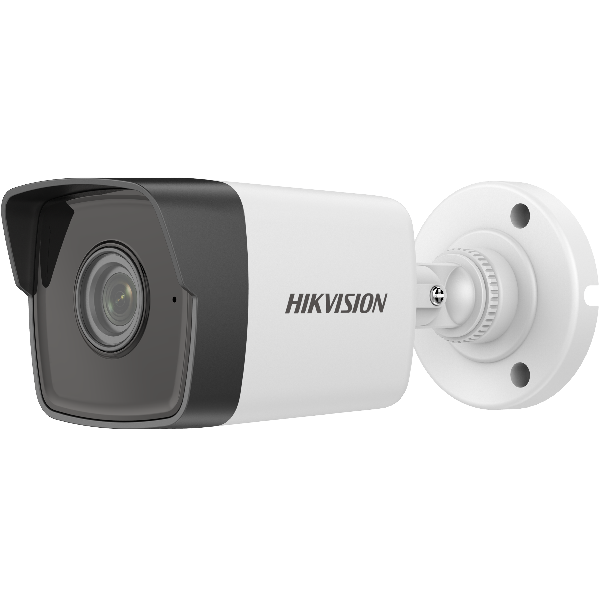

Hikvision bullet DS-2CD1043G0-I F4 (balta, 4 MP, 30 m. IR)

Sensorius

1/3″ Progressive Scan CMOS

Min. apšvietimas

Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)

Užrakto laikas

1/3s to 1/100,000 s

Objektyvas

4mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88°

Objektyvo montavimas

M12

Diena / naktis

IR cut filter

DNR

3D DNR

WDR

Digital WDR

Vaizdo suspaudimas

Main stream: H.265/H.264

Sub stream: H.265/H.264/MJPEG

H.264 tipas

Baseline Profile/Main Profile/High Profile

H.264+

Main stream supports

H.265 tipas

Main Profile

H.265+

Vaizdo sparta

32 Kbps to 8 Mbps

Maks. raiška

2560 × 1440

Kadrai per sek.

50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720)

60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)

Antrinis srautas

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)

Vaizdo nustatymai

Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser

Tinklinis talpinimas

NAS (NFS, SMB/CIFS)

Pavojaus signalo sukėlimas

Motion detection, video tampering alarm, illegal login

Protokolai

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

Pagrindinės funkcijos

One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Standartai

ONVIF (PROFILE S, PROFILE G), ISAPI

Ryšio sąsaja

1 RJ45 10M/100M self-adaptive Ethernet port

Veikimo sąlygos

-30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)

Maitinimas

12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3)

Energijos suvartojimas

12 VDC, 0.4 A, Max: 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, Max: 7 W

IR apšvietimas

Up to 30 m

IP apsaugos klasė

IP67

Svoris

280g
