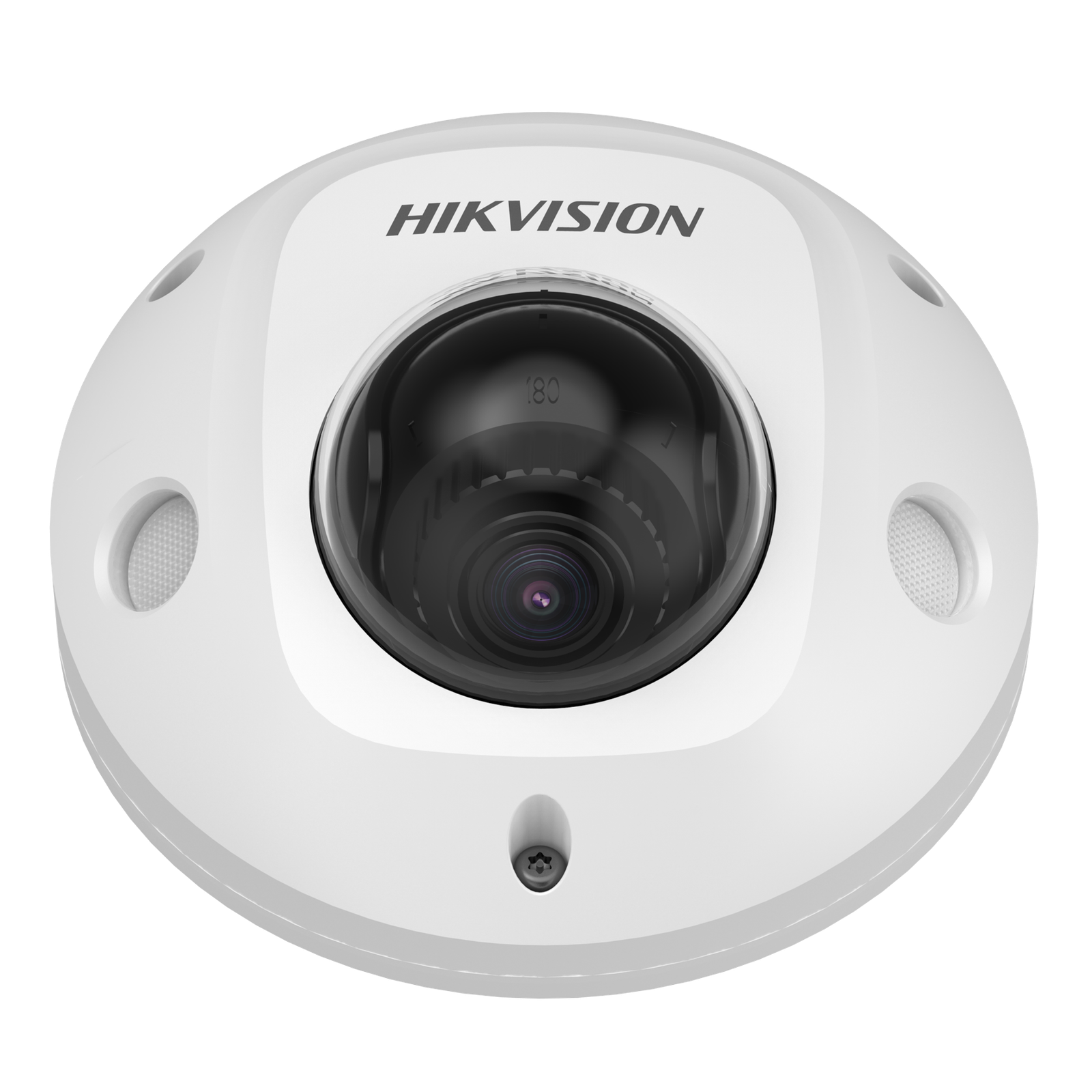

Hikvision automobilinė dome kamera DS-2XM6726G1-IM/ND(AE) F2.8

Preliminari mėnesinė įmoka nuo 13,75€ / 36 mėn.

291,22€(Kaina be PVM)352,38€(Kaina su PVM)

2 MP skiriamoji geba aiškiems vaizdams
2,8 mm fiksuotas objektyvas plačiam vaizdui
Įtaisytas mikrofonas garso įrašymui
120 dB WDR subalansuotam apšvietimui
Patvarus, turi IP67 ir IK10 įvertinimus
IR apšvietimas iki 30 metrų
Palaiko SD korteles iki 256 GB, kad būtų pakankamai vietos

Neturime

Gamintojas: Hikvision SKU: KIPDS2XM6726G1IMND28

Sensorius	1/2.8″ CMOS Progressive Scan
Min. apšvietimas	0.01Lux @ (F1.6, AGC ON), 0lux with IR
Rezoliucija	2MP
Užrakto greitis	1/3 s to 1/100,000 s
P/N	PAL: 25fps NTSC: 30fps
Day & Night	IR Cut Filter
Kampo keitimas	Pan:-30°~+30°, Tilt: 0°~75°, Rotate: 0°~ 360°
Baltos spalvos balansas	Support 4 white balance configurations: fluorescent lamp, incandescent lamp, warm lamp and natural light; Support manual/automatic white balance adjustment.

FOV	2mm/2.8mm/4mm/6mm
Focal Length & FOV	2 mm, horizontal FOV 132°, vertical FOV 77°, diagonal FOV 152° 2.8 mm, horizontal FOV 105°, vertical FOV 56°, diagonal FOV 126° 4 mm, horizontal FOV 87°, vertical FOV 44°, diagonal FOV 104° 6 mm, horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62°
Lęšio montavimas	M12
Fokusavimas	Manual focus
Max. Aperture	2mm: F2.25 2.8mm/4mm/6mm: F1.6

Papildomo apšviešimo tipas	Infrared fill light lamp
Išmanus papildomas apšvietimas	Support
IR bangos ilgis	850 nm
IR distancija	Up to 10 m

Maks. rezoliucija	1920 × 1080
Pagrindinis srautas	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Antrinis srautas	50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)
Trečias srautas	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Vaizdo suspaudimas	Main stream: H.264, H.265, H.264+, H.265+ Sub-stream: H.264, H.265, MJPEG, H.264+, H.265+ Third stream: H.264, H.265, H.264+, H.265+
Vaizdo bitų greitis	Main Stream: 256 Kbps to 12288Kbps Sub-Stream: 256 Kbps to 4096Kbps Third Stream: 256 Kbps to 12288Kbps
H.264 tipas	Baseline Profile/Main Profile/High Profile
H.265 tipas	Main Profile
Bitų greičio kontrolė	Constant Bit Rate, Variable Bit Rate
Srauto tipas	Main stream, sub stream, third stream
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Region Of Interest (ROI)	Support 2 fixed region for (main/sub) stream

Protokolai	TCP/IP, HTTP, HTTPS, DHCP, DNS, DDNS , RTSP, SNMP, QOS, ISUP5.0, ISUP2.0
Tiesioginis vaizdo žiūrėjimas	Up to 8 channels
API	ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
User Management	Up to 16 users, 3 levels: Administrator, Operator and User
Naršyklė	IE8+, Chrome45+, Edge41+, Firefox45+

Wide Dynamic Range (WDR)	120 dB
Nuotraukos nustatymai	Support rotation mode. Brightness, contrast, saturation and sharpness can be adjusted by browser and client software.
Diena/Naktis režimas	Day/Night/Auto/Schedule
SNR	> 50 dB
Nuotraukų pagražinimas	BLC, HLC, 3D DNR
Privatumo kaukė	Enables configuration, and supports drawing of up to 4 areas
Nuotraukos perdanga	Support image overlay, uploading images, enabling, coordinates, etc.
Tikslinis apkarpymas	Support (only the third stream)
Backlight Compensation(BLC)	Support up, down, left, right, center and custom backlight compensation adjustment

Vaizdo išvestis	Not supported
Interneto sąsaja	-ID: 1 RJ45 10M/100M self-adaptive Ethernet port -IM/ND, IDM: 1 four-core M12 aviation plug
SD Card Storage	Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Garsas	1 built-in mic, mono sound
Perkrovimo mygtukas	Support
Interface Type	Interpolate

People Density	Support the detection of passenger congestion in carriages.
Aptikimas	Support the detection of articles and personnel left behind in the carriage.

Susiejimo metodas

Upload to FTP, notify monitoring center, send email, trigger recording

Pagrindinės funckcijos

Motion detection, video tampering alarm

Išmaniosios funkcijos

Line crossing detection,

Intrusion detection,

Region entrance detection,

Region exiting detection,

Unattended baggage detection,

Object removal detection,

Object detection: detects faces and upload images

Scene change detection, defocus detection

Produkto matmenys	110 mm × 57.4 mm (4.3″ × 2.26″)
Pakuotės dydis	252 mm × 160 mm × 95 mm (9.9″ × 6.3″ × 3.7″)
Sistemos parametrai	PoE: 0.30 A to 0.20 A, max: 7.5 W DC: 0.83 A to 0.21 A, max:7.5 W
Produkto svoris	Approx. 452 g (1 lb.)
Svoris su įpakavimu	252 mm × 160 mm × 95 mm (9.9″ × 6.3″ × 3.7″)
Apsauga	IP67, IK10
Medžiaga iš kurios padaryta kamera	Metal
Darbo sąlygos	-30 °C to 75°C (-22 °F to 167°F), humidity 95% or less (non-condensing)
Kalba	English, French, German, Russian, Italian, Korean, Portuguese, Spanish, Turkish, Polish, Czech
Pagrindinės funkcijos	Anti-flicker, heartbeat, mirror
Programinės įrangos nustatymas iš naujo	Support
Maitinimas	-ID: 9-36V& PoE (802.3af, 36 V to 57 V) -IDM: 9-36V& PoE (802.3af, 36 V to 57 V) -IM/ND: PoE (802.3af, 36 V to 57 V)
Maitinimas	-ID: Ø 5.5 mm coaxial power plug, DC power supply, or PoE power supply -IM/ND: four-core M12 aviation plug, PoE power supply
Cable Length	50 cm

Class	Class B
EMC	FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
Saugumas	UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);
Aplinkosauga	CE-RoHS (2011/65/EU);
Electrical Safety Protection	IK10(IEC 62262:2002)
Automatika	EN50155-2017(EN 50155:2017, EN 50121-3-2:2016, IEC 60068-2-1:2007, IEC 60068-2- 2:2007, IEC 60068-2-30:2005, IEC 61373:2010); EN45545 (EN 45545-2:2013+A1:2015); E-MARK (ECE R10)
