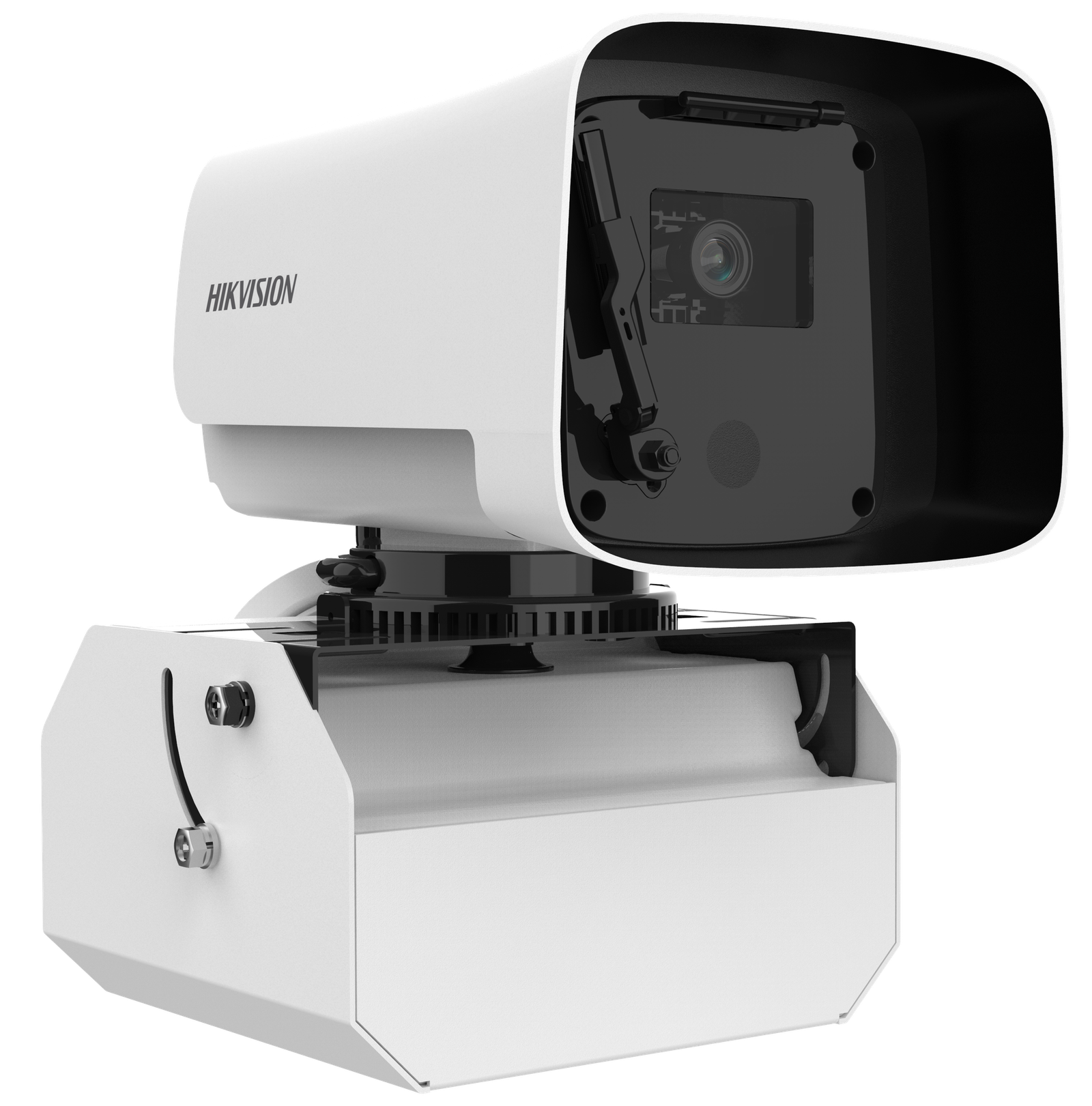

Hikvision automatiškai nusivalanti kamera iDS-2CD8A47G0/SC-ZY F2.8-12 (balta, 4MP, ColorVu)
35,64€ / 60 mėn.
1.080,05€(Kaina be PVM)1.306,86€(Kaina su PVM)
| IP kamera | |
| Modelis: iDS-2CD8A47G0/SC-ZY | |
| Forma: Bullet | |
| Objektyvas: 2.8-12mm(76.5°-53°) | |
| Rezoliucija: 4 MP | |
| Technologijos: DeepinView, ColorVu | |
| Automatinis valymas: Taip | |
| Funkcijos: ANPR (automatinis numerių atpažinimas), perimetro apsauga | |
| Dinaminis diapazonas: 140 dB | |
| Kompresija: H.265+ |
Liko tik 1. Reikia daugiau? Susisiekite su mumis.
Kamera
| Sensorius | 1/1.8″ Progressive Scan CMOS |
| Maks. rezoliucija | 2560 × 1440 |
| Min. apšvietimas | 2.8 to 12 mm: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light; 8 to 32 mm: Color: 0.002 Lux @ (F1.7, AGC ON), 0 Lux with light |
| Užrakto greitis | 1 s to 1/100,000 s |
| Day & Night |
Blue glass module (less ghost phenomenon) |
Lęšis
| Focal Length & FOV | 2.8 to 12 mm, horizontal FOV 76.5° to 53°, vertical FOV 40.4° to 30°, diagonal FOV 89° to 61.8°; 8 to 32 mm, horizontal FOV 40.3° to 14.5°, vertical FOV 22.1° to 8.2°, diagonal FOV 46.9° to 16.5°; |
| Fokusavimas | Auto,Semi-auto,Manual |
| Rainelės tipas | DC iris |
| Diafragama | 2.8 to 12 mm: F1.0; 8 to 32 mm: F1.7 |
Vaizdas
| Pagrindinis srautas | 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Antrinis srautas | 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480) |
| Trečias srautas | 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
|
| Ketvirtas srautas | 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
|
| Penktasis srautas | 50 Hz: 25 fps (704 × 576, 640 × 480) 60 Hz: 30 fps (704 × 480, 640 × 480)
|
| Vaizdo suspaudimas | Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG, Fifth stream: H.265/H.264/MJPEG |
| Vaizdo bitų greitis | 32 Kbps to 8 Mbps |
| H.264 tipas | Baseline Profile,Main Profile,High Profile |
| H.265 tipas | Main Profile |
| Bitų greičio kontrolė | CBR,VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Tikslinis apkarpymas | Yes |
| Region of Interest (ROI) | 4 fixed regions for each stream |
Internetas
| Protokolai | TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket, WebSockets |
| Tiesioginis vaizdo žiūrėjimas | Up to 20 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP |
| User/Host | Up to 32 users 3 user levels: administrator, operator, and user |
| Saugumas | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3 |
| Vidinė atmintis | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Klientas | iVMS-4200,Hik-Connect |
| Naršyklė |
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Nuotrauka
| Nuotraukos parametrų keitiklis | Yes |
| Nuotraukos nustatymai | Saturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser |
| Diena/Naktis režimas | Day,Night,Auto,Schedule,Alarm Trigger |
| Wide Dynamic Range (WDR) | 140 dB |
| Nuotraukų pagražinimas | BLC,HLC,3D DNR,Distortion Correction,Defog |
| Privatumo kaukė | 8 programmable polygon privacy masks |
| Nuotraukos perdanga | LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format. |
| Vaizdo stabilizavimas | EIS |
Sąsaja
| Interneto sąsaja | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Vidinė atmintis | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB |
| Perkrovimo mygtukas | Yes |
Funkcijos
| Pagrindinės funckcijos | Motion detection,video tampering alarm,video quality diagnosis,exception (network disconnected, IP address conflict, illegal login, abnormal restart, HDD full, HDD error) |
| Išmaniosios funkcijos | scene change detection,audio exception detection,defocus detection |
| Sąsaja | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning |
Išmaniosios funkcijos
| Multi-target-type Detection |
Supports simultaneous detection and capture of human body, face and vehicle, Gets 7 face features, Gets 13 human body features, Gets 2 vehicle features |
| Veido atpažinimas | Detects up to 120 faces simultaneously, captures up to 40 face pictures per frame simultaneously and uploads up to 10 face pictures per second, Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°, Uploads face with background and closed-up face pictures |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) |
| Meta duomenys | Intrusion detection,line crossing detection,region entrance detection,region exiting detection,face capture,multi-target-type detection |
| Kelių eismo ir transporto priemonių aptikimas |
Blocklist and allowlist: up to 10,000 records Support license plate recognition of motorcycles (only in checkpoint scenario) Support vehicle attribute detection, including vehicle type, color, brand, etc. (City Street mode is recommended.) License plate recognition rate ≥98% |
| Tunnel Event Detection | Fallen object detection, pedestrian detection, parking detection, congestion detection, construction detection |
Pagrindinis
| Sistemos parametrai | 12 VDC ± 20%, 1.55 A, max. 18.6 W,three-core terminal block, PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.53 A to 0.39 A, max. 22.5 W |
| Medžiaga | Aluminum and plastic |
| Dydis | 337.3 mm × 193.2 mm × 261.5 mm (13.28″ × 7.61″ × 10.29″) |
| Pakuotės dydis | 350 mm × 270 mm × 355 mm (13.78″ × 10.63″ × 13.98″) |
| Svoris | Approx. 2990 g (6.60 lb.) |
| Svoris su įpakavimu | Approx. 4737 g (10.45 lb.) |
| Sandėliavimo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Darbo sąlygos | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Kalba | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Pagrindinės funkcijos | Heartbeat,anti-banding,one-key reset,mirror,password protection |
| Rasos šalinimas | Yes |
Patvirtinimai
| EMC |
CE-EMC: EN 55032:2015+A11:2020+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 |
| Saugumas |
CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, LOA: IEC/EN 60950-1 |
| Aplinkosauga | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Apsauga | IP67: IEC 60529-2013 |
| Apsauga nuo korozijos | -Y: NEMA 4X (NEMA 250-2018) |
| Kita | PVC FREE |
| Svoris | 3,03 kg |
|---|---|
| Gamintojas |
