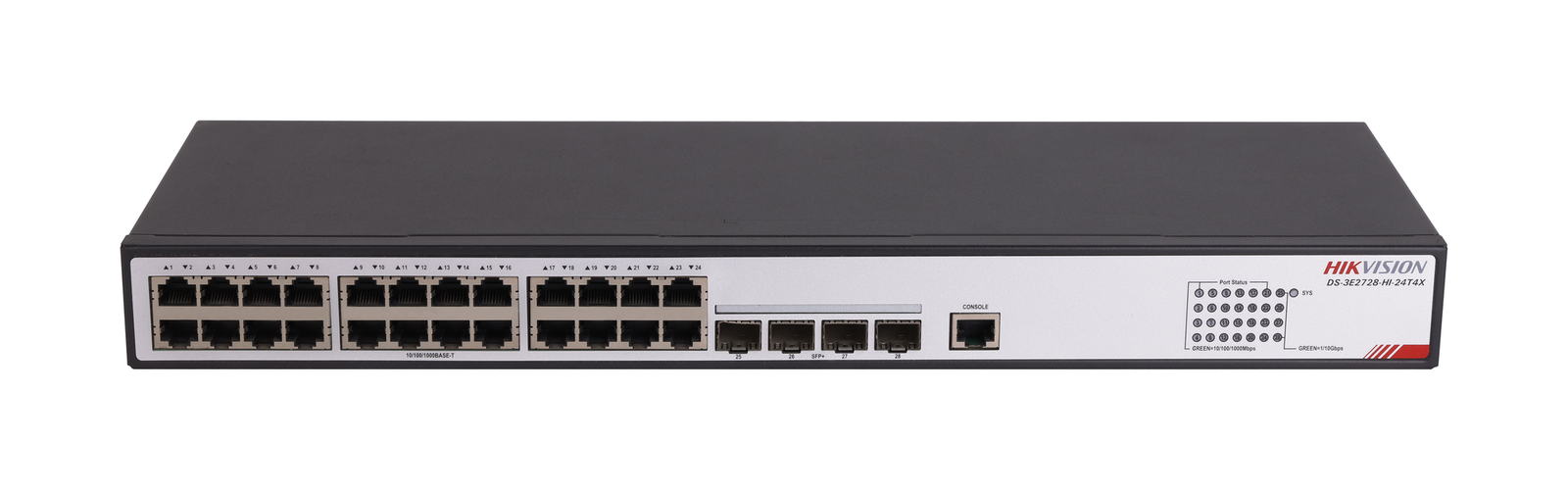

Hikvision 28 prievadų prievadų komutatorius DS-3E2728-HI-24T4X
17,94€ / 60 mėn.
543,98€(Kaina be PVM)658,22€(Kaina su PVM)
| Tipas: Komutatorius | |
| Modelis: DS-3E2728-HI-24T4X | |
| Prekės ženklas: Hikvision | |
| Valdymas: Managed | |
| Prievadai: 24 × Gigabit, 4 × SFP 10Gb | |
| Bendra talpa: 216 Gbps | |
| Perdavimo paketas: 160.71 Mpps | |
| MAC adresų lentelė: 32K | |
| Lygis: L2 | |
| Funkcijos: STP, Watchdog, 802.3ad | |
| Korpuso tipas: Rack | |
| Darbinė temperatūra: -5 °C – +45 °C |
Turime
Patvirtinimai
| Cheminių komponentų sertifikavimas | CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006) |
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020) |
| Saugumas | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition) |
Bendra
| Dydis | 440.00 mm × 160.00 mm × 43.60 mm (17.32” × 6.29” × 1.71”) |
| Bendras svoris | 3.00 kg (6.61 lb) |
| Installation Mode | Rack (equipped with mounting ears) |
| Maks. energijos suvartojimas | 37 W |
| Grynasis svoris | 2.07 kg (4.56 lb) |
| Darbo drėgmė | 10% to 95% (no condensation) |
| Darbo temperatūra | -5 °C to 45 °C (23 °F to 113 °F) |
| Energijos sunaudojimas miego režime | 17 W |
| Maitinimo šaltinis | AC：100 V～240 V AC，50/60 Hz |
| Santykinė drėgmė | 5% to 95% (no condensation) |
| Rėmas | Metal |
| Laikymo temperatūra | -40 °C to 70 °C (-40 °F to 158 °F) |
| Apsauga nuo viršįtampių | 6 kV |
Tinklo parametrai
| Vidinė cache atmintis | 2.0 Mbits |
| MAC adresų lentelė | 32 K |
| Paketų perdavimo sparta | Whole-Device Performance: 160.71 MppsPort Performance: 95.23 Mpps |
| Prievadai | 24 × Gigabit RJ45 port,4 × 10G fiber optical port |
| Perjungimo našumas | Whole-Device Performance: 216 GbpsPort Performance: 128 Gbps |
Programinės įrangos funkcijos
| ACL | ACL on Layer 2, Layer 3 and Layer 4 IPv4 and IPv6 ACLs VLAN ACL Ingress:1280.Egress:512 |
| DHCP | DHCP ClientDHCP SnoopingDHCP Snooping option82DHCP RelayDHCP Server |
| Ethernet | LLDPStatic MAC configurationLimit of number of MAC addresses to be learned (up to 32K)Port mirroring and traffic mirroringPort aggregation (up to 24 groups and 8 ports for each group)Port isolationSTP/RSTP/MSTPIEEE 802.3ad (dynamic link aggregation) and static port aggregationRRPP/ERPS (Ethernet Ring Protection Switching)VRRP |
| HPP | Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display topology information. 4. Display the alarm status. 5. Restart ports and devices. 6. Remotely upgrade the device. |
| IP maršrutas | Static routingRIPv1/v2 and RIPngOSPFv1/v2 and OSPFv3IS-ISHardware-based IPv4/IPv6 routingInter VLAN routing |
| Daugiakryptis transliavimas | IGMP V1/V2/V3 snoopingPIM SnoopingMulticast VLANIPv6 multicast setting |
| Paslaugų kokybė (QoS) | SP/WRR/SP+WRR queue scheduling 802.1p and DSCP priority mapping Port speed limit |
| Saugumas | Hierarchical user management and password protectionSSH for a secure encrypted channel for user loginSpecific IP address based FTP logging and password mechanismPrevent attacks from ARP, unknown multicast packet, broadcast packet, unknown unicast packet, TTL=1 packet, and protocol packetMAC address limitIP+MAC+PORT bindingIEEE 802.1xRadius and AAASNMPv3Broadcast suppression |
| System Management | Command line configuration via console/AUX Modem/Telnet/SSHUploading and downloading of FTP, TFTP, and Xmodem, and SFTP filesSNMP V1/V2c/V3sFlowNQANTP clockSystem operating logs |
| VLAN | 802.1Q (up to 4K VLAN) Protocol-based VLAN MAC-based VLAN GUEST VLAN VLAN mapping MVRP |
| Svoris | 2,504 kg |
|---|---|
