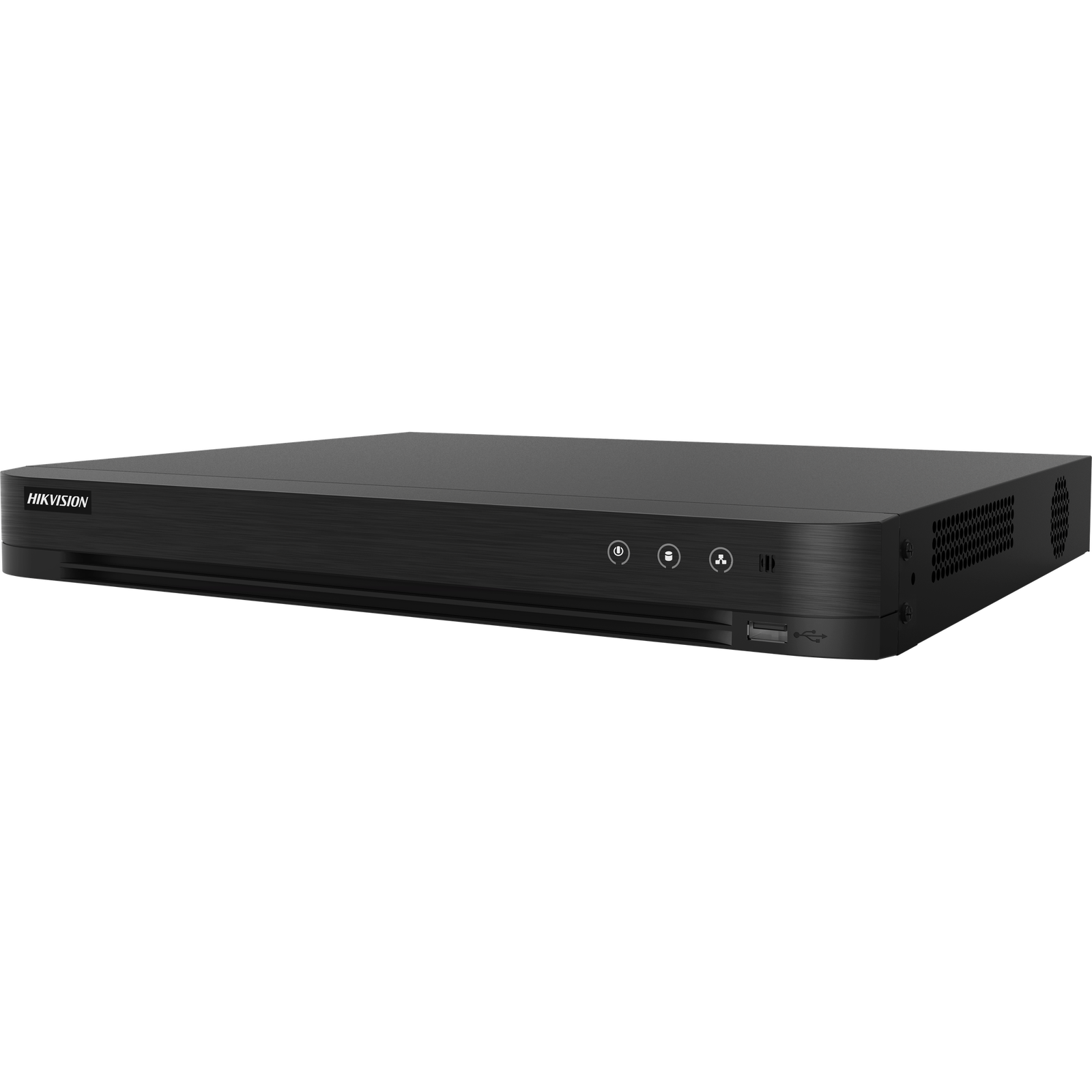

Hikvision 16 kanalų DVR iDS-7216HQHI-M2/S(C)

Main stream:

When 1080p Lite mode not enabled:

For 4 MP stream access:

4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps

For 1080p stream access:

1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

When 1080p Lite mode enabled:

4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

Sub-stream:

WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)

2-ch (up to 18-ch)

Up to 6 MP rezoliucija

Enhanced IP mode on:

8-ch (up to 24-ch), each up to 4 Mbps

;Support H.265+/H.265/H.264+/H.264 IP cameras

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

1024 × 768/60Hz, HDMI/VGA simultaneous output

1-ch, BNC (1.0 Vp-p, 75 Ω),

resolution: PAL: 704 × 576, NTSC: 704 × 480

3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps

*: The 3 MP signal input is only available for channel 1/2 of iDS-7208HQHI-M2/S, and for channel 1/2/3/4 of iDS-7216HQHI-M2/S.

1,RJ45 10M/100M/1000M self-adaptive

Ethernet jungtis

1 × USB 2.0；

1 × USB 3.0
