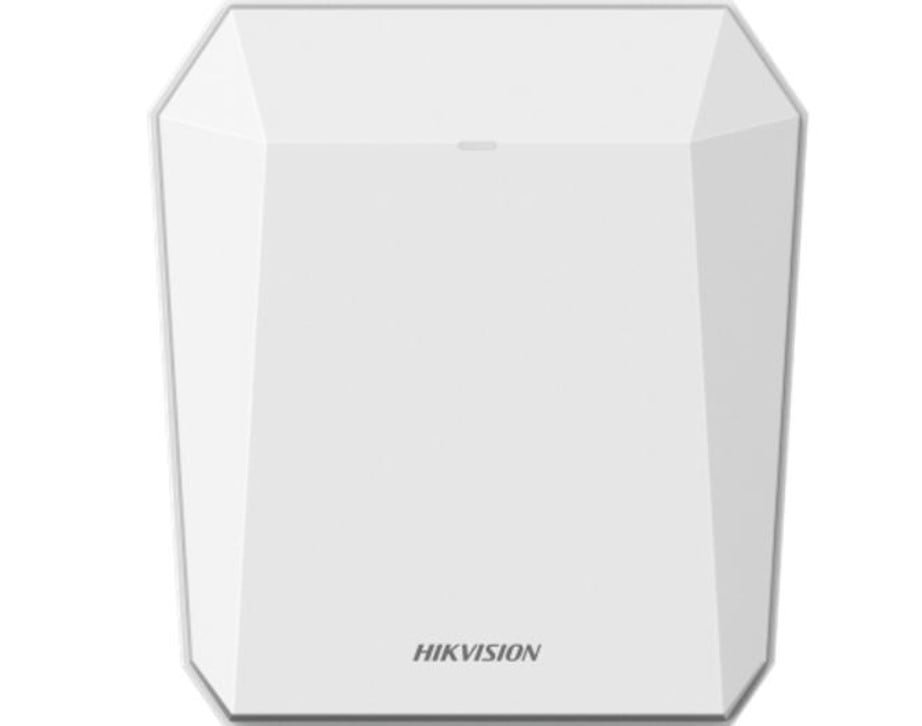

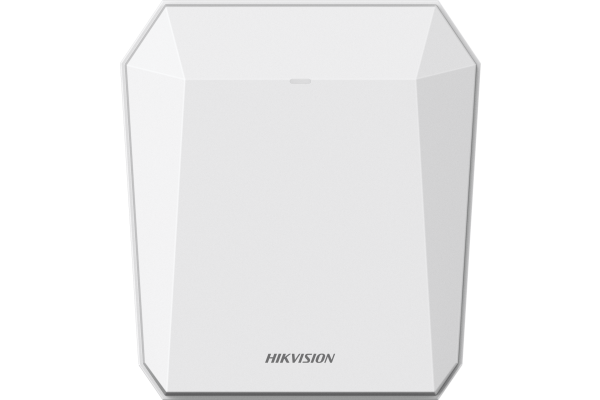

Detektorius Hik-vision DS-TDSB0G-FK/120m
66,57€ / 60 mėn.
2.311,41€(Kaina be PVM)2.796,81€(Kaina su PVM)
| Detektorius Hik-vision DS-TDSB0G-FK/120m | |
| Aptikimo atstumas (žmonės): Iki 120m | |
| Aptikimo atstumas (automobiliai): Iki 200m | |
| Maksimalus taškų skaičius: 32 taškai | |
| PTZ kamerų palaikymas: 4 PTZ kameros | |
| Alarm išėjimai: 1 įėjimas / 4 išėjimai | |
| Apsaugos klasė: IP67, IK09 |
Neturime
Radar
| Working Frequency | 24.05 to 24.25 GHz |
| Modulation Waveform | FMCW |
| Sweep Bandwidth | 115M Hz
|
| Scan Rate | Up to 12 time(s) per second |
| Horizontal Detection Angle | 120° |
| Vertical Detection Angle | 30° |
| Max. Detectable Targets | Up to 32 target(s) |
| Max. Detectable Zones | Up to 16 zone(s) |
| Max. Detection Trigger Lines | Up to 4 trigger line(s) |
| Detection Target Type | Human,Vehicle |
| Detection Distance | Human: 120 m,Vehicle: 200 m |
| Distance Resolution | 1.3 m |
| Distance Measurement Accuracy | ± 1.2 m |
| Angle Resolution | 12° |
| Angle Accuracy | ± 1 ° |
| Speed Measuring Range | – 19 to 19 m/s |
| Speed Resolution | 0.075 m/s |
| Speed Measuring Accuracy | ± 0.1 m/s |
Sąsaja
| Tinklo sąsaja | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet port(s) |
| Vidinė atmintis |
Built-in 128G memory card |
| Signalizacija | 1 input, 4 Relay output(s)(max. 30 VDC/125 VAC, 1 A ) |
| RS-485 | 1 RS-485 |
| RS-232 | 1 RS-232 |
| Indikatorius | Supported |
Internetas
| Protokolai | TCP/IP,HTTP,HTTPS,DHCP,DNS,RTP,RTSP,NTP,IPv4/IPv6,UDP,SSL/TLS,ARP |
| Tiesioginis vaizdo žiūrėjimas | Up to 32 channel(s) |
| API | SDK,ISAPI |
| User/Host | Up to 16 users,3 user levels: administrator, operator, and user |
| Saugumas | Password protection,Complicated password,HTTPS encryption,Basic and digest authentication for HTTP/HTTPS,RTP/RTSP over HTTPS,Control timeout settings,TLS 1.2,Host authentication (MAC address) |
| Klientas | iVMS-4200, Hik-Central Pro |
| Naršyklė | Chrome V61+, IE9 to IE11, Firefox V41+, Edge |
Funkcijos
| Radar + PTZ Smart Tracking | Supported |
| Zone Settings | Warning zone,Early warning zone,Disable zone |
| Tracking Mode | Time priority,Range priority,Multi-target auto switch,Target trigger priority |
| Scene Mode | Expert mode,Open mode,Shrub mode |
| Map Management | Supported |
Pagrindinis
| Sistemos parametrai | DC 36 V ±25%, 0.67 A, max. 24 W, two-core terminal block, AC 24 V ±25%, 1 A, max. 24 W, two-core terminal block |
| Medžiaga | Cover: PC, main body: ADC12 |
| Dydis | 228 mm × 206 mm × 61 mm (8.98″ × 8.11″ × 2.4″) (L × W × H) |
| Package Dimensions | 489 mm × 300 mm × 140 mm (19.25″ × 11.81″ × 5.51″) (L × W × H) |
| Weight | Approx. 1.8 kg (3.97 lb.) |
| Svoris su įpakavimu | Approx. 3.6 kg (7.94 lb.) |
| Darbo sąlygos | -40 °C to 65 °C (-40 °F to 149 °F). Humidity 95% or less (non-condensing) |
| Storage Condition | -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (Non-condensing) |
| Installation Height | 2 to 4 m (Recommend height: 2.5 m) |
Patvirtinimai
| EMC | CE-EMC: EN 55032: 2015+A11:2020+A1:2020, EN IEC61000-3-2: 2019+A1:2021, EN 61000-3-3: 2013+A1:2019+A2:2021, EN 50130-4: 2011+A1: 2014 |
| RF | CE-RED: EN 301489-1 V2.2.3, EN 301489-3 V2.1.1, EN 300440 V2.1.1, EN IEC 62311: 2020 |
| Saugumas |
CB: IEC 61010-1: 2010, IEC 61010-1: 2010/AMD1: 2016, CE-LVD: EN 61010-1: 2010+A1: 2019 |
| Aplinkosauga | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Apsauga | IK10: IEC 62262: 2002, IP67: IEC 60529: 1989+A1: 1999+A2: 2013 |
| Apsauga nuo korozijos |
NEMA 4X (NEMA 250-2018) |
| Svoris | 1,8 kg |
|---|---|
| Gamintojas |
