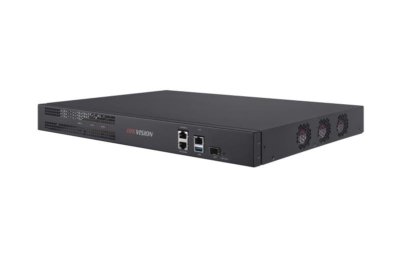

Dekoderis DS-6916UDI(C)
112,70€ / 60 mėn.
3.797,90€(Kaina be PVM)4.595,46€(Kaina su PVM)
| Tipas: Dekoderis | |
| Modelis: Hikvision DS-6916UDI(C) | |
| Paskirtis: Skirtas vaizdui atvaizduoti 16 monitorių | |
| Rezoliucija: 3840 × 2160 | |
| Alarm įėjimai/išėjimai: Taip | |
| RS-232 (RJ45): 1 | |
| RS-485: 1 | |
| USB jungtys: 2 | |
| RJ45 jungtys: 2 (10M/100M/1000M) | |
| Optinė sąsaja: 2 |
Neturime
Produkto modelis
| Produkto modelis | DS-6916UDI(C) |
Sąsaja
| Alarm In | 8-ch alarm in |
| Alarm Out | 8-ch alarm out |
| Serijinė sąsaja | RS-232 (RJ45) × 1, RS-485 × 1 |
| USB sąsaja | USB 2.0 × 2 |
| Tinklo sąsaja | RJ45 × 2, 10 M/100 M/1000 Mbps self-adaptive Ethernet interface Optic Interface × 2 100 base-FX/1000 base-X Supports optoelectronic self-adaptation |
Video Wall
| Video Walls | 1 |
| Video Wall Size | ≤ 16 |
| Layers Per Screen | 1080p × 3 or 4K × 1.5 |
| Layers | Layers Per Screen × Output Interface(s) |
| Split Window | yes |
| Scenes | 64 |
| Scene Auto-Switch Delay | 3 s |
| Split Screen | 1, 2, 4, 6, 8, 9, 12, 16, 25 |
| Background Images | Background color only |
| Delay of Displaying Local Signal Source on Video Wall | 120 ms |
| Delay of Displaying Decoded Signal Source on Video Wall | 120 ms |
| Auto-Switching Plans | Support 256 auto-switching plans |
Pagrindinis
| Darbinė temperatūra | -10 °C to 55 °C (14 °F to 131 °F) |
| Atsparumas drėgmei | 10％ RH to 90％ RH |
| Svoris be įpakavimo | < 8.42 kg (18.56 lb) |
| Svoris su įpakavimo | 8.42 kg (18.56 lb) |
| Energijos sunaudojimas | < 150 W |
| Pakuotėje | Decoder × 1 DB15M to 4 × BNC (4-ch CVBS Video Patch Wire) × 2 DB15M to 8 × BNC (8-ch Audio Patch Wire) × 2 Quick Start art Guide × 1 Regulatory Compliance and Safety Information × 1 Hanger × 1 Power Cord × 1 Mat × 4 Grounding Wire × 1 |
| Dydis | 440 mm × 321 mm × 88 mm (17.32” × 12.64” × 3.64”) |
| Maitinimas | 100 to 240 VAC |
Garso įvestis
| Audio Input Interfaces | 2 |
| Audio Input Interface Type | embedded HDMI audio input |
Vaizdo įrašo įvestis
| Video Input Resolution | 3840 × 2160@30 Hz, 1920 × 1080@50 Hz, 1920 × 1080@60 Hz, 1280 × 720@50/60 Hz |
| Video Input Interface Type | 2-ch: HDMI 1.4 |
| Video Input Interfaces | 2 |
| Max. Input Resolution | 4K |
Video Encoding
| Video Encoding Channel | 2 |
| Video Encoding Format | H.265/H.264 Default H.264 |
| Video Encoding Capability | 1-ch: 4K 30 2-ch: 1080p 60 |
Audio Encoding
| Audio Encoding Format | G722.1, G711U, G711A, AAC-LC |
Vaizdo išvestis
| Max. Output Resolution | 4K |
| Video Output Interface Type | HDMI 1.4 |
| Video Output Interface(s) | 16 |
| Vaizdo išvesties raiška | 3840 × 2160@30 Hz, 2560 × 1440@30 Hz, 1920 × 1200@60 Hz, 1920 × 1080@60 Hz, 1920 × 1080@50 Hz, 1680 × 1050@60 Hz, 1600 × 1200@60 Hz, 1280 × 1024@60 Hz, 1280 × 720@60 Hz, 1280 × 720@50 Hz, 1024 × 768@60 Hz |
| Video Output Resolution (BNC) | PAL: 704 × 576@25 Hz, NTSC: 704 × 480@30 Hz |
| Video Output Interface (BNC) | 4-ch: DB15 to BNC |
Video Decoding
| Video Decoding Format | H.264, H.265, SmartH.264, SmartH.265, MJPEG |
| Video Decoding Resolution | Up to 32 MP |
| Video Decoding Channel(s) | 256 |
| Video Decoding Capability | Support 8-ch 32 MP/24 MP/16-ch 12 MP/32-ch 8 MP/40-ch 6 MP/64-ch 4 MP/128-ch 1080p/256-ch 720p and below real-time decoding (4 outputs in a group, sharing decoding capabilities) |
Garso išvestis
| Audio Output Interface Type | embedded HDMI audio output or DB15 to BNC independent audio output |
| Audio Output Interface(s) | 16 |
Encoding and Decoding/Audio Decoding
| Audio Decoding Format | G711A, G711U, G722.1, G726-16/U/A, MPEG, AAC-LC, PCM |
| Gamintojas |
|---|
