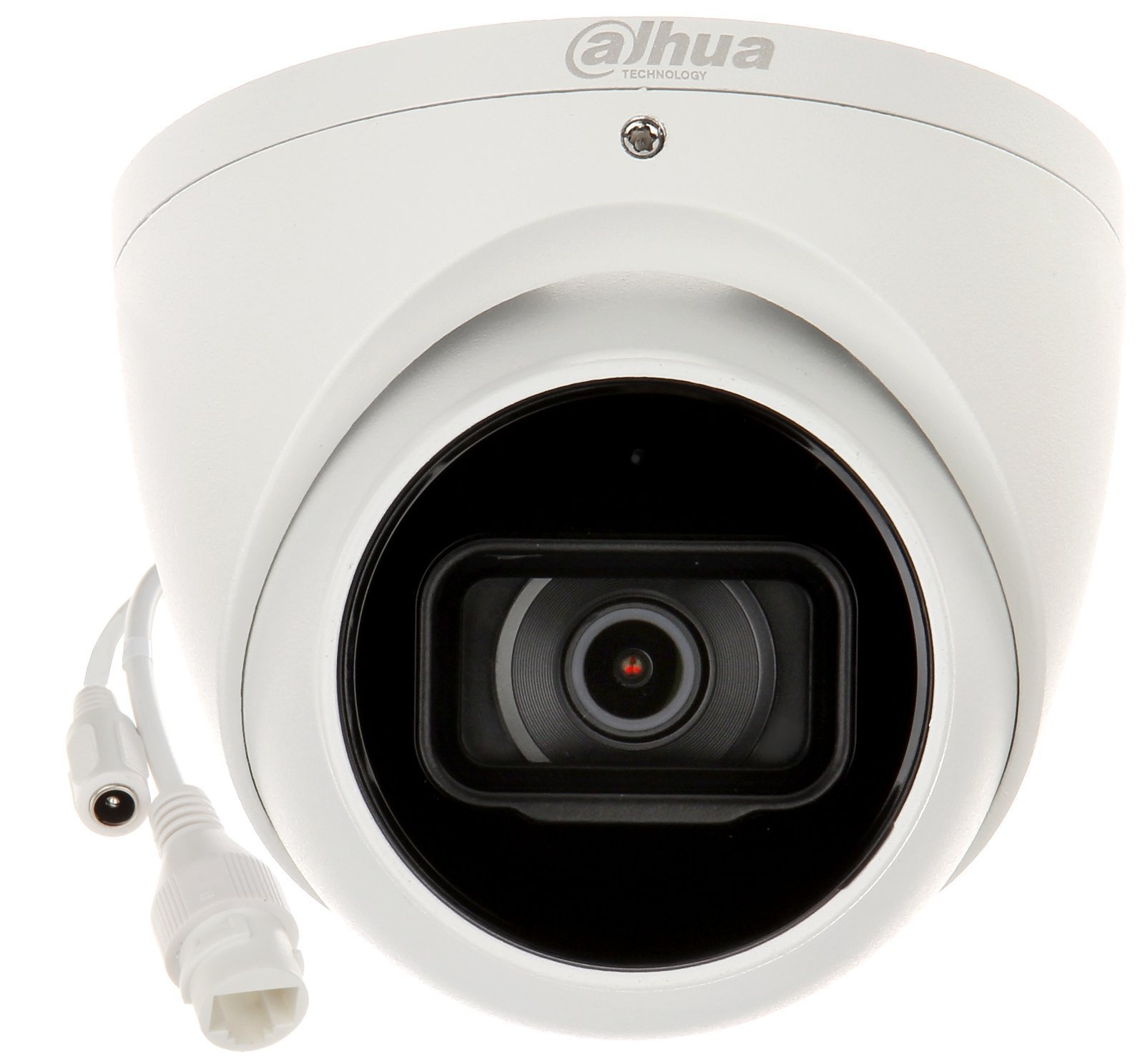

Dahua Dome IPC-HDW3541EM-S-S2 F2.8 (Balta, 5MP, 97°, IR LED 50m, IP67)
8,86€ / 24 mėn.
153,30€(Kaina be PVM)185,49€(Kaina su PVM)
| Tipas: IP kamera | |
| Modelis: IPC-HDW3541EM-S-S2 | |
| Prekės ženklas: Dahua | |
| Serija: WizSense | |
| Raiška: 5 MP | |
| Objektyvas: 2.8 mm (97°) | |
| IR LED pašvietimas: iki 50 m | |
| Integruotas mikrofonas: Taip | |
| Audio/Signalizacijos sąsaja: Taip | |
| Palaikoma atmintis: SD kortelė iki 256 GB | |
| Funkcijos: WDR, 3D NR, HLC, BLC, SMD 4.0, Defog | |
| Maitinimas: PoE | |
| Apsaugos klasė: IP67 |
Neturime
| Sensorius | 1/2.7″ CMOS |
| Maks. rezoliucija | 2960 (H) × 1668 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Skenavimo sistema | Progressive |
| Elektroninis užrakto greitis | Auto/Manual 1/3 s–1/100,000 s |
| Min. apšvietimas | 0.005 lux@F1.4 (Color, 30 IRE)0.0005 lux@F1.4 (B/W, 30 IRE)0 lux (Illuminator on) |
| S/N santykis | >56 dB |
| Apšvietimo atstumas | Up to 50 m (164.04 ft) |
| Apšvietimo valdymas | Auto/Manual |
| Apšvietimo skaičius | 2 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0°–360°; Tilt: 0°–78°; Rotation: 0°–360° |
| Lęšio tipas | Fixed-focal |
| Lęšio montavimas | M12 |
| Židinio nuotolis | 2.8 mm; 3.6 mm; 6 mm |
| Maks. diafragma | F1.4 |
| FOV | 2.8 mm: Horizontal: 97°; Vertical: 71°; Diagonal: 129°3.6 mm: Horizontal: 80°; Vertical: 57°; Diagonal: 107°6 mm: Horizontal: 50°; Vertical: 37°; Diagonal: 64° |
| Diafragmos valdymas | Fixed |
| Artimiausias fokusavimas | 2.8 mm: 1.1 m (3.61 ft)3.6 mm: 1.7 m (5.58 ft)6 mm: 3.3 m (10.83 ft) |
| IVS (Perimetro apsauga) | Tripwire, intrusion (support the classification and accurate detection of vehicle and human) |
| AI SSA | Yes |
| Quick Pick | With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events |
| Išmanioji paieška | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Vaizdo suspaudimas | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Išmanusis kodekas | Smart H.265+Smart H.264+ |
| AI kodavimas | AI H.265AI H.264 |
| Vaizdo kadrų dažnis | Main stream: 2880 × 1620 @ (1–20) fps /2960 × 1668 @ (1–20) fps /2688 × 1520@ (1–25/30 fps)Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps)Sub stream 2: 1920 × 1080 @ (1–25/30 fps)*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Srauto pajėgumas | 3 streams |
| Rezoliucija | 5M (2880 × 1620/2960 × 1668); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048×1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704×480); CIF (352 × 288/352 × 240); VGA (640 × 480) |
| Bitų greičio kontrolė | CBR/VBR |
| Vaizdo bitų greitis | H.264: 3 kbps–8192 kbpsH.265: 3 kbps–8192 kbps |
| Dienos/nakties režimas | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| Baltos spalvos balansas | Auto; natural; street lamp; outdoor; manual; regional custom |
| Stiprinimo valdymas | Auto |
| Triukšmo mažinimas | 3D NR |
| Judesių aptikimas | OFF/ON (4 areas, rectangular) |
| Intereso sritis | Yes (4 areas) |
| Rūko šalinimas | Yes |
| AFSA | Yes |
| Vaizdo pasukimas | 0°/90°/180°/270° (support 90°/270° with 2688×1520 resolution and lower) |
| Veidrodis | Yes |
| Privatumo maskavimas | 4 areas |
| Integruotas mikrofonas | Yes |
| Garso suspaudimas | G.711a; G.711Mu; PCM; G.726; G.723 |
| Pavojaus įvykis | No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; SMD; safety exception |
| Tinklo prievadas | RJ-45 (10/100 Base-T) |
| SDK ir API | Yes |
| Interneto protokolai | IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP |
| Kibernetinis saugumas | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Suderinamumas | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec |
| Naudotojas/prievadas | 20 (Total bandwidth: 64 M) |
| Saugykla | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
| Naršyklė | IE:IE11ChromeFirefox |
| Valdymo programinė įranga | Smart PSS; DSS; DMSS |
| Mobilioji programa | iOS; Android |
| Sertifikatai | CE-LVD: EN62368-1;CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;FCC: 47 CFR FCC Part 15, Subpart B;UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
| Maitinimas | 12 VDC/PoE (802.3af) |
| Energijos naudojimas | Basic: 4.3 W (12 VDC); 4.9 W (PoE)Max. (WDR + IR intensity + Intelligence): 7.6 W (12 VDC); 8.9 W (PoE) |
| Darbo sąlygos (temperatūra) | –40 °C to +60 °C (–40 °F to 140 °F) /Less than 95% (RH) |
| Sandėliavimo sąlygos temperatūra | –40 °C to +60 °C (–40 °F to 140 °F) |
| Apsauga | IP67 |
| Korpusas | Metal |
| Produkto matmenys | 93.6 mm × Φ106.0 mm (3.69″ × Φ4.17″) |
| Svoris be įpakavimo | 500 g (1.10 lb) |
| Bendras svoris | 770 g (1.70 lb) |
| Svoris | 0,575 kg |
|---|---|
