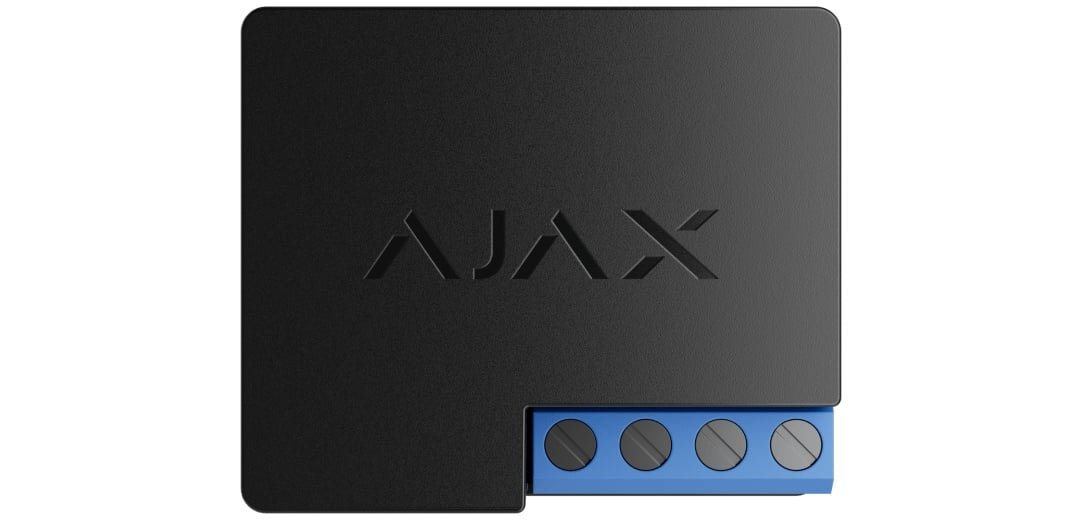

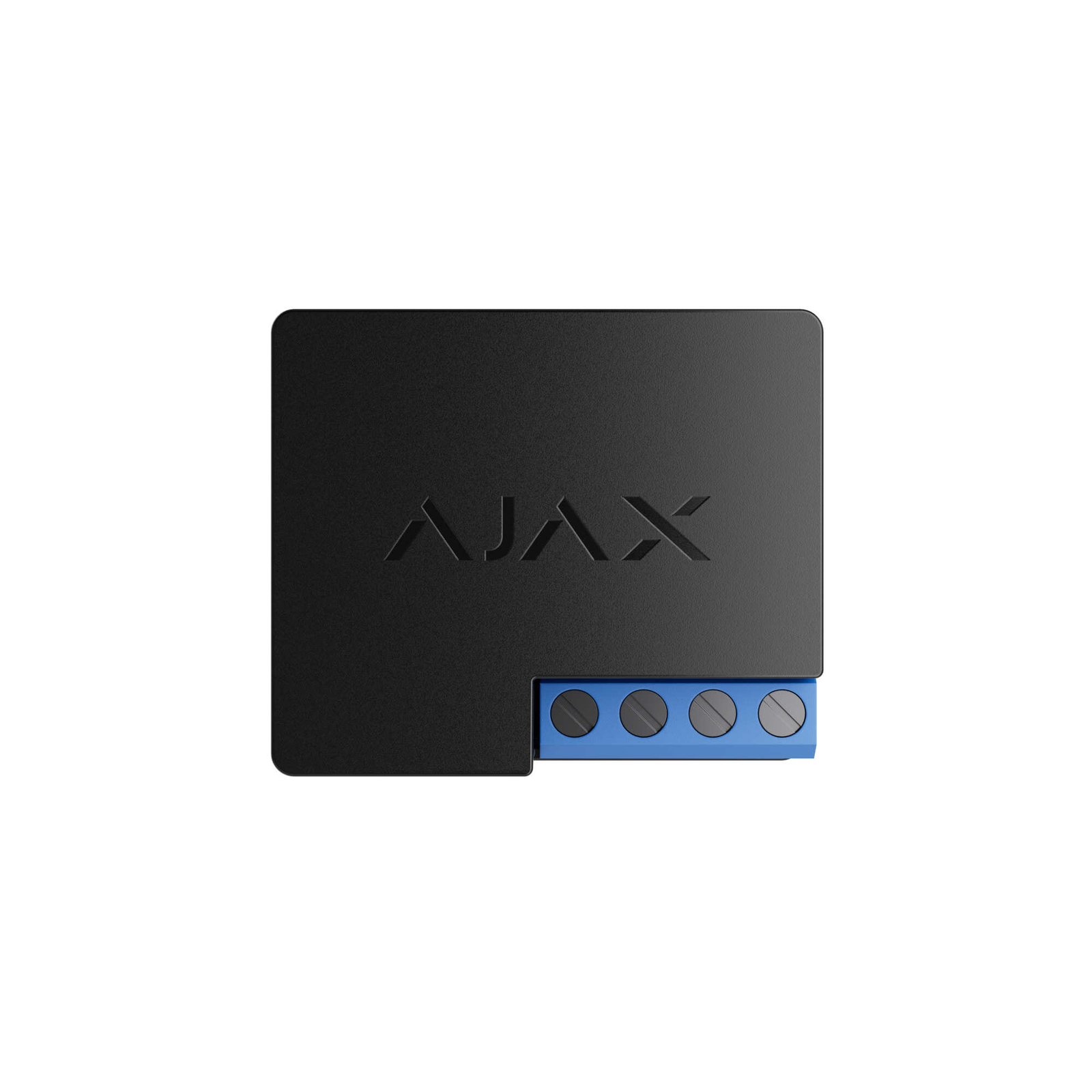

Bevielis relinis modulis Ajax WallSwitch 38189.13.BL1 (230V, 13A)

5,19€ / 12 mėn.

49,84€(Kaina be PVM)60,31€(Kaina su PVM)

Tipas: Bevielis relinis modulis
Modelis: Ajax WallSwitch
Įtampa: 230V
Srovė: 13A
Nuotolinis 110/230 V~ elektros tiekimo valdymas
Prekės kodas: 38189.13.BL1

Liko tik 1. Reikia daugiau? Susisiekite su mumis.

Gamintojas: AJAX SKU: AJWALLSWITCH

Maitinimo įtampa	110–230 V ± 10%, 50/60 Hz
Maksimali pastovi apkrovos srovė	13 A
Išvesties galia	up to 3.0 kW (resistive load at 230 V~), up to 1.5 kW (resistive load at 110 V~)
Vidutinės sąnaudos	up to 1 W
Srovės apsauga	more than 11 A (when Overcurrent protection is enabled), more than 13 A (when Overcurrent protection is disabled), Once the current exceeds the specified level, the device turns off automatically.
Įtampos apsauga 230 V~ elektros tinklui	min: 184 V~, max: 253 V~, Once the voltage exceeds the specified levels, the device turns off automatically.
Įtampos apsauga 110 V~ elektros tinklui	min: 92 V~, max: 132 V~, Once the voltage exceeds the specified levels, the device turns off automatically.
Temperatūros apsauga	over 149 °F, If protection is triggered, the device turns off.
Apsaugos nuo elektros smūgio klasė	Class II

Jeweller ryšio technologija	Proprietary wireless communication technology to transmit commands, alarms, and events., Key features:, Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., Instant notifications., Remote control and configuration in Ajax apps., Learn more
Dažnių juostos	866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz 915.85–926.5 MHz 921.0–922.0 MHz, Depends on the sales region.
Maksimali efektyvi spinduliuojama galia (ERP)	up to 25 mW
Radijo signalo moduliacija	GFSK
Radijo ryšio veikimo nuotolis	up to 3,250 ft, Between the relay and a hub (or a range extender) in an open space., Calculate radio communication range at the facility
Šifruotas ryšys	All stored and transmitted data are protected by block encryption featuring a dynamic key.
Dažnių šuoliai	To prevent radio interference and jamming., Learn more

Valdymas per išmanųjį telefoną	The user can set up the relay configurations and receive notifications in an Ajax app.
Automatizavimo scenarijai	By arming/disarming, By schedule, By alarm, By temperature, By humidity 1, By CO 2 concentration 1, By touching LightSwitch / pressing Button, Learn more, 1 Scenarios by humidity and CO 2 concentrations are available when LifeQuality Jeweller is added to the system.
Energijos sąnaudų stebėjimo priemonė	Control of the current, voltage, power, and electric energy consumed by connected appliances.
Adjustable pulse duration 2	from 1 to 255 s
Veikimo režimai	pulse 2, bistable, 2 Available on devices with firmware version 5.54.1.0 or later manufactured after March 5, 2020.
Kontakto būsena	normally open, normally closed

Apsauga nuo klastojimo	device authentication
Ryšio praradimo aptikimas	after 36 s, Detection time depends on the Jeweller or Jeweller/Fibra settings., Learn more

Gamintojas	AJAX
