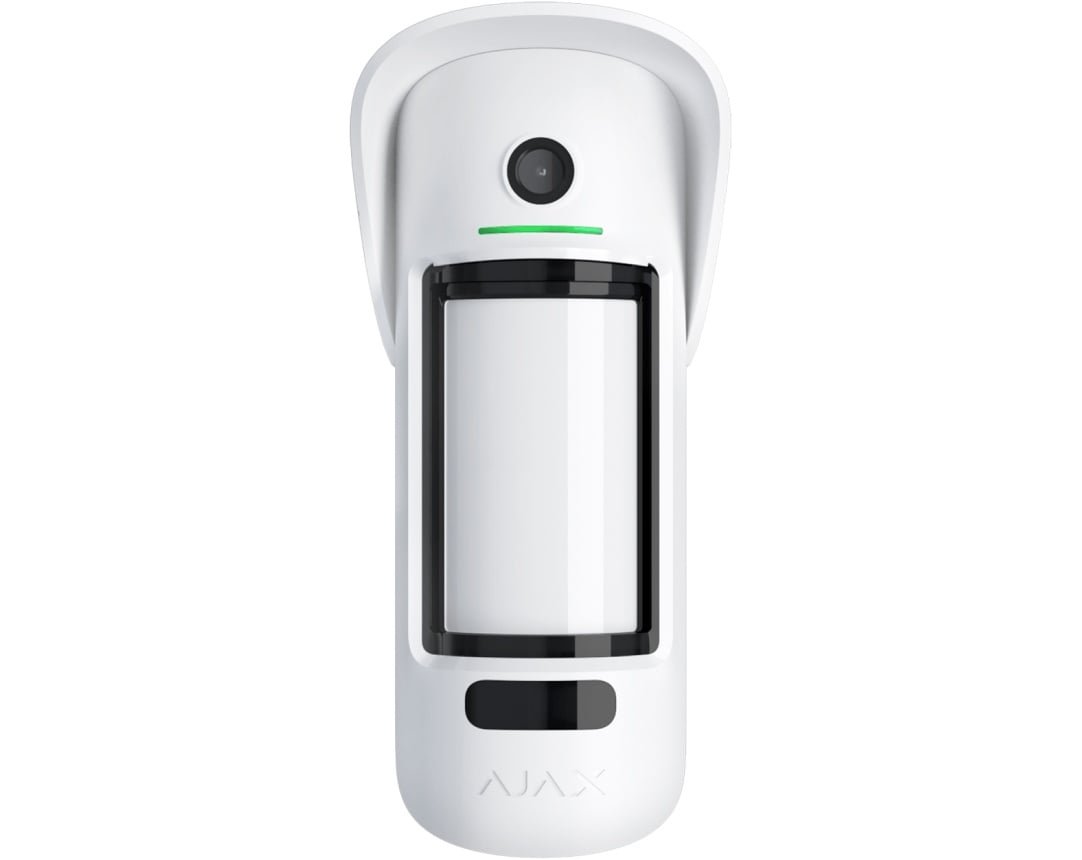

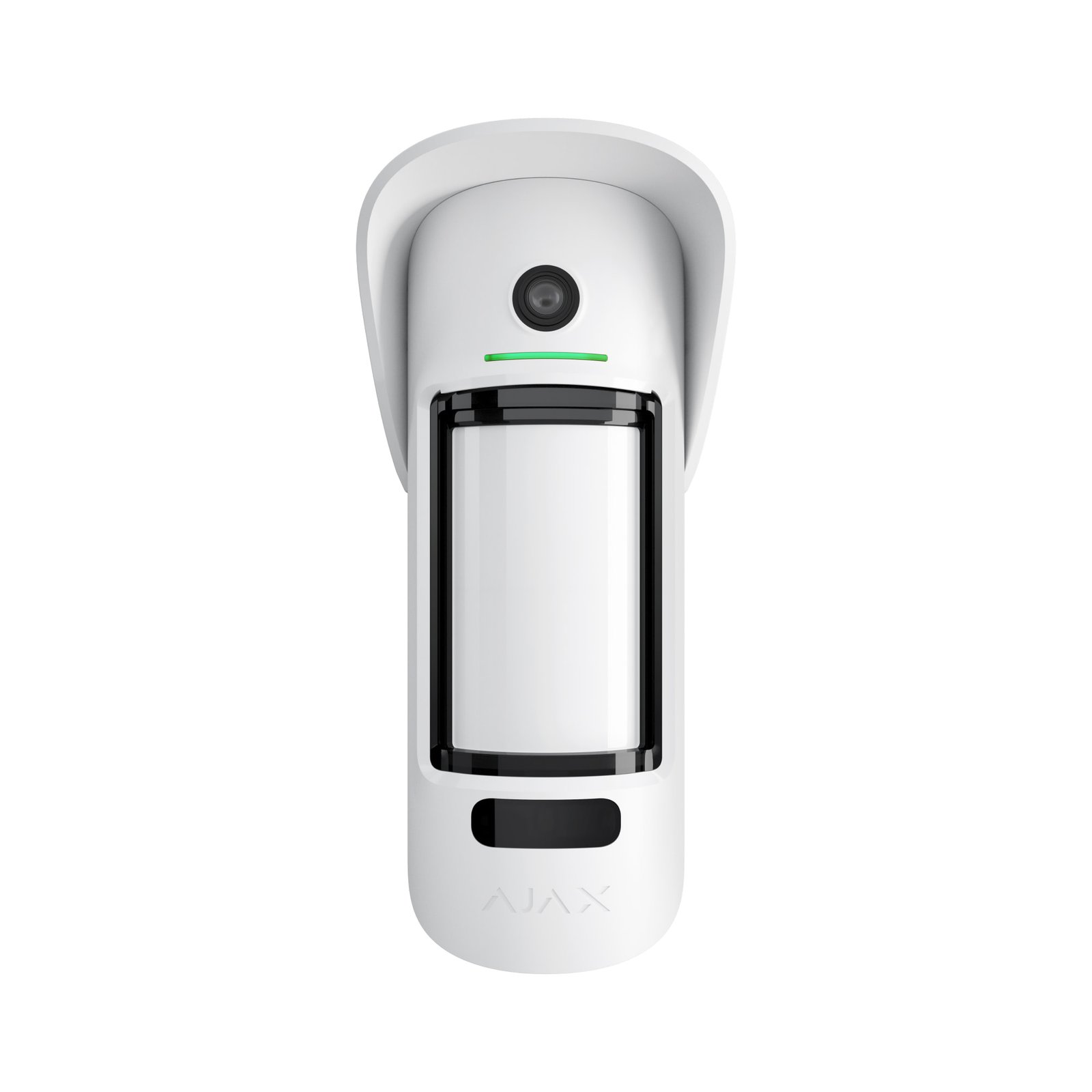

Bevielis judesio jutiklis su kamera Ajax MotionCam Outdoor PhOD 39293.121.WH1 (balta)

345,15€(Kaina be PVM)417,63€(Kaina su PVM)

Tipas: Bevielis judesio jutiklis su kamera
Modelis: Ajax MotionCam Outdoor phOD
Spalva: Balta
Technologija: PIR
Veikimo nuotolis: 15 m
Aptikimo kampas: 90°
Atsparumas gyvūnams: iki 20 kg
Prekės kodas: 39293.121.WH1

Turime

Gamintojas: AJAX SKU: AJMOTIONCAMOPHODW

Kategorijos: AJAX, Apsaugos sistemos, Jutikliai

Žymos: AJAX, Apsaugos sistemos, Jutikliai, Main

Aprašymas
Papildoma informacija

Bendravimas
Jeweller ryšio technologijaProprietary wireless communication technology to transmit alarms and events., Key features:, Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., Instant notifications., Remote configuration via the Ajax apps., Learn more
Dažnių juostos866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz, Depends on the sales region.
Maksimali efektyvi spinduliuojama galia (ERP)up to 20 mW
Radijo signalo moduliacijaGFSK
Radijo signalo veikimo nuotolisup to 5,600 ft, Between detector and control panel or range extender in an open space., Calculate radio signal range at the facility
Šifruotas ryšysAll the data stored and transmitted are protected by block encryption with a dynamic key.
Dažnių šuoliaiRadio communication uses frequency hopping to prevent interception and jamming., Learn more
Wings ryšio technologijaKey features:, Two-way communication., Block encryption featuring a dynamic key., Advanced anti-sabotage., Data package reloading in case of transmission errors., Photo delivery check., Learn more
Dažnių juostos866.0 – 866.5 MHz 868.0 – 868.6 MHz 868.7 – 869.2 MHz 905.0 – 926.5 MHz 915.85 – 926.5 MHz 921.0 – 922.0 MHz, Depends on the sales region.
Radijo signalo veikimo nuotolisup to 5,600 ft, Between detector and control panel or range extender in an open space., Calculate radio signal range at the facility
Dažnių šuoliaiRadio communication uses frequency hopping to prevent interception and jamming., Learn more

Aptikimas
Jautrūs elementai2 × PIR sensor
Judėjimo aptikimo atstumasup to 10 ft–49 ft, When installed at a height of 2.6 ft–4.3 ft. Adjusted with a scrollbar on the device enclosure.
Judėjimo aptikimo kampaihorizontal — 90° vertical — N/A
Judėjimo aptikimo greitisfrom 1 to 6.6 ft/s, The direction of the detector lens should be perpendicular to an alleged intrusion path into the facility.
Jautrumas3 levels, Adjusted by PRO or user with admin rights in the Ajax app.
Atsparumas naminių gyvūnų sukeltiems signalamsweight: not relevant height: up to 2.6 ft, Learn more
Netikro pavojaus signalo prevencijaLISA, SmartDetect, Software algorithms.
Temperatūros kompensacijaEffective motion detection at temperatures from −13°F to 140°F.

Nuotraukų patikra
Nuotrauka pagal aliarmąA built-in camera is activated if the detector is armed, and motion is detected., Learn more
Nuotrauka pagal pareikalavimąUser takes pictures at any time or when the detector is armed (depends on settings). The feature is disabled by default., Learn more
Nuotrauka pagal scenarijųA detector camera takes pictures automatically when Ajax fire detectors are triggered. The feature is disabled by default., Learn more
Nuotrauka pagal tvarkaraštįThe detector automatically takes photos at a specified time. This feature is available for hubs with firmware version OS Malevich 2.19 or higher., Learn more
Nuotrauka pagal įjungimą/išjungimąThe detector automatically takes photos when the security state is changed., Learn more
Nuotraukos raiška640 × 352 px 320 × 176 px (by default), Adjusted by PRO or user with admin rights in the Ajax app.
Kameros žiūrėjimo kampaihorizontal — 105° vertical — 50°
IR apšvietimasFor night photography and low light conditions.
Nuotraukos serijojefrom 1 to 5 images with resolution of 320 × 176 px from 1 to 3 images with resolution of 640 × 352 px, Adjusted by PRO or user with admin rights in the Ajax app.
Nuotraukos pristatymo laikasup to 9 s — 320 × 176 px resolution up to 20 s — 640 × 352 px resolution, When the hub is connected via Ethernet or 4G and the Wings signal strength between hub and device is 2–3 bars. Photo delivery time when the detector is connected via range extender is available here.
TV iškraipymas (pagal EBU standartą)barrel — 17%

Apsauga nuo sabotažo
Apsauga nuo užmaskavimoThe detector is equipped with masking sensors reacting to hindering, covering and painting the lens., Learn more
Sabotažo signalasAlerts of attempts to detach the detector from the surface or remove it from the mounting panel., Learn more
Apsauga nuo klastojimodevice authentication
Ryšio praradimo aptikimaswithin 36 s, Detection time depends on the Jeweller settings., Learn more
