Bevielis išmanus jungiklio mechanizmas Ajax LIGHTCORE 1-GANG 45110.142.NC (1 klavišo)
6,02€ / 12 mėn.
58,52€(Kaina be PVM)70,81€(Kaina su PVM)
| Tipas: Belaidis išmanus jungiklio mechanizmas (vieno klavišo) | |
| Modelis: 45110.142.NC | |
| Prekės ženklas: Ajax Lightcore | |
| Valdymas: Išmanus lietiminis vieno klavišo jungiklis |
Neturime
Komponentai

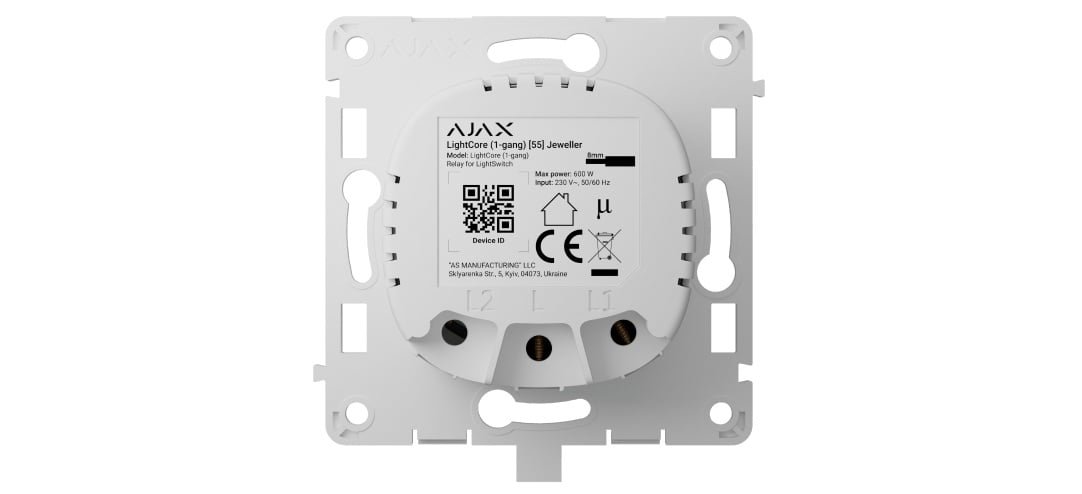

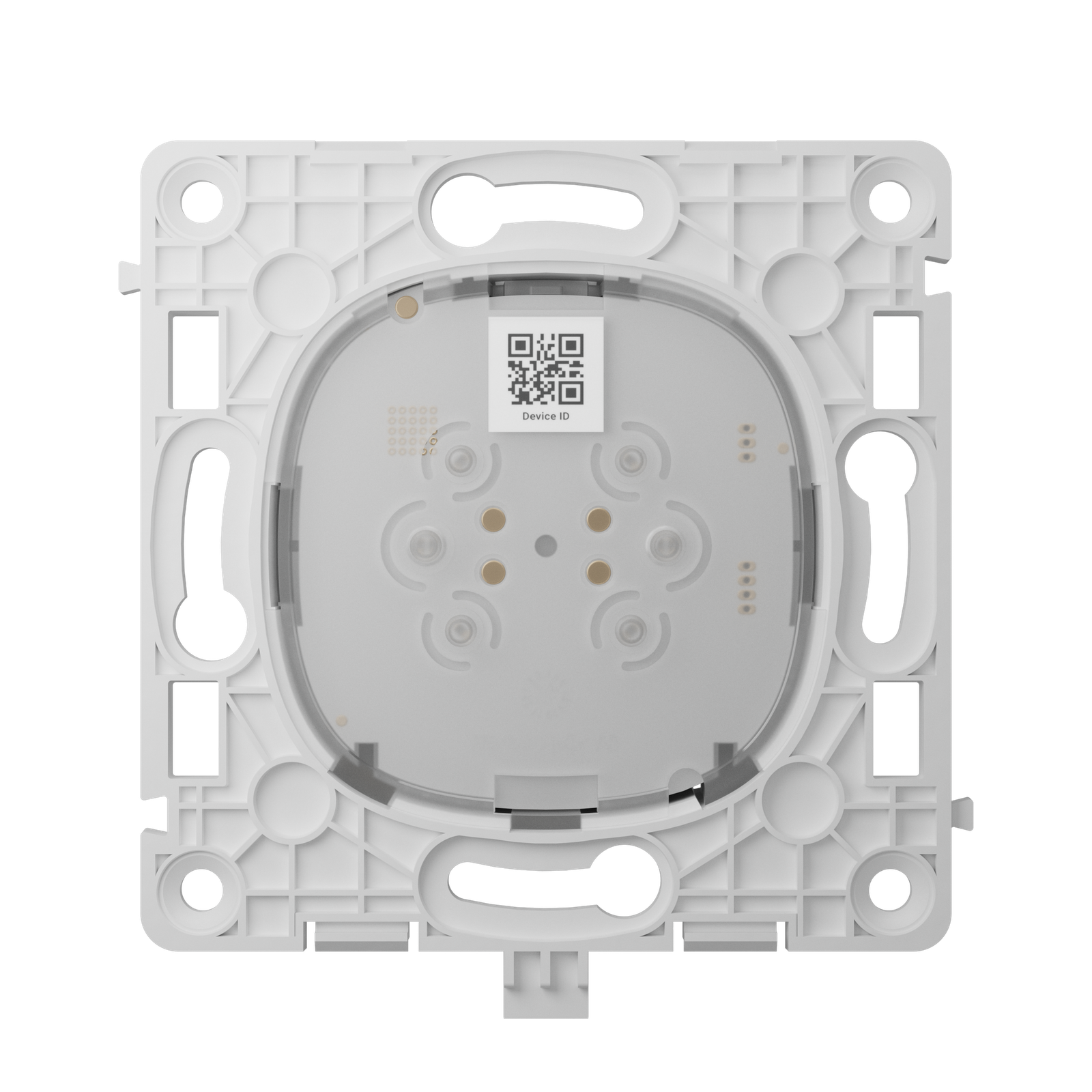

| Relė | LightCore (1-gang) Jeweller, Relay for a 1-gang switch., LightCore (1-gang) vertical Jeweller, Relay for a vertical 1-gang switch. |
| Lietimui jautrūs skydeliai | SoloButton (1-gang) It is used when the 1-gang switch is installed as a separate device. SoloButton consists of the front panel and the frame, coming as one component. CenterButton (1-gang) It is used when the 1-gang switch is installed between the device set. CenterButton (1-gang) vertical It is used when the vertical 1-gang switch is installed between the device set. SideButton (1-gang) It is used when the 1-gang switch is installed on the right or left of the device set. SideButton (1-gang) vertical It is used when the vertical 1-gang switch is installed on the top or bottom of the device set. |
| Rėmeliai | Frames for two, three, four, and five Ajax switches and outlets in any combination¹., Frame (2 seats) Frame (3 seats) Frame (4 seats) Frame (5 seats) Frame (2 seats) vertical Frame (3 seats) vertical Frame (4 seats) vertical Frame (5 seats) vertical, 1 — Combinations with outlets are available only in horizontal orientation. |
Konfigūracija
| Viengubas jungiklis | LightSwitch (1-gang) Jeweller is installed as a separate device. |
| Kombinuotas jungiklis | LightSwitch (1-gang) Jeweller is combined as a set with Ajax smart switches and/or Outlet Jeweller devices and installed into Frame side by side., Learn more |
Bendravimas
| Jeweller ryšio technologija | Proprietary wireless communication technology to transmit commands, alarms, and events., Key features:, Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., Instant notifications., Remote configuration via Ajax apps., Learn more |
| Radijo dažnių juostos | 866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz 915.85–926.5 MHz 921.0–922.0 MHz, Depends on the sales region. |
| Maksimali efektyvi spinduliuojama galia (ERP) | up to 20 mW |
| Radijo signalo moduliacija | GFSK |
| Radijo ryšio veikimo nuotolis | up to 3,600 ft, Between the device and a hub (or range extender) in an open space., Calculate radio communication range at the facility |
| Užšifruotas radijo ryšys | All the data stored and transmitted are protected by block encryption featuring a dynamic key. |
| Radijo dažnio šuoliai | Radio communication uses frequency hopping to prevent interception and jamming., Learn more |
Pagrindinės savybės
| Automatizavimo scenarijai | security mode change reactions, scheduled actions, alarm reactions, temperature scenarios, humidity scenarios², CO₂ concentration scenarios², by pressing another LightSwitch/Button, Learn more, 2 — Scenarios by humidity and CO₂ concentrations are available when LifeQuality Jeweller is added to the system. |
| Veikimas be nulinio laido | LightSwitch only needs a live wire to operate. |
| Perjungiamos įrenginio galia | from 5 to 600 W |
| Bekontaktis lietimui jautrus skydelis | LightSwitch is activated when a hand gets as close as 15 mm from the panel. |
| Naktinis apšvietimas | Optional, can be turned off in the Ajax app device settings. |
| Apsauga nuo nesuderinamų įrenginių | Triggers if lighting devices have insufficient power (up to 5 W). If protection is triggered, LightSwitch turns off the power and sends a notification to Ajax apps. For low-power lighting devices, the kit includes a capacitor. |
Apsauga nuo sabotažo
| Apsauga nuo klastojimo | device authentication |
| Ryšio praradimo aptikimas | after 36 s, Detection time depends on the Jeweller or Jeweller/Fibra settings., Learn more |
Maitinimas
| Maitinimo įtampa | 230 V~, 50/60 Hz, The device does not need a neutral wire to operate. |
| Vidutinės sąnaudos | up to 200 mW |
| Maksimali galia | 600 W, For LightCore (1-gang) Jeweller and LightCore (1-gang) vertical Jeweller. |
| Srovės apsauga | more than 2.6 A, If protection is triggered, LightSwitch turns off the power and sends a notification to Ajax apps. |
| Temperatūros apsauga | more than 140 °F, If protection is triggered, LightSwitch turns off the power and sends a notification to Ajax apps. |
Veikimo parametrai
| Darbinės temperatūros diapazonas | from 14 °F to 104 °F |
| Drėgmė | Up to 75% with no condensation |
| Apsaugos klasė | IP20 |
| Jungiklio formos faktorius | European type (55) |
Matmenys
| Relė | LightCore (1-gang) Jeweller — 3″ × 2.85″ × 1.15″, LightCore (1-gang) vertical Jeweller — 2.85″ × 3″ × 1.15″ |
| Lietimui jautrūs skydeliai | SoloButton (1-gang) — 3.26″ × 3.26″ × 0.4″, CenterButton (1-gang) — 3.23″ × 2.78″ × 0.4″, CenterButton (1-gang) vertical — 2.78″ × 3.23″ × 0.4″, SideButton (1-gang) — 3.23″ × 3″ × 0.4″, SideButton (1-gang) vertical — 3″ × 3.23″ × 0.4″ |
| Rėmeliai | Frame (2 seats) — 3.26″ × 6.04″ × 0.25″, Frame (3 seats) — 3.26″ × 8.84″ × 0.25″, Frame (4 seats) — 3.26″ × 11.63″ × 0.25″, Frame (5 seats) — 3.26″ × 14.43″ × 0.25″, Frame (2 seats) vertical — 6.04″ × 3.26″ × 0.25″, Frame (3 seats) vertical — 8.84″ × 3.26″ × 0.25″, Frame (4 seats) vertical — 11.63″ × 3.26″ × 0.25″, Frame (5 seats) vertical — 14.43″ × 3.26″ × 0.25″ |
Svoris
| Relė | LightCore (1-gang) Jeweller — 1.62 oz LightCore (1-gang) vertical Jeweller — 1.62 oz |
| Lietimui jautrūs skydeliai | SoloButton (1-gang) — 1.59 oz CenterButton (1-gang) — 1.09 oz CenterButton (1-gang) vertical — 1.09 oz SideButton (1-gang) — 1.13 oz SideButton (1-gang) vertical — 1.13 oz |
| Rėmeliai | Frame (2 seats) — 0.57 oz Frame (2 seats) vertical — 0.57 oz Frame (3 seats) — 0.78 oz Frame (3 seats) vertical — 0.78 oz Frame (4 seats) — 1 oz Frame (4 seats) vertical — 1 oz Frame (5 seats) — 1.2 oz Frame (5 seats) vertical — 1 |
| Gamintojas |
|---|
