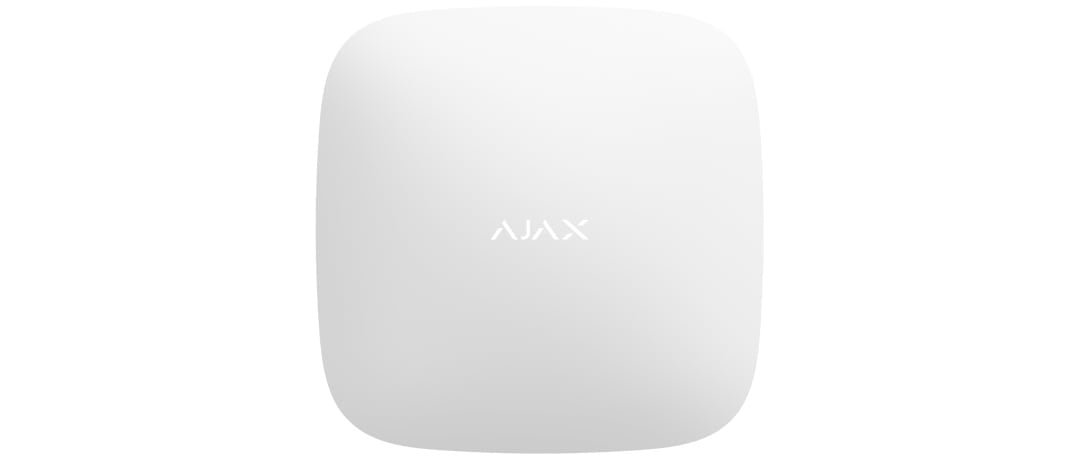

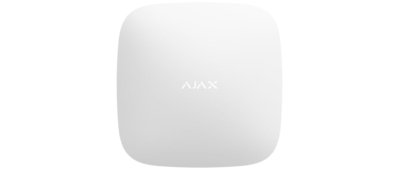

Bevielė centralė Ajax Hub Plus (balta, SIM 2G/3G)

Name: Bevielė centralė Ajax Hub Plus (balta, SIM 2G/3G)
SKU: AJHUBPWAJHUBPW
Availability: BackOrder

16,60€ / 48 mėn.

404,25€(Kaina be PVM)489,14€(Kaina su PVM) su PVM

Gamintojas: AJAX SKU: AJHUBPWAJHUBPW

Talpa
Ajax įrenginiaiup to 150, Specifically, up to 10 sirens or keypads with a built-in siren and 5 range extenders., Learn more
Ajax NVR įrenginiaiup to 14, Learn more
Ajax kamerosup to 224 via Ajax NVRs and up to 200 standalone, Learn more
Trečiųjų šalių IP kamerosup to 10 when using RTSP via SDK, up to 224 when using ONVIF via Ajax NVRs, Learn more
Vartotojaiup to 99, Any number of admin users within the hub limit., PRO accounts for installers., PRO accounts for installation and monitoring companies., Access management for users.
Automatizavimo scenarijaiup to 64, By alarm., By schedule., By arming/disarming., By temperature, humidity, CO 2 concentration., By pressing Button., Learn more
Saugumo grupėsup to 25, Learn more
Patalposup to 50
Įvykių žurnalasup to 1,000 events, Events are saved on the non-volatile onboard flash memory.

Bendravimas
Jeweller ryšio technologijaProprietary wireless communication technology to transmit commands, alarms, and events., Key features:, Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., Instant notifications., Remote control and configuration in Ajax apps., Learn more
Dažnių juostos866.0–866.5 MHz, 868.0–868.6 MHz, 868.7–869.2 MHz, Depends on the sales region.
Maksimali efektyvi spinduliuojama galia (ERP)up to 20 mW, Automatic power control to reduce power consumption and radio interference.
Radijo signalo moduliacijaGFSK
Radijo ryšio veikimo nuotolisup to 6,500 ft, Between a hub and connected devices (in an open space). Maximum range depends on the connected device., Learn more
Apklausos intervalasfrom 12 to 300 s, Adjusted by a PRO or user with admin rights in Ajax apps.
Šifruotas ryšysAll stored and transmitted data are protected by block encryption featuring a dynamic key.
Dažnių šuoliaiTo prevent radio interference and jamming., Learn more

Ryšio kanalai
Ethernet1 × 8P8C socket, Up to 100 Mbps
Mobilusis ryšys2 × micro SIM slot
Mobiliojo ryšio dažnių juostos2G, GSM900/DCS1800 (B3/B8), 3G, WCDMA 900/2100 (B8/B1)
Wi-Fi802.11 b/g/n module, Up to 600 Mbps
Automatinis perjungimas tarp ryšio kanalųInstant switching between Ethernet, Wi-Fi, and SIM. Instant switching between 3G and 2G networks of one SIM. Switching between SIMs takes up to 4 minutes.
Ryšio kanalų prioritetų nustatymasEthernet, Wi-Fi, Cellular connection, Communication channels work in parallel to increase the system’s reliability. Most of the data is transmitted via Ethernet.
Signalizacijos perdavimo sistemų kategorijosSP2, SP5, DP3
Valdymo pulto veikimo būdasPass-through
Signalo saugumasS2, Substitution security
Informacijos saugumasI2

Pranešimai
Pranešimų tipaiPush notifications, SMS, Calls, Learn more
Įvykių tipaiAlarms, Malfunctions, Security state change, System events, Non-security alerts, Automation devices, Notification types are configured individually for each user. Notifications can be customized for A–D schemes according to EN 50131 requirements.

Stebėjimas
Palaikomi protokolaiSIA DC-09 (SIA-DCS), SurGard (Contact ID), ADEMCO 685, Other proprietary protocols, Learn more
Įvykių tipaiSystem alarms and events, Panic button coordinates, Learn more

Maitinimas
Pagrindinis maitinimo šaltinio tipastype A
Įrenginio darbinės AC įtampos diapazonas110–240 V~, 50/60 Hz, Up to 10 W of mains power consumption.
Backup power supplybuilt-in Li-ion rechargeable battery: 3.7 V⎓, 2 Аh, The hub has a 2-pin battery. To replace the hub battery, use the same one., Learn more
Autonominis veikimasup to 16 hours, When Ethernet and Wi-Fi are disabled. The Battery Saver feature extends the battery life of the backup rechargeable battery up to 60 hours., Learn more
Alternative power supply12 V⎓, Connected via a 12V PSU for Hub/Hub Plus/ReX alternative power supply unit, which is sold separately ., Learn more

Apsauga nuo sabotažo
Sabotažo signalasNotifications on attempts to detach the device from the surface or remove it from the mounting panel., Learn more
Apsauga nuo klastojimodevice authentication
Dažnių šuoliaiThe hub sends notifications about jamming or losing connection with the devices to all users and the security company., Learn more

Svoris	0,471 kg
Gamintojas	AJAX
