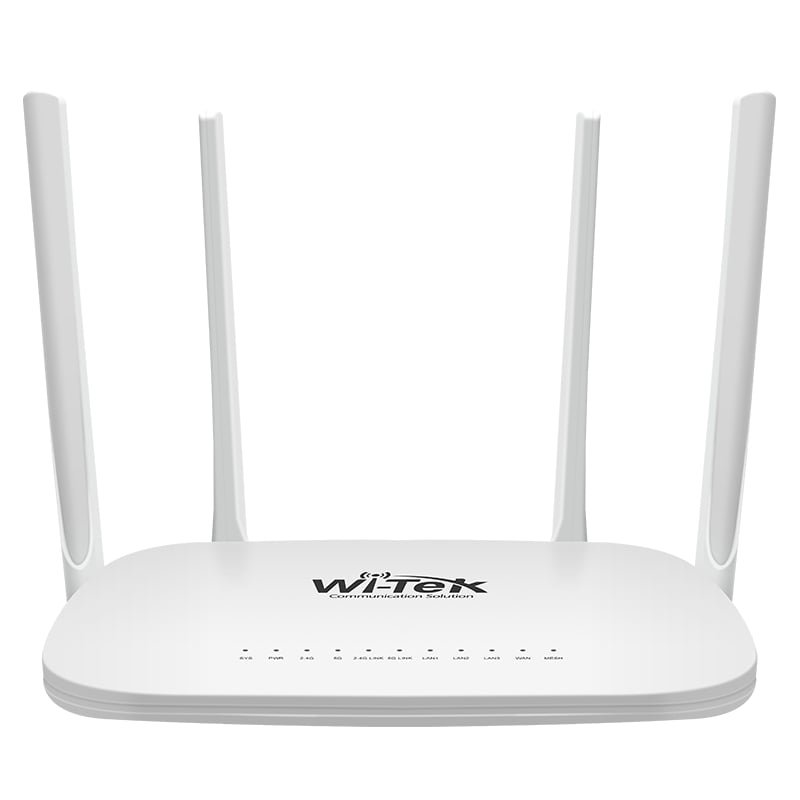

- ModelisWI-R3
- Aparatinės įrangos versijaV1
- Belaidis standartasIEEE 802.11 ac wave1/n/b/g/a
- Veikiančios juostos2.4GHz & 5GHz
- Erdviniai srautai2.4GHz: 2×2 MIMO 5GHz: 2×2 MIMO
- Antena2.4GHz: 5dBi; 5GHz: 5dBi
- Signalo greitisUp to 300 Mbps at 2.4GHz Up to 867 Mbps at 5GHz
- Didžiausia perdavimo galia20dBm
- Sąsaja(3) 10/100M Base-T LAN Ethernet ports (1) 10/100M Base-T WAN Ethernet port
- MaitinimasDC 12V-54V, 24V Passive PoE, 802.3af/at *DC 12V only supplies power to the R3
- PoE prievado įvestisLAN1: 24V Passive PoE,802.3af/at
- PoE prievado išvestisWAN、LAN3、LAN2:24V or 48V passive PoE
- Maks. energijos sąnaudos6W(Excludes PoE output )
- Klavišaireset button (long press for 8 seconds to restore the factory default configuration)
- Dydis235mm×160mm×32mm
- AplinkosaugaOperating Temperature: 0°C~40°C
- Darbinis režimasRouter Mode, AP Mode
- Interneto ryšio tipasStatic IP, DHCP, PPPoE Dial-Up
- Tinklo saugaGuest Wi-Fi; Hide SSID; Wi-Fi Isolate Parental Control; IP/MAC binding Wireless Security: WPA-PSK/WPA2-PSK/WPA3-SAE
- Pažangios funkcijosMesh: Supports zero-configuration networking of multiple devices, and supports automatic switching between wired and wireless networking for multiple devices. Wi-Fi optimization: Wi-Fi roaming, channel adjustment, power adjustment Firewall: Forbid TCP/UDP flood attack Application: Port Forwarding; SD-LAN; Open VPN Software upgrade: Firmware upgrade online or Firmware upgradeable via browser. Diagnostics Utilities: Ping; IPV4 Traceroute; Nslookup
- Valdymas ir priežiūraSupport local management with web support remote management with Wi-Tek Cloud platform
