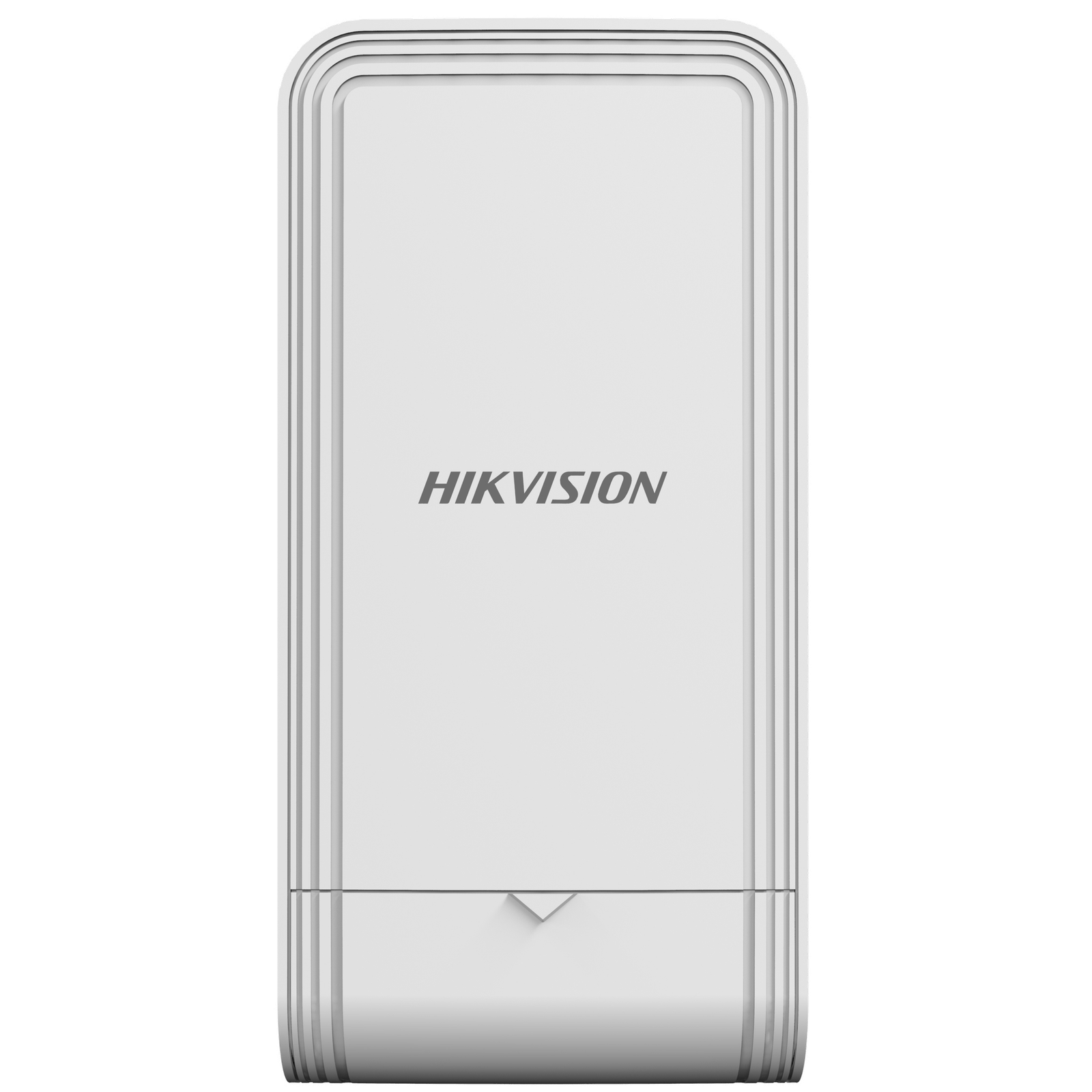

Belaidis LAN perdavimas Hikvision DS-3WF03C-5AC/O(V3) (5GHz, 867Mbps, 15km)
7,28€ / 12 mėn.
70,78€(Kaina be PVM)85,64€(Kaina su PVM)
| Visi LAN prievadai – gigabitiniai | |
| Palaikoma TDMA technologija | |
| Greitas sujungimas per DIP jungiklį | |
| Vizualizuotas topologijos valdymas | |
| Belaidžio perdavimo atstumas iki 15 km |
Neturime
Patvirtinimai
| Cheminių komponentų sertifikavimas | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No.1907/2006) |
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020); IC (ICES-003: Issue 7:2020); RCM (AS/NZS CISPR 32: 2015) |
| Radio | EN 301 893; EN 300 440; EN 62311; EN 301 489-3; EN 301 489-17; FCC Part 15.247 |
| Saugumas | UL (UL 60950-1); CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 62368-1: 2014+A11: 2017) |
Bendrieji duomenys
| Bendras svoris | 0.807 kg (1.779 lb) |
| Installation Mode | Pole mounting |
| Grynas svoris | 0.307 kg (0.677 lb) |
| Pakuotės Matmenys (P × A × G) | 132 mm × 228 mm × 91 mm (5.19″ × 8.97″ × 3.58″) |
| Pakuotėje | Wireless bridge × 1, power adapter (12 VDC, 1 A) × 1, 1000 MB PoE injector × 1, binding tape × 2, quick start guide × 1 |
| Packing Method | Single unit packing |
| Energijos suvartojimas | 3 W for typical (1-ch 2MP IPC), Max. 7.5 W |
| Produkto matmenys (P × A × G) | 92 mm × 187 mm × 58 mm (3.62″ × 7.36″ × 2.28″) |
| Laikymo drėgnumas | 5% to 95% (no condensation) |
| Laikymo temperatūra | -40°C to 85°C (-40°F to 185°F) |
| Darbinė drėgmė | 5% to 95% (no condensation) |
| Darbinė temperatūra | -30°C to 70°C (-22°F to 158°F) |
Hardware Parameter
| LED indikatorius | Power indicator, LAN indicator, signal intensity indicator |
| Port Numbers | 2 × Gigabit RJ45 ports |
| Energijos šaltinis | 12 VDC/1 A Passive PoE; 12 VDC, 1 A |
| Perkrovimas | Hardware resetting button |
Tinklo parametrai
| Networking Mode | Point to point: Support up to 4-ch IPC (2MP) in Max. 15 KM distance and Max. 20 Mbps bandwidth,Point to point: Support up to 40-ch IPC (2MP) in Max. 5 KM distance and Max. 200 Mbps bandwidth,Point to multi-point: Support up to 16-ch IPC (2MP) in Max. 5 KM distance and Max. 80 Mbps bandwidth within 30°, Max. 1 to 8 PTMP connection |
Programinės įrangos funkcijos
| Application Function | TDMA, DFS, TPC,IFM,IPM |
| Channel Selection | Auto/manual selection |
| Kanalo plotis | 20/40/80 MHz |
| Management Method | Web, HCP |
| Protokolai | NTP (network time synchronization), SADP (auto search for IP address), HTTPS (web management), SSH (debugging) |
| Security Mechanism | Wireless network name hidden |
| Security Mode | WPA2-PSK |
| Sistemos žurnalas | Syslog, control center information |
| Upgrade | Web, iVMS-4200 |
Belaidžio ryšio parametrai
| Antenna Angle | Beamwidth [3dB] (35°± 5°) |
| Antenos stiprinimas | 12 dBi |
| Max. Transmission Rate of Air Interface | ≤ 867 Mbps |
| Receiving Sensitivity | -60 ± 2 dBm@AC80 -MCS9; -86 ± 2 dBm@AC80 -MCS0 |
| Perdavimo galia | 27 dBm (Note: Transmitting power may vary with local regulations.) |
| Belaidžio ryšio standartas | IEEE 802.11/a/n/ac |
| Working Frequency Band | 5150 to 5250 MHz5250 to 5350 MHz (DFS)5470 to 5725 MHz (DFS)5725 to 5850 MHz(Note: Available channel may vary with local regulations.) |
| Svoris | 0,434 kg |
|---|---|
| Gamintojas |
