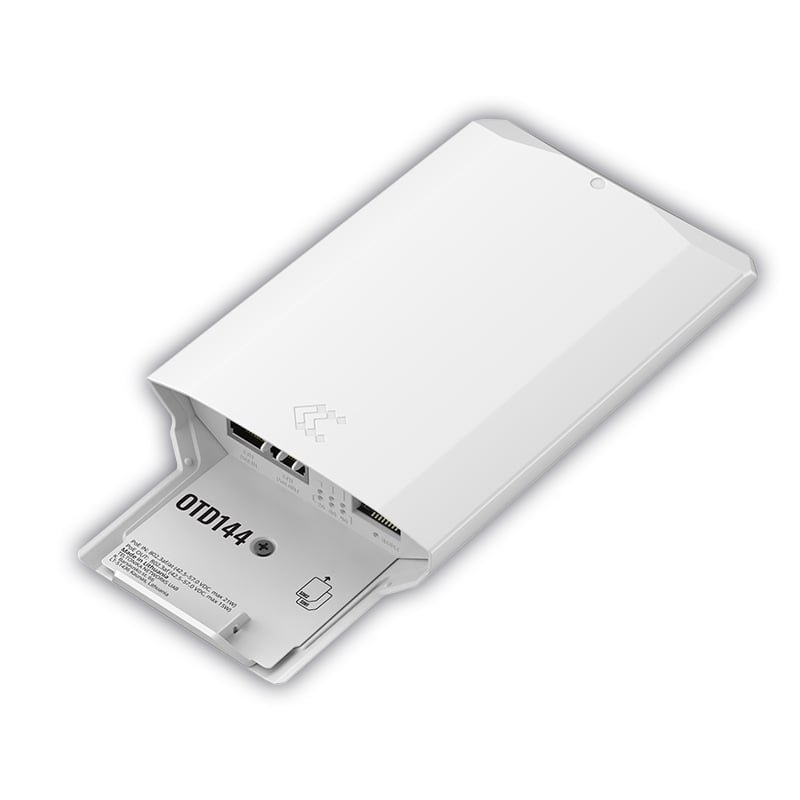

Belaidis LAN maršrutizatorius Teltonika OTD144
7,73€ / 24 mėn.
135,45€(Kaina be PVM)163,89€(Kaina su PVM)
| Tipas: belaidis LAN maršrutizatorius | |
| Prekės ženklas: Teltonika | |
| Modelis: OTD144 | |
| Mobilus ryšys: 4G LTE (LTE Cat4) | |
| Ethernet: 2 × RJ45 10/100 Mbps | |
| PoE: PoE In / PoE Out (21 W) | |
| Dual SIM palaikymas | |
| Valdymas: SNMP, SSH, RMS | |
| CPU: Mediatek MIPS 24KEc 580 MHz | |
| Atsparumo klasė: IP55 | |
| Darbinė temperatūra: -40…+75 °C | |
| Pramoninis |
Liko tik 1. Reikia daugiau? Susisiekite su mumis.
Bendra
| Mobile Module | 4G LTE up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL Mbps |
| 3GPP versija | Release 9 |
| SIM Switch | 2 SIM cards, auto-switch on weak signal, data/SMS limit, roaming, no network, network denied, connection fail, SIM idle protection |
| Status Parameters | IMSI, ICCID, operator details, signal strength (RSSI, SINR, RSRP, RSRQ), connection state, data stats, LAC, TAC, Cell ID, bands, etc. |
| SMS | Support for status, config, Email ↔ SMS, scheduled SMS, autoreply, HTTP gateway, SMPP |
| USSD Support | Supports sending and reading USSD messages |
| Block/Allow List | Operator block/allow list (country/operator-based) |
| Band Management | Band lock and used band status display |
| SIM PIN Management | Set, change, or disable SIM PIN |
| APN | Auto APN |
| Bridge Mode | Direct connection between mobile ISP and LAN device |
| Perleidimas | Mobile WAN IP assignment to LAN device |
| Belaidžio ryšio režimas | 802.11b/g/n (Wi-Fi 4), AP, STA |
| „Wi-Fi“ saugumas | WPA2-Enterprise, WPA2-PSK, WPA3, OWE, TKIP, AES, EAP-TLS, 802.11w, MAC-based control |
| SSID/ESSID Options | SSID stealth, MAC access control |
| Wi-Fi User Limit | Up to 100 simultaneous users |
| Belaidžio ryšio privalumai | Mesh (802.11s), Fast roaming (802.11r), Radio Resource Measurement (802.11k), BSS management (802.11v), client isolation, WMM |
| Wireless MAC Filter | Allowlist, Blocklist |
| Wireless QR Code | Auto-join by scanning QR |
| TravelMate | Forwards hotspot landing page to next connected device |
| LAN | 2 x 10/100 Mbps ETH ports (configurable as WAN), IEEE 802.3/3u/3az, auto MDI/MDIX |
| Maršruto parinkimas | Static, BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP, policy-based routing |
| Tinklo protokolai | TCP, UDP, IPv4/IPv6, ICMP, NTP, DNS, HTTP(S), FTP, SMTP, ARP, VRRP, PPP(oE), UPNP, SSH, Telnet, SNMP, MQTT, WOL, VXLAN |
| VoIP Passthrough | H.323 and SIP-ALG NAT helpers |
| Connection Monitoring | Ping/Wget/LCP/ICMP-based reboot & link check |
| Firewall Features | Port forwarding, traffic rules, TTL customization, custom rules |
| Firewall Status Page | View rules, stats, counters |
| Prievadų valdymas | View, enable/disable, auto-config, speed control |
| Network Topology | Visual network map |
| DHCP Support | Static/dynamic IP, relay, leases with MAC wildcards |
| QoS / SQM | Traffic priority by source, protocol, service, WMM, 802.11e |
| DDNS | >77 providers supported, manual config possible |
| DNS per HTTPS | Secure DNS resolution via DoH proxy |
| Network Backup | VRRP, Wired failover options |
| Viešosios interneto prieigos taškas | Captive portal, Radius, SMS/SSO auth, themes, walled garden, URL params, group/user mgmt |
| SSHFS | Remote file system mount over SSH |
| Eismo valdymas | Real-time monitoring, usage history, signal charts |
| Autentifikavimas | Pre-shared key, X.509 certs, TACACS+, RADIUS (internal/external), IP/login blocking, time-based login block |
| Firewall Config | Preconfigured via WebUI, CLI custom firewall, DMZ, NAT, NAT64 |
| Attack Prevention | DDOS (SYN flood, SSH, HTTP attacks), port scan detection (SYN-FIN, X-mas, NULL, etc.) |
| VLAN | Port/tag-based VLAN |
| Mobile Quota Control | Data limit, period/start time, warning, phone number tracking |
| WEB Filter | Block list & allow list for content control |
| Access Control | Flexible access to SSH, Web, CLI, Telnet |
| Certificate Manager | Create CA/server/client certs, Let’s Encrypt, SCEP support |
| 802.1x Support | Port-based network access control |
| OpenVPN | Multiple clients & server support, 27 encryption methods |
| OpenVPN šifravimas | All standard AES, DES, RC2, BF, CAST5, GCM, CFB, OFB, etc. |
| IPsec | XFRM, IKEv1/v2, 14 encryption modes incl. AES-GCM, DES, 3DES |
| GRE | GRE tunnel & GRE over IPsec support |
| PPTP/L2TP | Client/server, L2TPv3, L2TP over IPsec |
| Stunnel | Add TLS to any app without code change |
| DMVPN | Supports Phases 2/3, dual hub |
| SSTP | Client instance support |
| ZeroTier | Client support |
| WireGuard | Client and server support |
| Tinc | Tunneling with encryption, auth, compression |
| OPC UA | Client and Server, TCP support |
| Modbus MQTT Gateway | MQTT <-> Modbus (read/write data via broker) |
| MODBUS Modes | Client, Server |
| MODBUS TCP | Custom register read/write to local files, extend functionality |
| MODBUS Formats | INT, UINT (8/16/32-bit), HEX, ASCII, float, byte order variants |
| Data to Server Protocols | HTTP(S), MQTT, Azure MQTT |
| Data to Server Capabilities | Extract from multiple sources/protocols, send to one server, support LUA scripting |
| DNP3 Modes | Station, Outstation |
| DNP3 Connection | TCP |
| DLMS/COSEM Mode | Client |
| DLMS Connection | TCP |
| API Support | Teltonika Web API (beta), configurable endpoints |
| Web UI | HTTP(S), FW updates, status, event logs, CLI, troubleshooting |
| FOTA | Firmware update from server, auto notifications |
| SSH Support | SSH v1/v2 |
| El. pašto įspėjimai | Status alerts for services |
| SMS Control | Status, config |
| Call Functions | Reboot, data toggle, output control, call timer |
| TR-069 Compatibility | OpenACS, GenieACS, AVSystem, etc. |
| MQTT | MQTT broker & publisher |
| SNMP Support | v1/v2/v3, trap, brute force protection |
| JSON-RPC | API over HTTP(S) |
| RMS | Teltonika Remote Management System |
| ThingWorx Monitoring | WAN, IP, operator name/type/signal |
| Cumulocity Monitoring | Model, firmware, SIM info, cell ID, reboot/firmware action |
| Azure IoT Hub | Parameter sync, direct method API, zero-touch provisioning |
| AWS IoT Core | Jobs-based API control, cloud interaction |
| Procesorius | Mediatek 580 MHz, MIPS 24KEc |
| RAM | 128 MB |
| FLASH Storage | 16 MB |
| Firmware Update Methods | Web UI, FOTA, RMS |
| Keep Settings | FW update without losing configuration |
| Gamyklinis atstatymas | Restore to manufacturer defaults |
| Firmware Customization | RutOS (OpenWRT), branding, UI/logo customization |
| Palaikomos kalbos | Bash, Lua, C/C++, Python, Java (via package) |
| SDK | SDK build environment provided |
| Package Manager | Install additional software |
| PoE In | 1 x PoE In, 802.3af/at |
| PoE išvestis | 1 x PoE Out, 802.3af Alternative B, Max 15 W |
| Maitinimo jungtis | RJ45 Socket |
| Įvesties įtampos diapazonas | 42.5–57.0 VDC, surge and polarity protection |
| Energijos suvartojimas | Idle < 2.5 W; Max < 6 W; PoE Max < 21 W |
| Ethernet Interfaces | 2 x RJ45, 10/100 Mbps |
| Būsenos LED indikatoriai | 3 x Mobile type, 3 x signal strength, 4 x ETH status |
| SIM Slots | 2 x Mini SIM (2FF), 1.8/3 V |
| Antenos | 2 x Internal |
| Antenna Specs | 2 x 698-960/1710-2690 MHz, 50 Ω, VSWR < 3, gain < 4.5 dBi |
| Reset Options | Reboot, user default, full factory reset |
| Korpuso medžiaga | Plastic (PC+ASA) |
| Matmenys | 110 x 49.30 x 235 mm |
| Svoris | 315 g |
| Tvirtinimo parinktys | Bracket for wall or pole |
| Darbinė temperatūra | -40 °C to 75 °C |
| Darbo drėgmė | 10% to 90% non-condensing |
| IP klasė | IP55 |
| Reguliavimas | CE, UKCA, CB, RCM, WEEE, EAC, UCRF |
