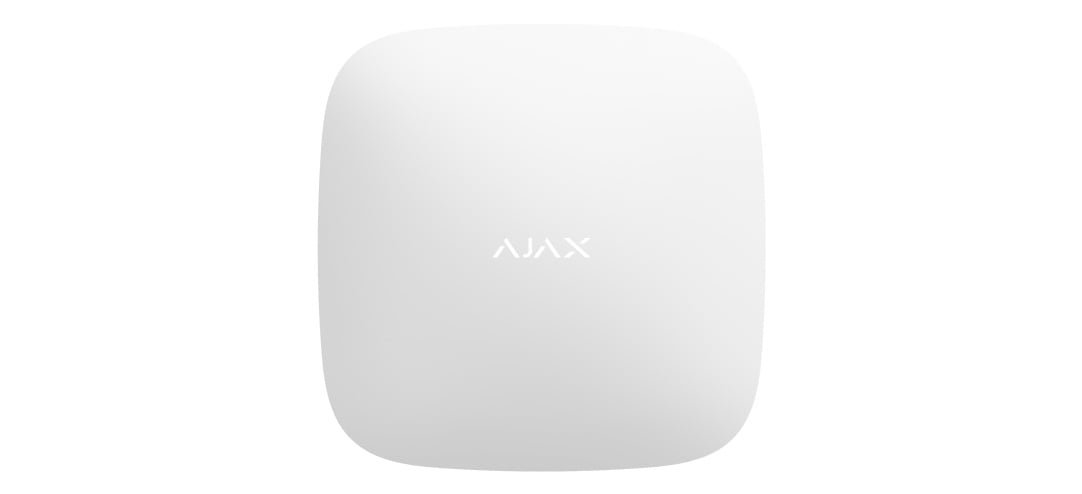

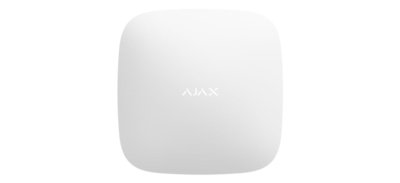

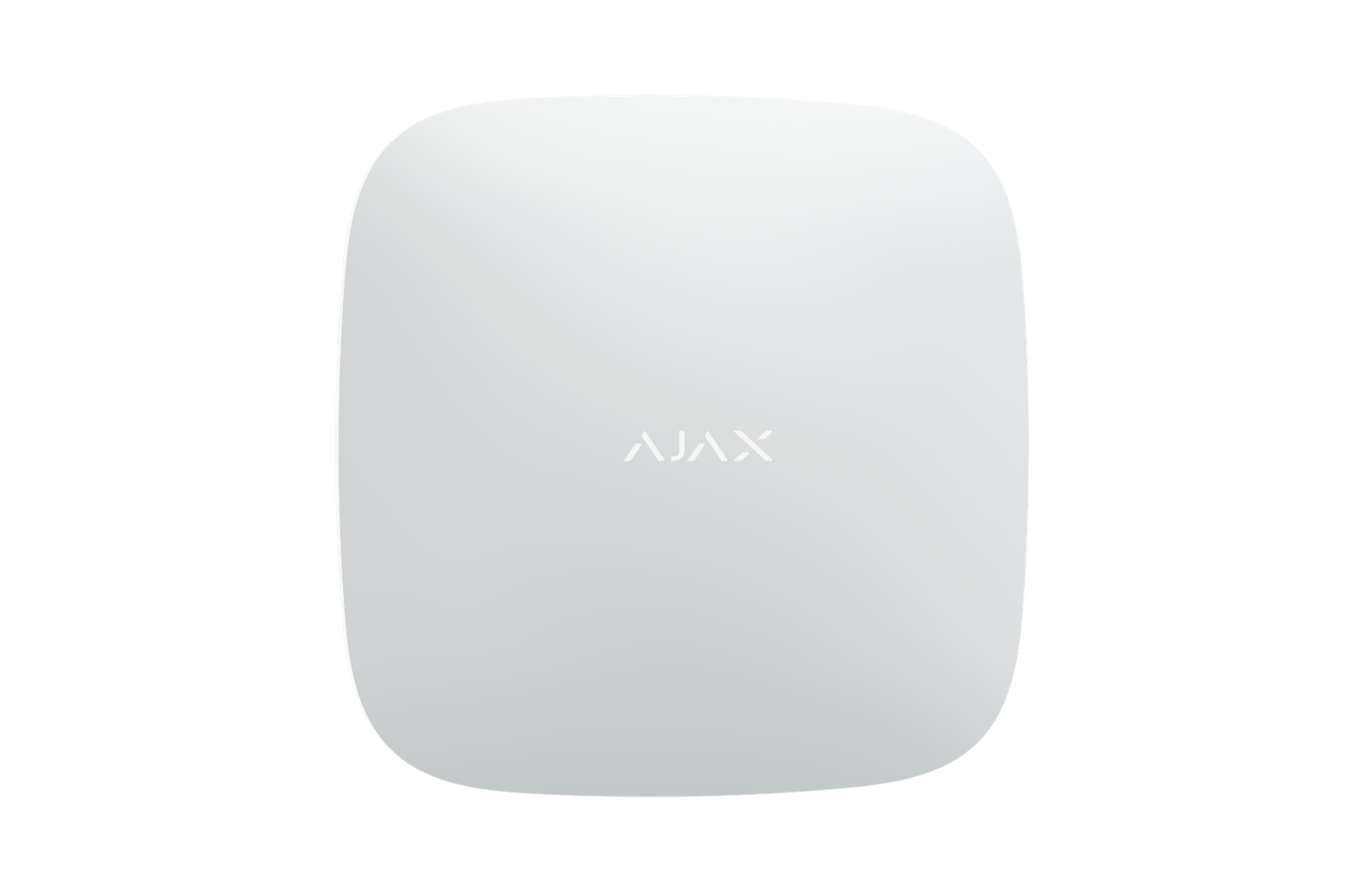

Belaidis Ajax ryšio kartotuvas REX 38205.37.WH1 (balta)

8,16€ / 24 mėn.

142,46€(Kaina be PVM)172,38€(Kaina su PVM)

Tipas: Belaidis ryšio kartotuvas
Modelis: Ajax ReX
Spalva: Balta
Įrenginių palaikymas: iki 5 vienoje sistemoje
Veikimo atstumas: iki 1800 m
Atsarginės baterijos veikimo trukmė: iki 35 val.
Prekės kodas: 38205.37.WH1

Liko tik 1. Reikia daugiau? Susisiekite su mumis.

Gamintojas: AJAX SKU: AJREXW

Prijungtų ReX Jeweller įrenginių skaičius prie valdymo pulto	up to 5, Depends on the hub model.
Prijungtų įrenginių prie ReX Jeweller skaičius	up to 199, Depends on the hub model. Only Hub 2 Plus Jeweller and Hub 2 (4G) Jeweller are under certification by UL.

Jeweller ryšio technologija	Proprietary wireless communication technology to transmit commands, alarms, and events., Key features:, Two-way communication., Advanced anti-sabotage., Block encryption featuring a dynamic key., Instant notifications., Remote control and configuration in Ajax apps., Learn more
Dažnių juostos	866.0–866.5 MHz 868.0–868.6 MHz 868.7–869.2 MHz 905.0–926.5 MHz* 915.85–926.5 MHz 921.0–922.0 MHz, Depends on the sales region., * Certified according to UL/ULC standards.
Maksimali efektyvi spinduliuojama galia (ERP)	up to 25 mW, Automatic power control to reduce power consumption and radio interference.
Radijo signalo moduliacija	GFSK
Radijo ryšio veikimo nuotolis	up to 5,900 ft, Between the range extender and a hub in an open space., Calculate radio communication range at the facility
Šifruotas ryšys	All stored and transmitted data are protected by block encryption featuring a dynamic key.
Dažnių šuoliai	To prevent radio interference and jamming., Learn more

Pavojaus signalo pristatymo laikas į valdymo pultą

0.3 s

Sabotažo signalas	Notifications on attempts to detach the device from the surface or remove it from the mounting panel., Learn more
Apsauga nuo klastojimo	device authentication
Ryšio praradimo aptikimas	after 36 s, Detection time depends on the Jeweller or Jeweller/Fibra settings., Learn more

Pagrindinis	110–240 V, 50/60 Hz, Up to 6 W of mains power consumption.
Atsarginės kopijos	built-in backup battery Rechargeable Li-ion Polymer Battery XK 953562T 3.7 V⎓, 2 Ah, Calculated battery life:, Up to 24 hours of backup battery life when Ethernet is disabled., Up to 35 hours of backup battery life., Up to 4 hours of maximum time to recharge a backup battery of maximum capacity to 80% of its rated capacity., * From the backup battery after the loss of the main power supply., The range extender manufactured after October 7, 2022 , has a 3-pin battery. If the range extender was manufactured earlier, the battery can be a 2-pin or 3-pin one. To find out the battery type, contact Ajax Technical Support or check it manually., Learn more, Manufacturer Dongguan Lean Power, UL listed.
Tipas	type A
Ramioji įrenginio srovės sąnauda esant nominaliai įtampai	11.4 mA
Maksimali įrenginio srovės sąnauda esant nominaliai įtampai	14 mA
Maža baterijos įtampa	3.7 V⎓
Mažos baterijos atsigavimo įtampa	4.1 V⎓
Galutinė baterijos įtampa	3.6 V⎓, Device is switched off.
Minimali atsarginės baterijos energija įkrautoje būsenoje	100%
Alternatyva	12 V⎓, Connected via an alternative power supply unit * 12V PSU for Hub/Hub Plus/ReX which is sold separately ., Learn more, * Not evaluated by UL.

Matmenys	6.42″ × 6.42″ × 1.42″
Svoris	11.64 oz
Darbinė temperatūros riba	from 14 °F to 104 °F, Temperature range from 32 °F (0 °C) to 120 °F (+49 °C) is certified according to UL/ULC standards.
Drėgmė	up to 75%
Apsaugos klasė	IP20

Svoris	0,423 kg
Gamintojas	AJAX
