- Bendrieji duomenys

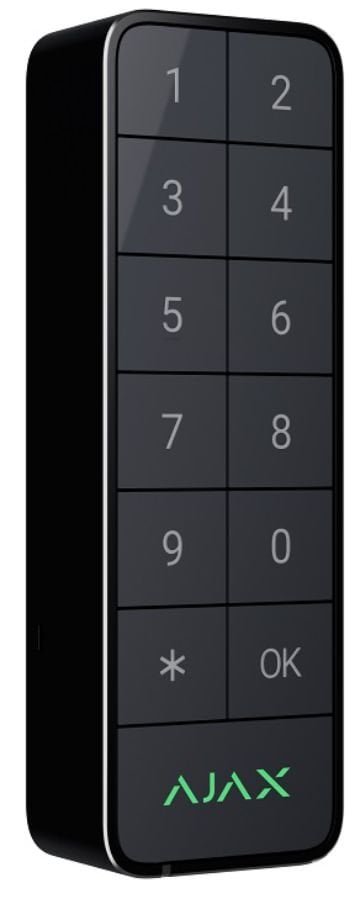

- Produkto pavadinimasAjax Superior KeyPad Outdoor Fibra
- TipasWired outdoor/indoor keypad with authentication via Pass, Tag, smartphones, and codes
- Authorization methodsPass/Tag (DESFire®), smartphones with BLE, personal/duress/unregistered codes
- TalpaUp to 50 Pass/Tag key fobs, up to 50 smartphones, up to 50 personal codes, 1 keypad code, up to 50 duress codes, up to 50 unregistered user codes
- Built-in buzzer60 dB (alarms, mode changes, chime, etc.)
- Papildomos funkcijosAutomation control with security mode change, bypass mode, keypad lock after multiple failed attempts, panic button
- Apsauga nuo sabotažoTamper alarm (2 tamper buttons), short-circuit protection, anti-spoofing authentication, IK08 impact protection (in progress), holding screw, panic button
- Ryšio technologijaFibra (wired, encrypted, up to 2,000 m with U/UTP cat.5 4×2×0.51 mm or 4×0.22 mm² cable)
- Užklausų intervalas12–300 s (adjustable via Ajax apps with admin rights)
- Maitinimo šaltinis7–30 V⎓, up to 0.6 W (from Fibra line)
- Montavimo būdasSmartBracket mounting panel, QR code pairing, on-site/remote setup
- Darbo temperatūra–25 °C to +60 °C (–13 °F to +140 °F)
- Darbo drėgmėUp to 80%
- Apsaugos klasėIP66 (outdoor-ready)
- Impact protectionIK08 (in progress)
- Matmenys137 × 45 × 27 mm (5.39″ × 1.77″ × 1.07″)
- Svoris160 g (5.6 oz)
- Galimos spalvosWhite, graphite, black
- SertifikataiEN 50131 (Grade 3, in progress), PD 6662:2017, SSF
- KomplektacijaSuperior KeyPad Outdoor Fibra, SmartBracket panel, installation kit, quick start guide
