Name: 8 kanalų DVR Hikvision iDS-7208HQHI-M1/XT
SKU: DVRIDS7208HQHIM1XT
Price: 207.39 EUR
Availability: InStock

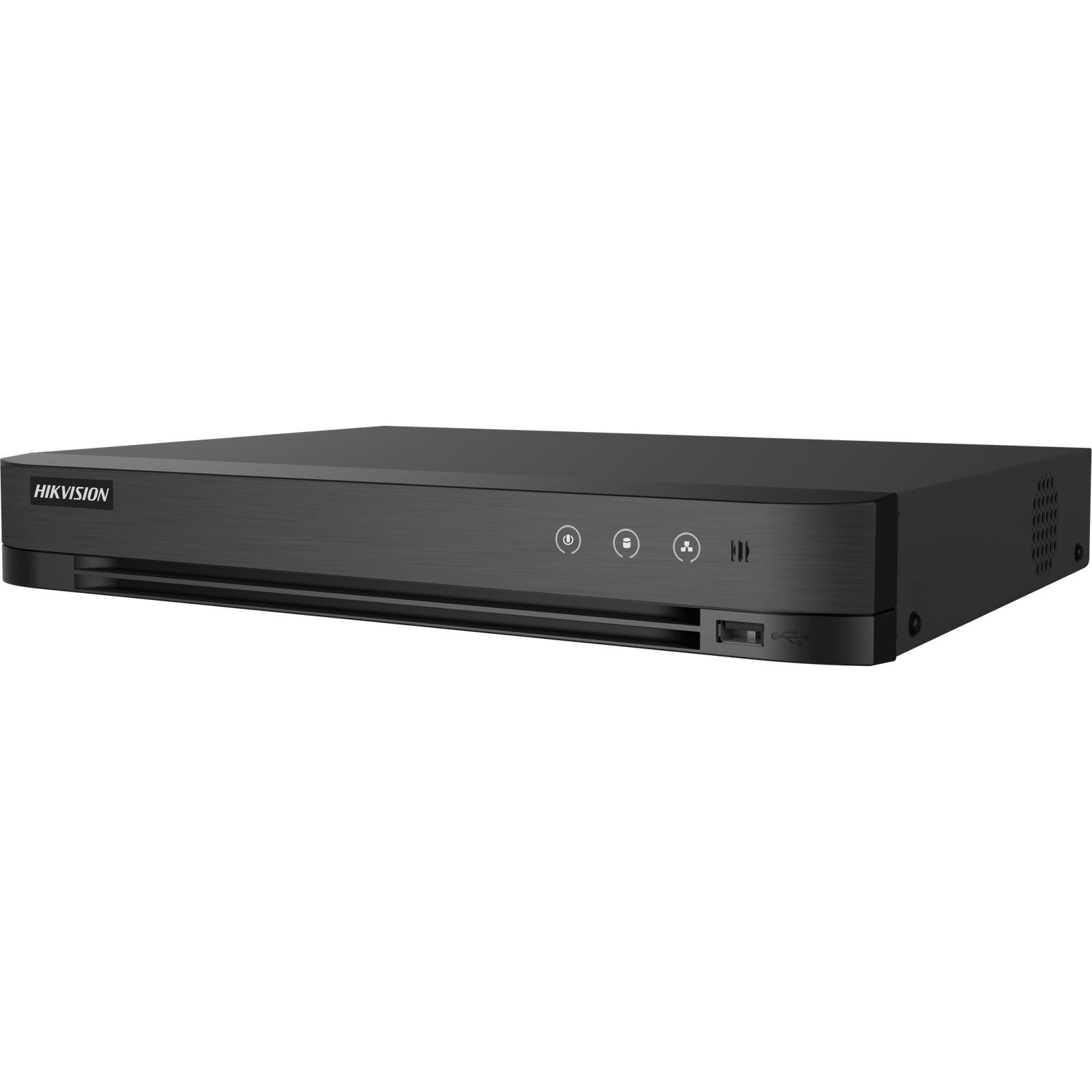

8 kanalų DVR Hikvision iDS-7208HQHI-M1/XT

171,40€(Kaina be PVM)207,39€(Kaina su PVM)

8 kanalai ir 1 HDD 1U AcuSense DVR
Palaiko 2 kanalų veido atpažinimą arba 4 kanalų išplėstinio modelio perimetro apsaugą, pagrįstą giluminio mokymosi algoritmu
Palaikykite HDTVI dvipusio garso technologiją
Efektyvi H.265 pro+ glaudinimo technologija
Kodavimo galimybė iki 3K/5M Lite @ 12 kadrų per sekundę
5 adaptyviai įvedami signalai (HDTVI/AHD/CVI/CVBS/IP)
Galima prijungti iki 12 tinklo kamerų
Palaikykite visus kanalus judesio aptikimo technologiją

Veido atpažinimas
Veido paveikslų bibliotekaUp to 16 face picture libraries
Face Picture Comparison (Captured from Camera)Face picture comparison, face picture search (2-ch face picture comparison alarm for HD analog camera)

Judesio aptikimas 2.0
Žmogaus / transporto priemonės analizė
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

Perimetro apsauga
Žmogaus / transporto priemonės analizė
Up to 4-ch

Note: Face picture comparison, motion detection 2.0 and perimeter protection cannot be enabled at the same time. Enable one function will make the other two unavailable.

Vaizdas ir garsas
IP vaizdo įrašų įvestis
2-ch (up to 10-ch)

Enhanced IP mode on:

4-ch (up to 12-ch), each up to 4 Mbps

Up to 6 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

Note: Enhanced IP mode might be conflicted with smart events (face picture comparison, motion detection 2.0 and perimeter protection) or other functions, please refer to the user manual for details.
Analoginė vaizdo įrašų įvestis
8-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
AHD Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
HDCVI Input5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
CVBS InputPAL/NTSC
HDMI išvestis
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

HDMI/VGA simultaneous output
VGA išvestis
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

HDMI/VGA simultaneous output
CVBS išvestis
1-ch, BNC (1.0 Vp-p, 75 Ω),

resolution: PAL: 704 × 576, NTSC: 704 × 480
Garso įvestis
1-ch (up to 8-ch is optional), RCA (2.0 Vp-p, 1 KΩ)

8-ch via coaxial cable

Note: The number of audio inputs and alarm in/out can be optional. The tag on the package will describe audio input and alarm in/out parameters. For example, “4A+8/4ALM” means your device has 4 audio inputs, 8 alarm inputs and 4 alarm outputs. If your device only has 1 audio input, the tag may not describe it.
Garso išvestis1-ch, RCA (Linear, 1 KΩ)
Dvipusis greitis1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Sinchroninis atkūrimas8-ch

Įrašymas
Vaizdo suspaudimasH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Užkodavimo raiška
When 1080p Lite mode is not enabled:

3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;

When 1080p Lite mode is enabled:

3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Kadrų dažnis
Main stream:

When 1080p Lite mode not enabled:

For 3K stream access: 3K lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

For 5 MP stream access: 5 MP lite@12fps;4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps

For 4 MP stream access: 4 MP lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

When 1080p Lite mode enabled:

3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

Sub-stream:

WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video Bitrate32 Kbps to 6 Mbps
Dvibugas srautasSupport main stream or sub stream
Srauto tipasVideo, Video & Audio
Garso suspaudimasG.711u
Garso bitų greitis64 Kbps

Internetas
Nuotolinis prisijungimas64
Total Bandwidth96 Mbps
ProtokolaiTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Tinklo sąsaja1, RJ45 10/100 Mbps self-adaptive Ethernet interface
Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface
