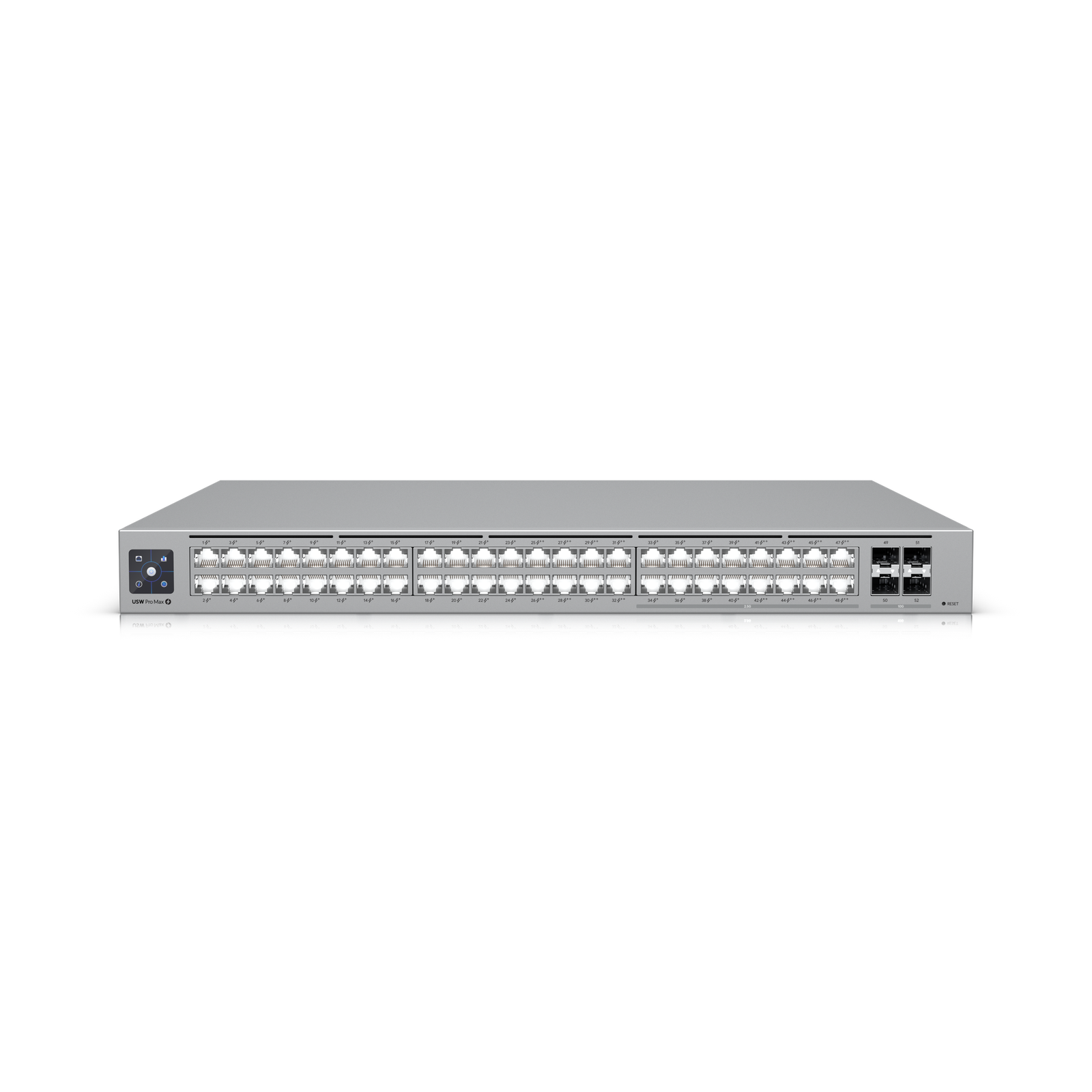

48 prievadų komutatorius Ubiquiti Unifi USW-Pro-Max-48-PoE-EU
1.316,31€(Kaina be PVM)1.592,73€(Kaina su PVM)
| Tipas: Komutatorius | |
| Prekės ženklas: Ubiquiti | |
| Modelis: Unifi USW-Pro-Max-48-PoE-EU | |
| Portų skaičius: 48 | |
| Portai: 32x GbE RJ45, 16x 1/2.5 GbE RJ45, 4x 10G SFP+ | |
| Perjungimo talpa: 224 Gbps | |
| Perdavimo greitis: 166.656 Mpps | |
| Galia: AC/DC 820W | |
| PoE galia: 720W | |
| Ekranas: 1.3″ lietimui jautrus | |
| Darbinė temperatūra: -5 iki 40°C |
Liko tik 1
Pagrindinis
| Dydis | 442.4 x 400 x 44 mm (17.4 x 15.7 x 1.7″) |
| Svoris | Without mounting brackets: 6.2 kg (13.7 lb), With mounting brackets: 6.3 kg (13.9 lb) |
| Korpuso medžiaga | SGCC steel |
| Valdymo sąsaja | Ethernet In-Band |
| Tinklo sąsaja | (32) GbE RJ45 ports, (16) 1/2.5 GbE RJ45 ports, (4) 10G SFP+ ports |
| PoE sąsaja | (32) PoE/PoE+ (Pins 1, 2+; 3, 6-), (16) 60W PoE++ (Pair A 1, 2+; 3, 6-), (Pair B 4, 5+; 7, 😎 |
| Bendra neblokuojama pralaidumo | 112 Gbps |
| Perjungimo ir persiuntimo pajėgumas | 224 Gbps |
| Persiuntimo greitis | 166.656 Mpps |
| Maitinimo metodas | (1) Universal input, 100—240V AC, 50/60 Hz, (1) USP-RPS DC input |
| Maitinimas | AC/DC, internal, 820W |
| Palaikoma įtampos diapazonas | 100—240V AC |
| Maksimalus energijos suvartojimas | 100W (Excluding PoE output) |
| Bendra prieinama PoE | 720W |
| Maksimali PoE galia per prievadą pagal PSE | PoE: 15.4W, PoE+: 30W, PoE++: 60W |
| Įtampos diapazonas PoE režime | PoE: 44—57V, PoE+: 50—57V |
| LCM ekranas | (1) 1.3″ touchscreen |
| Mygtukas | Factory reset |
| Darbinė aplinkos temperatūra | -5 to 40° C (23 to 104° F) |
| Aplinkos drėgmė | 10 to 90% noncondensing |
| Sertifikatai | CE, FCC, IC |
| Jungimo funkcijos | Layer 2 features: IGMP snooping, STP / RSTP with priorities and port-level disable, Port isolation, Storm control, Voice VLAN, Port mirroring, LACP port aggregation, Multicast/broadcast rate limiting, MAC address blocking, Flow control, 802.1X control, Jumbo frames, Proprietary loop protection, DHCP snooping/guarding, Egress rate limit, LLDP-MED, Port restricted by MAC, Device isolation with ACLs |
| Layer 3 funkcijos | DHCP for locally-managed networks, DHCP relay, Inter-VLAN routing between networks on same switch, Static routing between local networks, Network isolation with ACLs |
| Etherlighting™ | Ethernet: Locating, Speed/link, Native VLAN/network, SFP+: Locating, Speed/link, Native VLAN/network |
| Svoris | 6,7 kg |
|---|---|
| Gamintojas |
