4 prievadų, 4 PoE pramoninis komutatorius UTEPO UTP7204E-POE-A1

Model

UTP7204E-PoE-A1

Downstream Ports

4* 10/100Base-TX

Uplink Ports

1*100Mbps SFP Port and 1*10/100Base-TX

Network Standard

IEEE802.3 、IEEE802.3u、EEE802.3 X

Switch Capacity

1.5Gbps

Throughput

0.9Mpps

Switch Processing Scheme

Store and Forward

Memory Buffer

512k

MAC Table

2K

PoE Standard

802.3af/at

PsE Type

End-span

Power Pin Assignment

1/2(+)，3/6(-)

PoE Power Output

44~57V DC , 30 watts max

PoE Budge

60 watts max

Lightning protection

6KV Execute：IEC61000-4-5

ESD

6KV Contact discharge

8KV Air discharge

Execute：IEC61000-4-2

Power Supply

DC 48~57V

Power Dissipation

＜5W

Work temperature

-40℃~75℃

Storage temperature

-40℃~85℃

Humidity (Non-condensing)

5%-95%

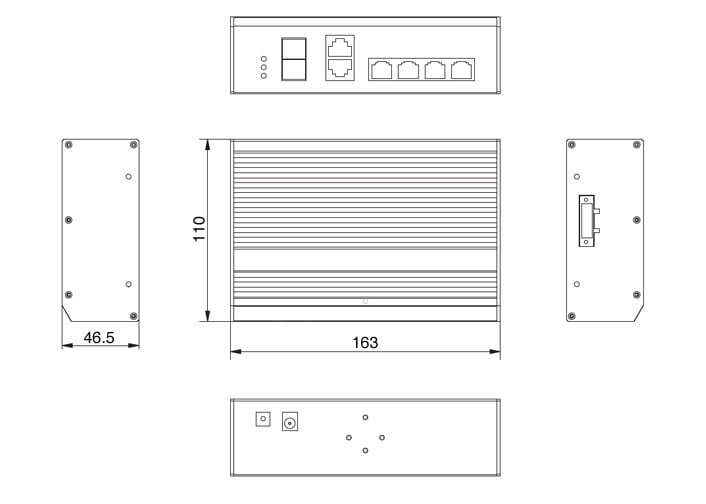

Dimension（L×W×H）

159mm×110mm×46mm

Weight

530g

Regulator

CE、FCC、ROHS
