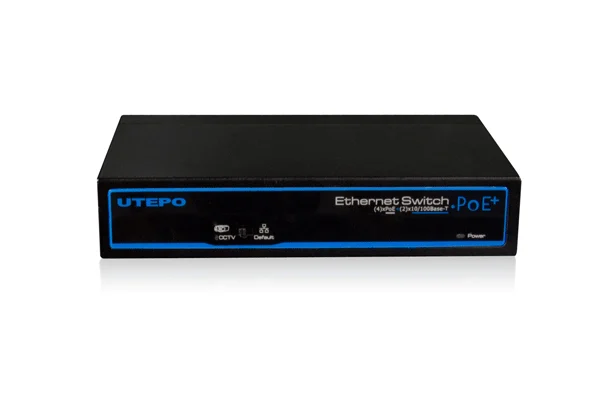

4 prievadų, 4 PoE komutatorius UTEPO UTP3-SW04-TP60

Power Supply

Power Adaptor

Voltage Range

DC 48V～54V

Power Consumption

60W

Speed

1~4 port: Default: 10/100Mbps; CCTV: 10Mbps; UPLINK: 100Mbps

Transmission Distance

1~4 Ports: 0～100m (Default),CCTV: 250m,Uplink: 100m

Ethernet Standard

IEEE 802.3/802.3u/IEEE802.3 af/IEEE802.3at

Backplane

1.5G

Packet Forwarding Rate

0.89Mbps

MAC

2K

Power Light

1pcs (Red)

Ethernet Port Light

2pcs (Yellow& Green) on RJ45, Yellow Indicates PoE, Green Indicates Link/Act

Surveillance Mode light

1pcs(Green), Green Indicates CCTV Mode is initiated

EFT

Level 2   Per: IEC6 1 000-4-4

ESD

Level 3   Per: IEC6 1 000-4-2

Operation Temperature

0℃～55℃

Storage Temperature

-40℃～85℃

Humidity(non-condensing)

0～95%

Dimensions(LxWxH)

135mm×85.6mm×27mm

Color

Black

Weight

315g
