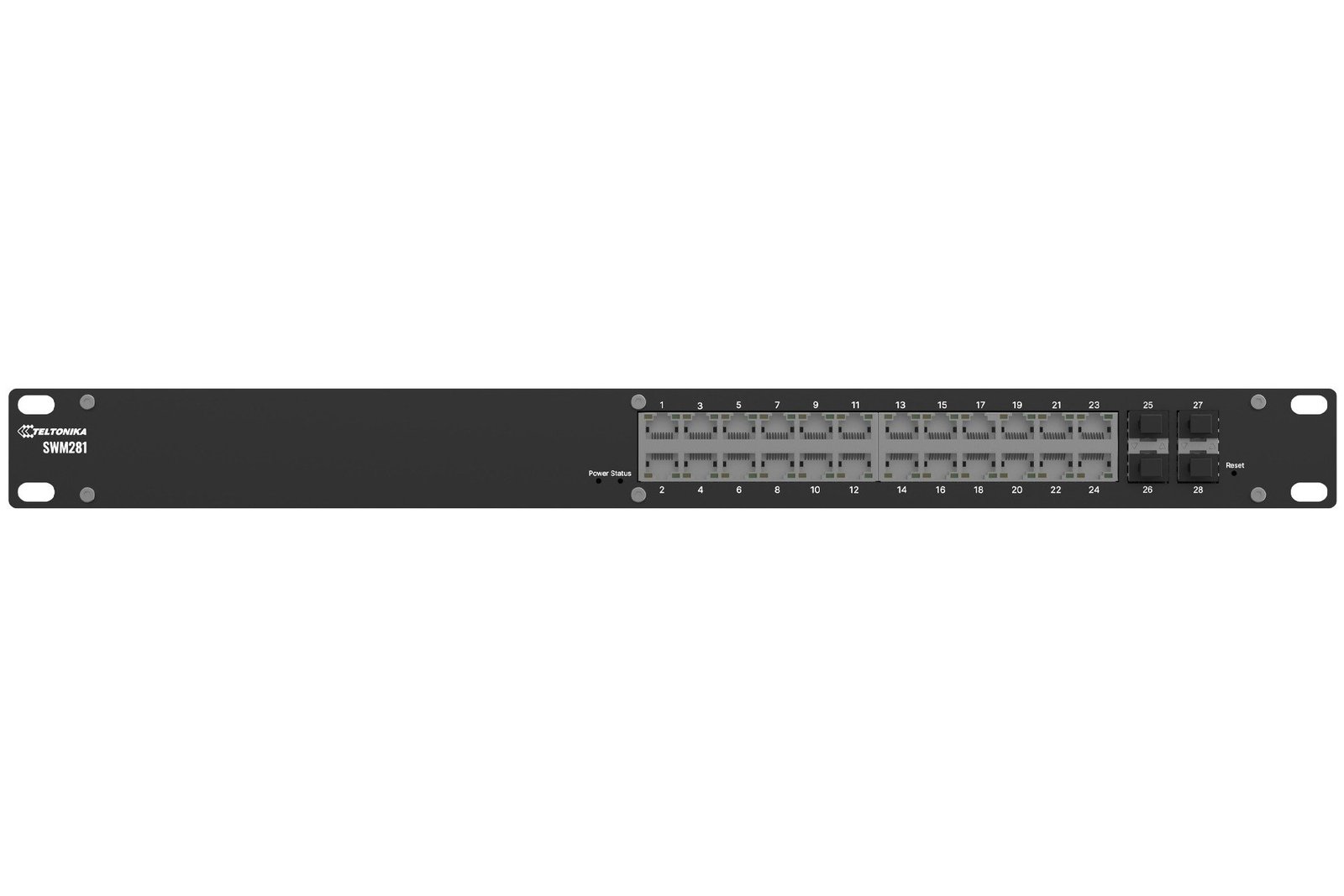

24 prievadų valdomas komutatorius Teltonika SWM281
11,09€ / 24 mėn.
189,49€(Kaina be PVM)229,28€(Kaina su PVM)
| Tipas: Valdomas komutatorius | |
| Modelis: Teltonika SWM281 (SWM281000200) | |
| Prievadai: 24 × LAN 1G, 4 × SFP 1G | |
| Komutacijos pajėgumas: 56 Gbps | |
| Perjungimo sparta: 83,33 Mpps | |
| Paketų buferis: 512 KB | |
| MAC adresų lentelė: 8K | |
| Lygiai: L2+ / L3 funkcijos | |
| Protokolai: STP / RSTP | |
| Maitinimas: 100–240 V AC | |
| Apsaugos klasė: IP30 |
Neturime
Bendrieji duomenys
| Produkto pavadinimas | Teltonika SWM281 |
| Tipas | Layer 2+ Managed Industrial Ethernet Switch |
| Ethernet prievadai | 24 × RJ45, 10/100/1000 Mbps, auto MDI/MDIX |
| Fiber ports | 4 × SFP |
| PoE palaikymas | Not available (non-PoE model) |
| CPU | Realtek, single core, 500 MHz, MIPS-4KEc |
| RAM | 128 MB DDR3 |
| Atmintis | 16 MB flash |
| Operacinė sistema | TSWOS (OpenWrt-based Linux OS) |
| Našumas | Non-blocking bandwidth 56 Gbps, forwarding rate 83.33 Mpps |
| MAC adresų skaičius | 8,000 entries |
| Paketų buferis | 512 KB |
| Jumbo frame palaikymas | Up to 10,000 bytes |
| Industrial protocols | Profinet Class B (optional), EtherNet/IP, SNMP v2/v3, LLDP |
| Network features | 802.1Q VLAN, 802.1p CoS, 802.1x access control, STP/RSTP, loop protection, DHCP server/client, dynamic routing (BGP, OSPF v2, RIP, EIGRP), static IPv4/IPv6 routing |
| QoS features | Port/DSCP/802.1p/TOS priority, rate limiting, storm control, port-based traffic shaping, scheduling (SP/WFQ/WRR) |
| Saugumas | Port-based access control, MAC filtering, Radius/TACACS+, IP login block, PAM preshared key authentication |
| Diagnostics | Cable diagnostic, ping, traceroute, nslookup |
| API | Teltonika Web API (beta) for integration and automation |
| Maitinimo įvestis | AC 100–240 V, 50/60 Hz (C14 connector) |
| Energijos suvartojimas | Idle 5.5 W / Max 20 W |
| Korpuso medžiaga | Anodized aluminum housing and panels |
| Matmenys | 483 × 44 × 234 mm |
| Svoris | 1.853 kg |
| Montavimas | Rack mounting kit |
| Darbo temperatūra | 0 °C to +50 °C |
| Darbo drėgmė | 10–90% non-condensing |
| Ingress protection | IP30 |
| Būsenos LED indikatoriai | 1 × Power, 24 × ETH activity, 4 × SFP, 1 × Status |
| Sertifikatai | CE, UKCA, CB, RCM, FCC, IC |
| Komplektacija | SWM281 switch, Quick Start Guide, packaging box (Profinet option available as SWM281000001) |
| Gamintojas |
|---|
