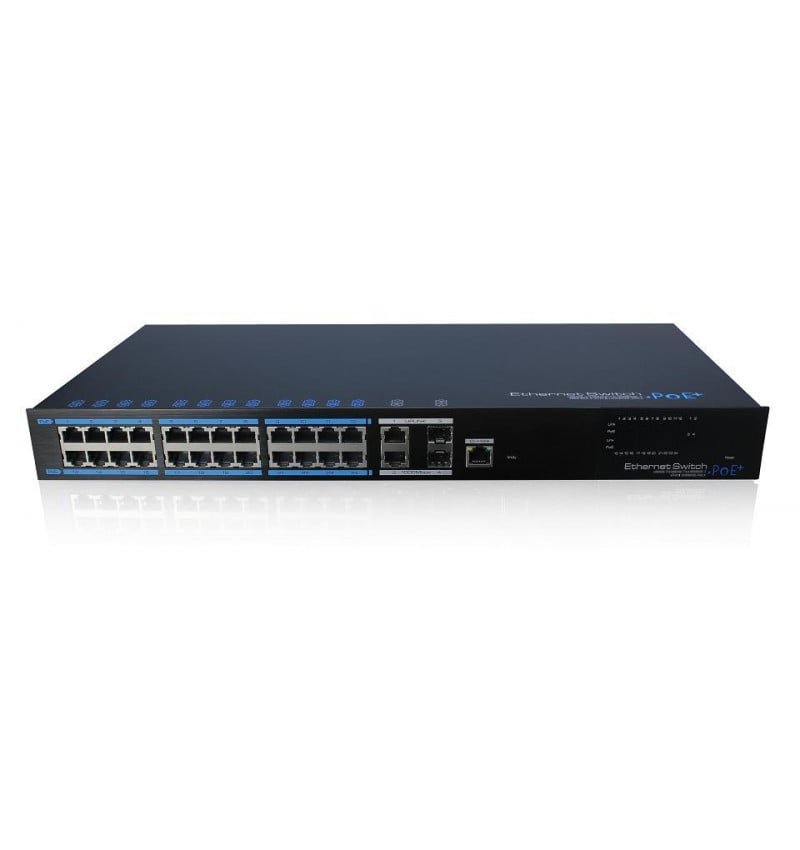

24 prievadų, 24 PoE komutatorius UTEPO UTP7224E-POE-L2 (valdomas)

Model

UTP7224E-PoE-L2

Downstream Ports

24* 10/100Base-TX (PoE)

Uplink Ports

2*1000Mbps SFP Port and 2*10/100/1000Base-T

Network Standard

IEEE802.3 、IEEE802.3u、IEEE802.3ab、IEEE802.3z、IEEE802.3X、 IEEE 802.1Q IEEE 802.1p IEEE 802.3ad 、 IEEE 802.1D、IEEE 802.1X

Switch Capacity

12.8Gbps

Throughput

9.52Mpps

Switch Processing Scheme

Store and Forward

Memory Buffer

12M

MAC Table

16K

PoE Standard

802.3af/at(PSE)

PsE Type

End-span

Power Pin Assignment

1/2(+)，3/6(-)

PoE Power Output

54V DC , 30 watts max

PoE Budge

390 watts max

Lightning protection

6KV Execute：IEC61000-4-5

ESD

6KV Contact discharge

8KV Air discharge

Execute：IEC61000-4-2

Power Supply

100~240V AC；50/60Hz

Power Dissipation

＜420W(Including PoE)

Work temperature

-10℃~50℃

Storage temperature

-40℃~85℃

Humidity(Non-condensin)

5%-95%

Dimension（L×W×H）

442mm×255mm×44.5mm

Weight

3.73kg

Regulator

CE、FCC、ROHS
